B5-63CS - 0.31" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

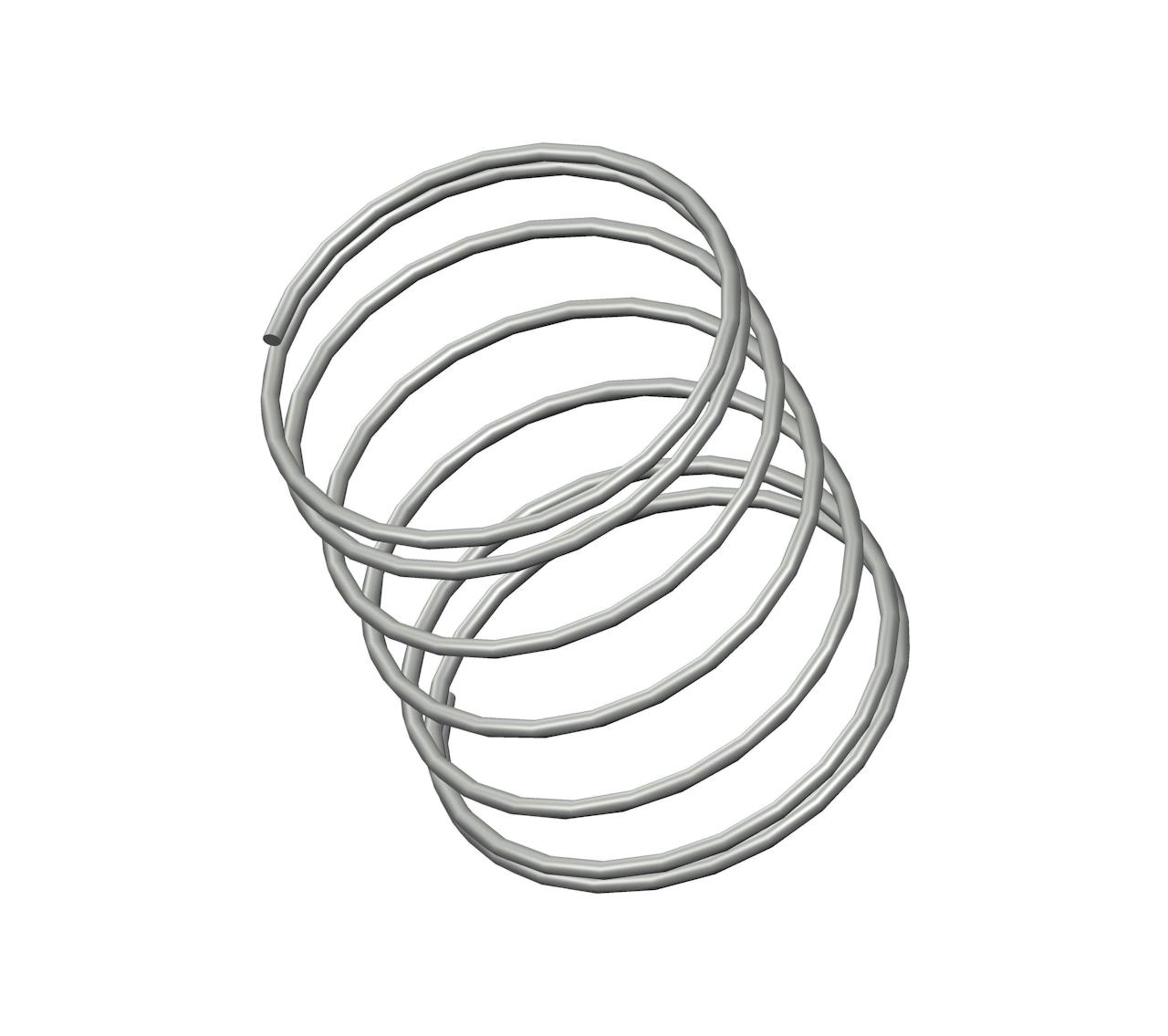

Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.266", and an I.D. of 0.246".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B5-63 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.31 in |
| Inside Diameter | 0.246 in |
| Material | Music Wire |
| Outside Diameter | 0.266 in |
| Part Type | Standard |
| Rate | 0.17 lbs/in |
| SKU | B5-63CS |
| Solid Length | 0.08 in |
| Suggested Max Deflection | 0.23 in |
| Suggested Max Load | 0.04 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.01 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B5-63 |
| Ends | Closed |
| Finish | None |
| Free Length | 7.87 mm |
| Inside Diameter | 6.25 mm |
| Material | Music Wire |
| Outside Diameter | 6.76 mm |
| Part Type | Standard |
| Rate | 0.03 N/mm |
| SKU | B5-63CS |
| Solid Length | 2.03 mm |
| Suggested Max Deflection | 5.84 mm |
| Suggested Max Load | 0.18 N |
| Total Coils | 7 |
| Wire Diameter | 0.25 mm |
The compression spring B5-63CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B5-63 compression spring design exhibits exceptional tensile strength and resilience.
The B5-63 design is manufactured with a free length of 0.31", with an outer diameter of 0.266", an inner diameter of 0.246", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.17 lbs/in.
The B5-63CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B5-63 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B5-63 design is manufactured with a free length of 0.31", with an outer diameter of 0.266", an inner diameter of 0.246", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.17 lbs/in.
The B5-63CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B5-63 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
