B5-46CS - 1.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

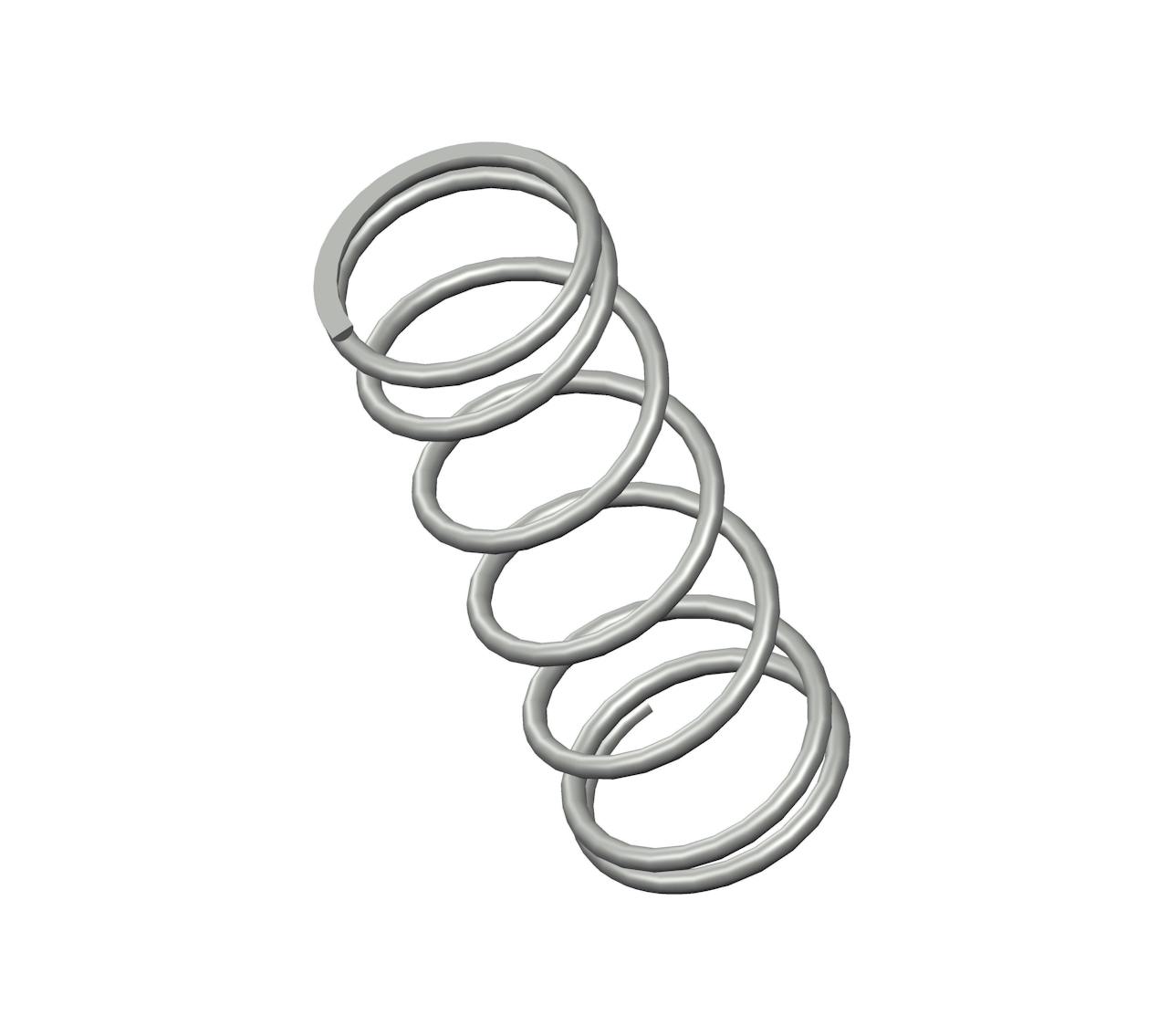

Compression spring manufactured from spring steel with 7.25 coils and closed & ground ends. This spring features an O.D. of 0.531", and an I.D. of 0.443".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B5-46 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.443 in |
| Material | Spring Steel |
| Outside Diameter | 0.531 in |
| Part Type | Standard |
| Rate | 8.9 lbs/in |
| SKU | B5-46CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.7 in |
| Suggested Max Load | 6.2 lbf |
| Total Coils | 7.25 |
| Wire Diameter | 0.044 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B5-46 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 11.25 mm |
| Material | Spring Steel |
| Outside Diameter | 13.49 mm |
| Part Type | Standard |
| Rate | 1.56 N/mm |
| SKU | B5-46CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 17.78 mm |
| Suggested Max Load | 27.58 N |
| Total Coils | 7.25 |
| Wire Diameter | 1.12 mm |
The compression spring B5-46CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B5-46 compression spring design exhibits exceptional tensile strength and resilience.
The B5-46 design is manufactured with a free length of 1.5", with an outer diameter of 0.531", an inner diameter of 0.443", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.9 lbs/in.
The B5-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B5-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B5-46 design is manufactured with a free length of 1.5", with an outer diameter of 0.531", an inner diameter of 0.443", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.9 lbs/in.
The B5-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B5-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
