B4-22CS - 0.53" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

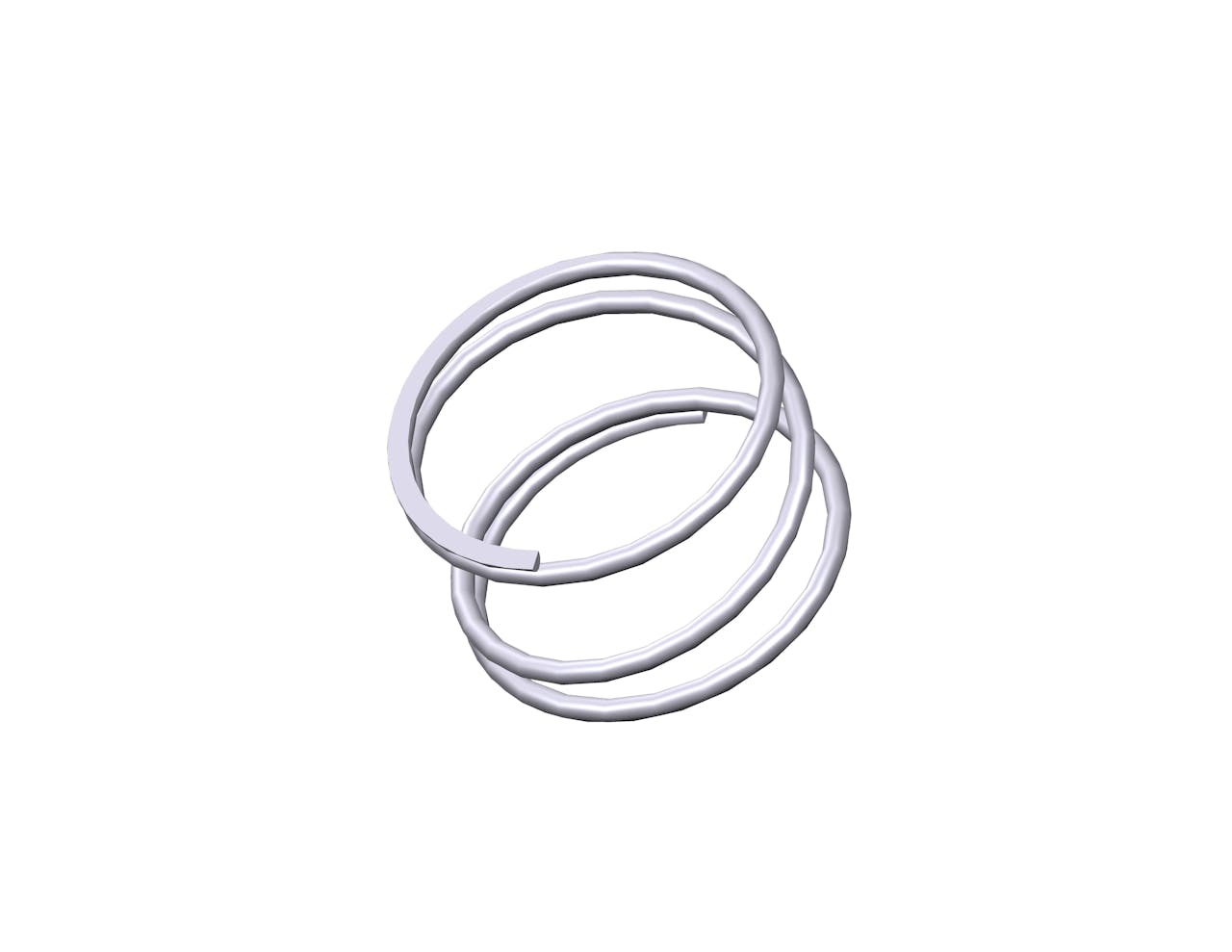

Compression spring manufactured from spring steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 0.859", and an I.D. of 0.759".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B4-22
Ends Closed & Ground
Finish None
Free Length 0.53 in
Inside Diameter 0.759 in
Material Spring Steel
Outside Diameter 0.859 in
Part Type Standard
Rate 11 lbs/in
SKU B4-22CS
Solid Length 0.18 in
Suggested Max Deflection 0.36 in
Suggested Max Load 4 lbf
Total Coils 3.5
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B4-22
Ends Closed & Ground
Finish None
Free Length 13.46 mm
Inside Diameter 19.28 mm
Material Spring Steel
Outside Diameter 21.82 mm
Part Type Standard
Rate 1.93 N/mm
SKU B4-22CS
Solid Length 4.57 mm
Suggested Max Deflection 9.14 mm
Suggested Max Load 17.79 N
Total Coils 3.5
Wire Diameter 1.27 mm
The B4-22 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B4-22CS compression spring is designed with a free length of 2.5" total of 29.3 coils, and a rate of 5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B4-22 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
