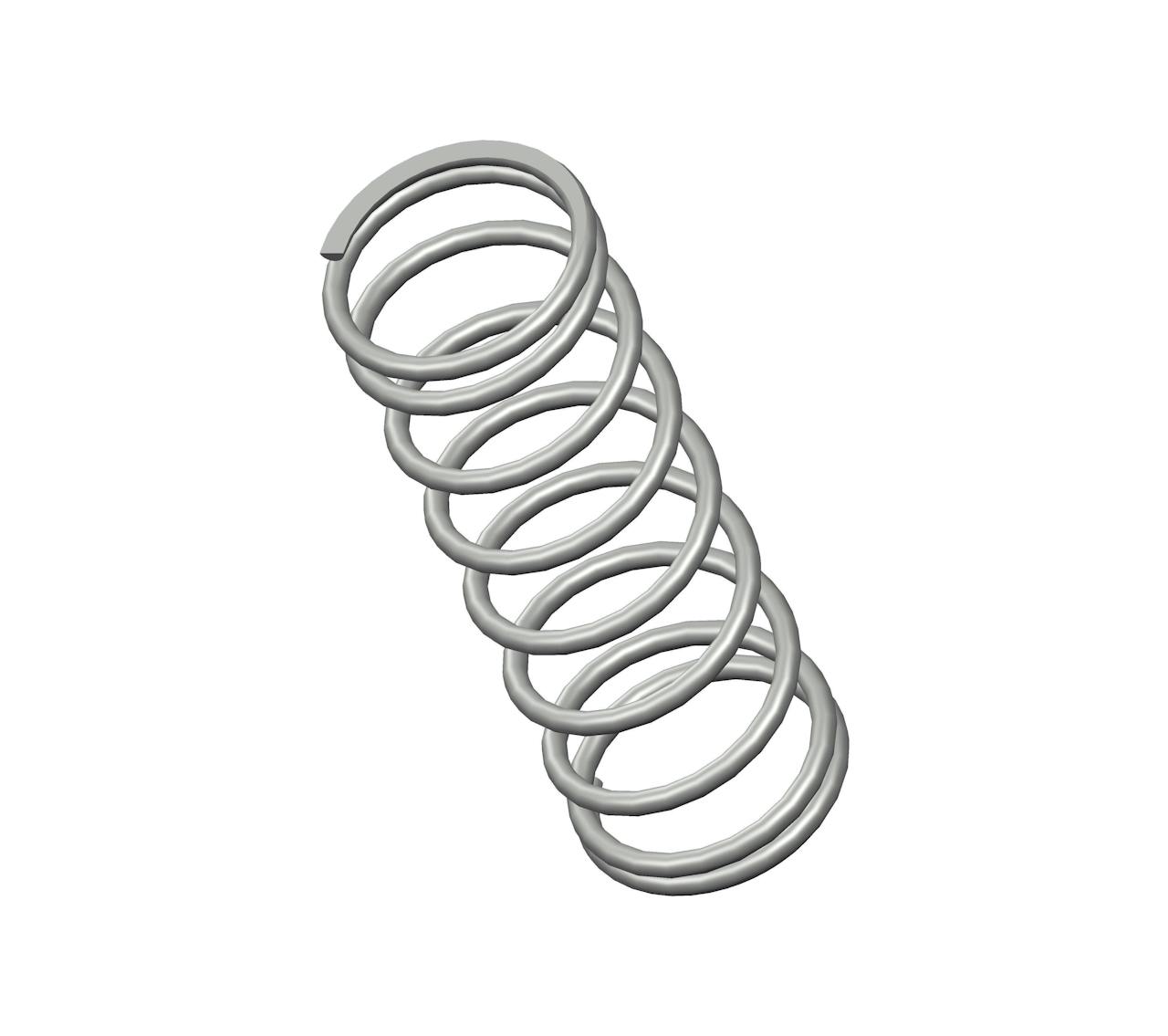

B4-13CS - 1" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 9 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.283".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B4-13 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.283 in |
| Material | Music Wire |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 5.4 lbs/in |
| SKU | B4-13CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.73 in |
| Suggested Max Load | 4 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B4-13 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 7.19 mm |
| Material | Music Wire |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 0.95 N/mm |
| SKU | B4-13CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 18.54 mm |
| Suggested Max Load | 17.79 N |
| Total Coils | 9 |
| Wire Diameter | 0.76 mm |
The compression spring B4-13CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B4-13 compression spring design exhibits exceptional tensile strength and resilience.
The B4-13 design is manufactured with a free length of 1", with an outer diameter of 0.343", an inner diameter of 0.283", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.4 lbs/in.
The B4-13CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B4-13 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
