Century Spring

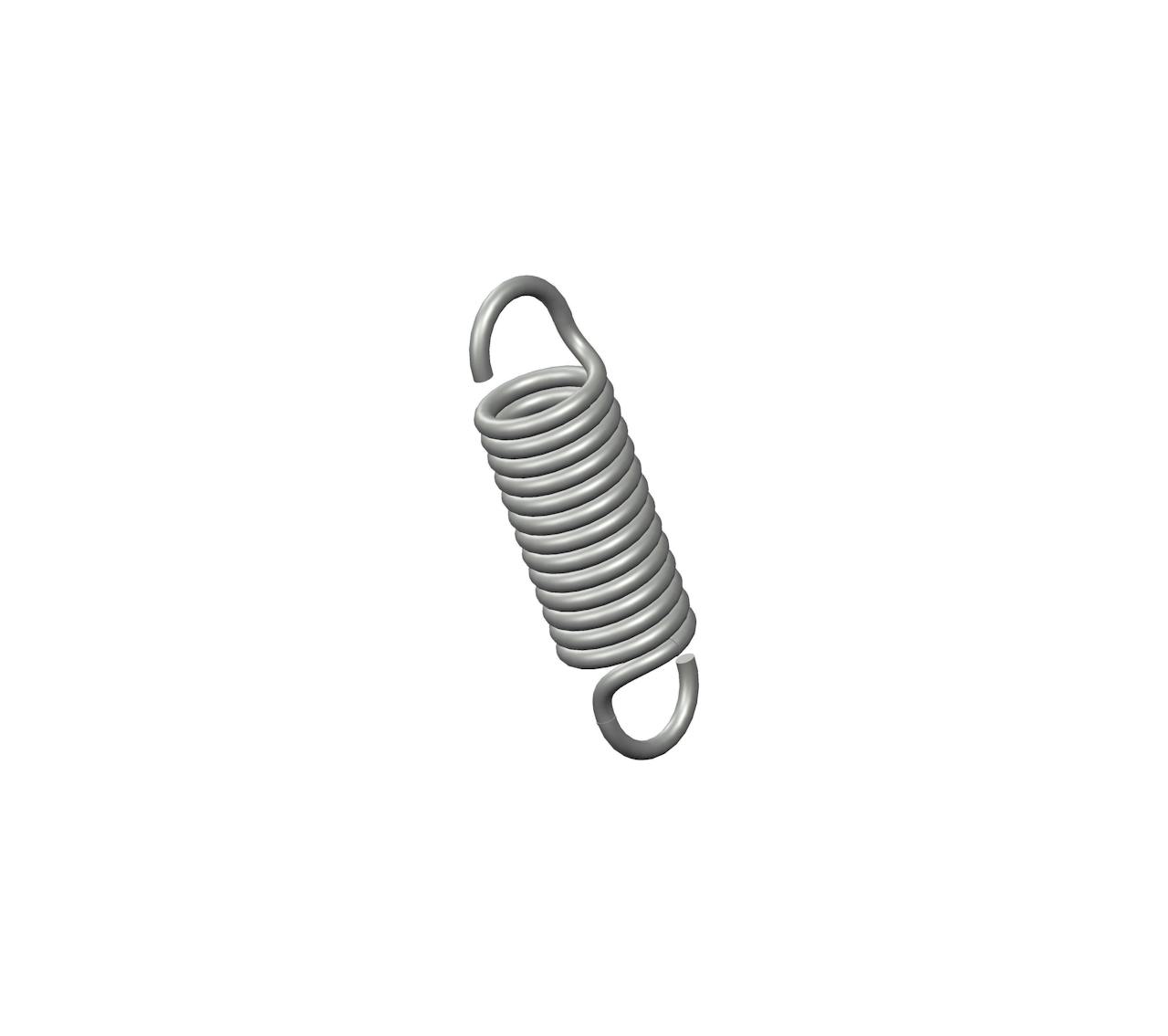

B3-66CS - 0.97 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.25 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B3-66
Ends Machine Hook
Finish None
Initial Tension 2 lb
Length 0.97 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 15 lbs/in
SKU B3-66CS
Sugg Max Deflection 0.56 in
Sugg Max Load 9.9 lbf
Wind Direction Left
Wire Diameter 0.037 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B3-66
Ends Machine Hook
Finish None
Initial Tension 0.91 kg
Length 24.64 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.63 N/mm
SKU B3-66CS
Sugg Max Deflection 14.22 mm
Sugg Max Load 44.04 N
Wind Direction Left
Wire Diameter 0.94 mm
