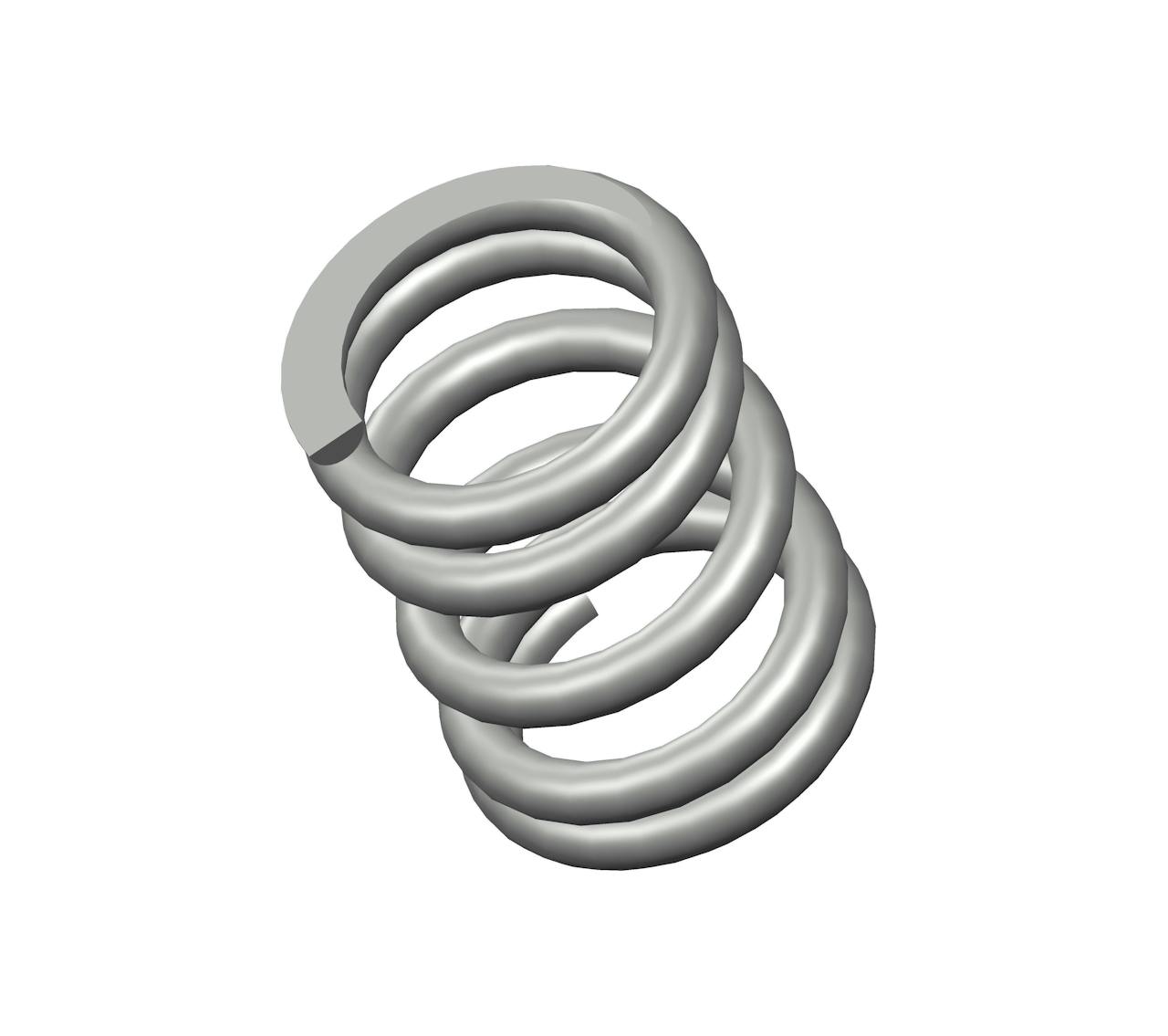

B2-59CS - 1.25" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 5.25 coils and closed & ground ends. This spring features an O.D. of 0.938", and an I.D. of 0.668".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B2-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.668 in |
| Material | Music Wire |
| Outside Diameter | 0.938 in |
| Part Type | Standard |
| Rate | 284 lbs/in |
| SKU | B2-59CS |
| Solid Length | 0.71 in |
| Suggested Max Deflection | 0.39 in |
| Suggested Max Load | 110 lbf |
| Total Coils | 5.25 |
| Wire Diameter | 0.135 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B2-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 16.97 mm |
| Material | Music Wire |
| Outside Diameter | 23.83 mm |
| Part Type | Standard |
| Rate | 49.73 N/mm |
| SKU | B2-59CS |
| Solid Length | 18.03 mm |
| Suggested Max Deflection | 9.91 mm |
| Suggested Max Load | 489.28 N |
| Total Coils | 5.25 |
| Wire Diameter | 3.43 mm |
The compression spring B2-59CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B2-59 compression spring design exhibits exceptional tensile strength and resilience.
The B2-59 design is manufactured with a free length of 1.25", with an outer diameter of 0.938", an inner diameter of 0.668", and a total of 5.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 284 lbs/in.
The B2-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B2-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B2-59 design is manufactured with a free length of 1.25", with an outer diameter of 0.938", an inner diameter of 0.668", and a total of 5.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 284 lbs/in.
The B2-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B2-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
