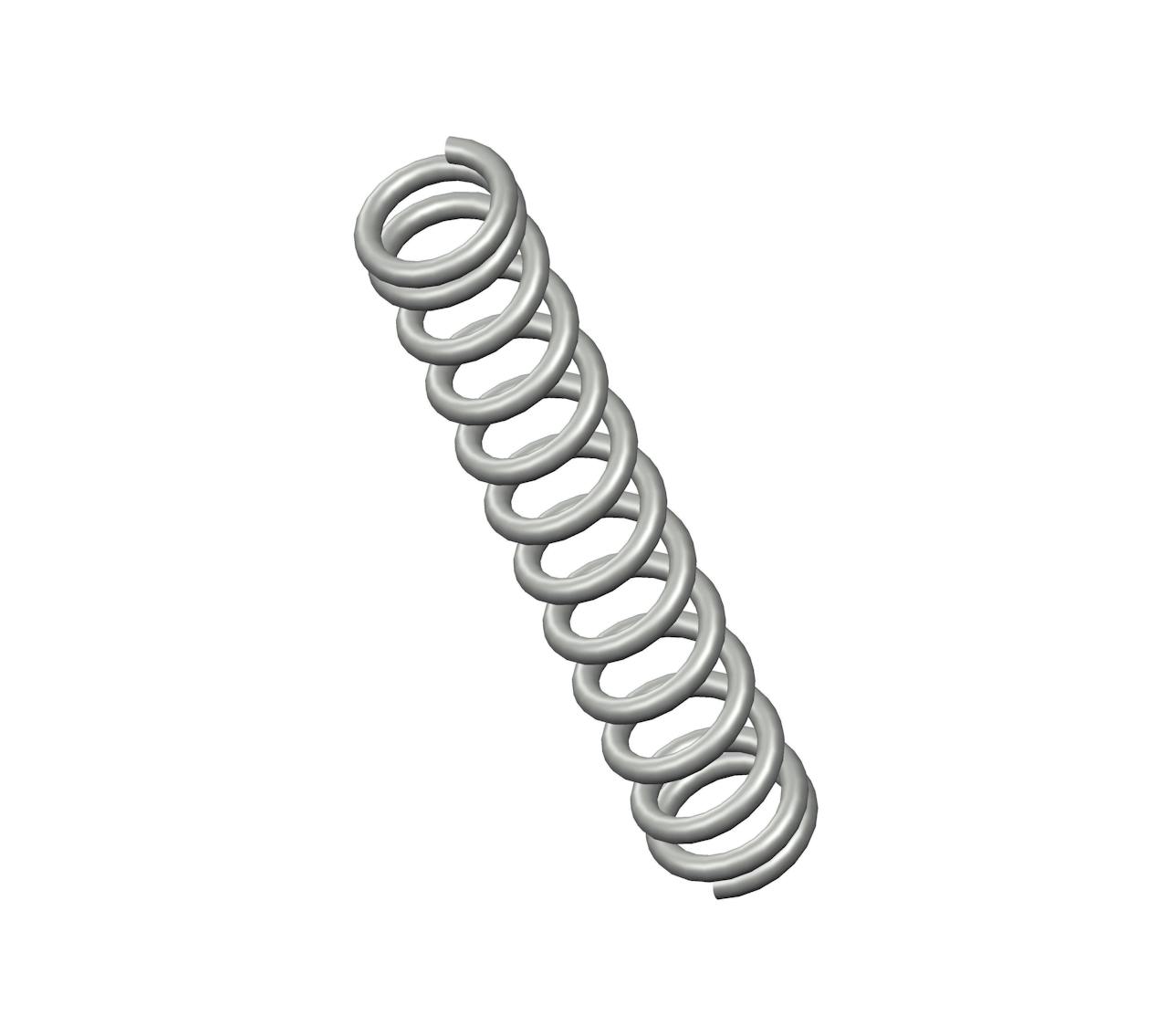

B2-36CS - 1" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 12.5 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.118".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B2-36 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1 in |
| Inside Diameter | 0.118 in |
| Material | Music Wire |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 24 lbs/in |
| SKU | B2-36CS |
| Solid Length | 0.37 in |
| Suggested Max Deflection | 0.26 in |
| Suggested Max Load | 6.2 lbf |
| Total Coils | 12.5 |
| Wire Diameter | 0.027 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B2-36 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 25.4 mm |
| Inside Diameter | 3 mm |
| Material | Music Wire |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 4.2 N/mm |
| SKU | B2-36CS |
| Solid Length | 9.4 mm |
| Suggested Max Deflection | 6.6 mm |
| Suggested Max Load | 27.58 N |
| Total Coils | 12.5 |
| Wire Diameter | 0.69 mm |
The compression spring B2-36CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B2-36 compression spring design exhibits exceptional tensile strength and resilience.
The B2-36 design is manufactured with a free length of 1", with an outer diameter of 0.172", an inner diameter of 0.118", and a total of 12.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 24 lbs/in.
The B2-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B2-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
