B2-14CS - 0.93" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

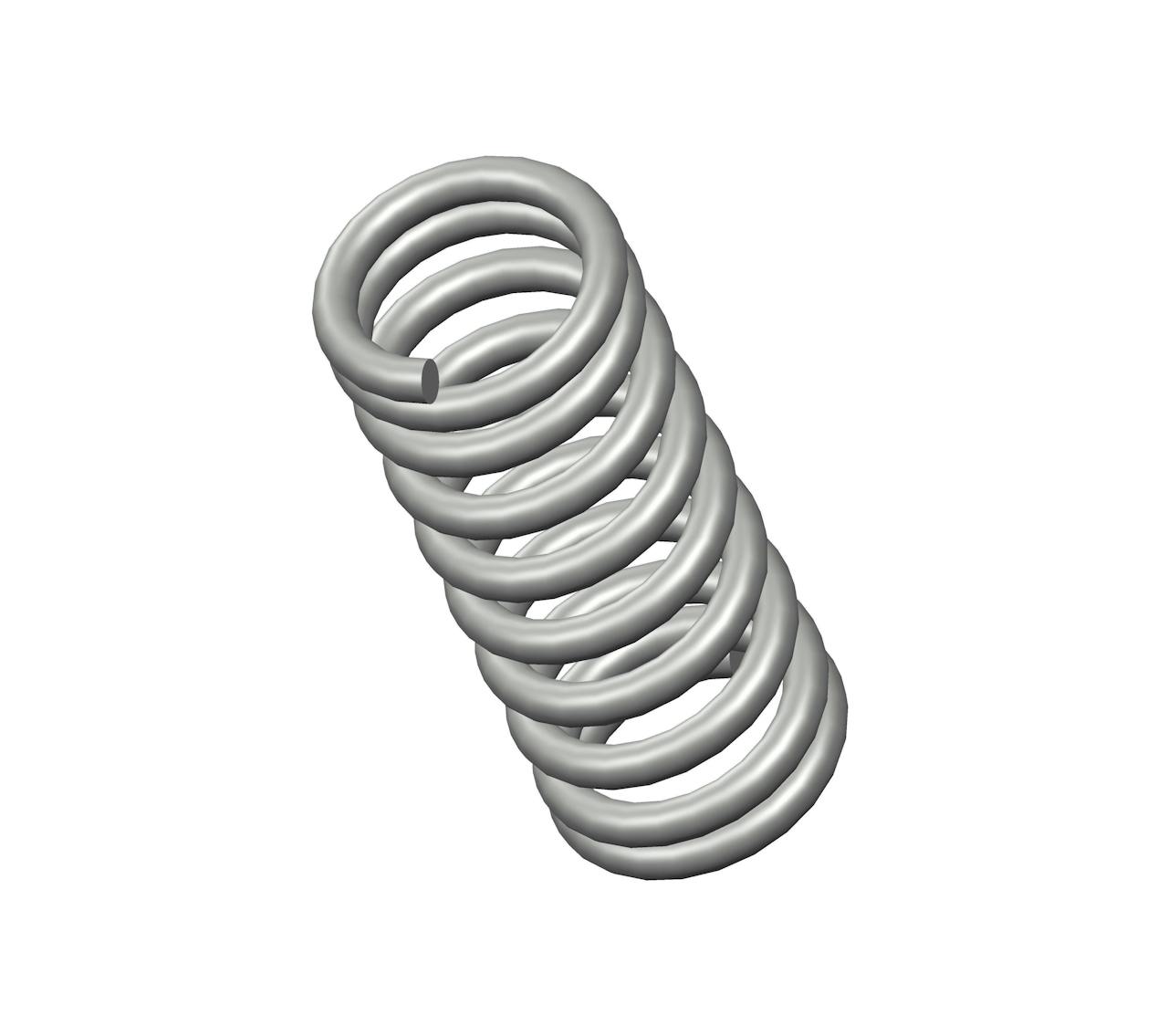

Compression spring manufactured from music wire with 9.5 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.258".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B2-14 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.93 in |
| Inside Diameter | 0.258 in |
| Material | Music Wire |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | B2-14CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.4 in |
| Suggested Max Load | 2.5 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B2-14 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 23.62 mm |
| Inside Diameter | 6.55 mm |
| Material | Music Wire |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | B2-14CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 10.16 mm |
| Suggested Max Load | 11.12 N |
| Total Coils | 9.5 |
| Wire Diameter | 1.3 mm |
The compression spring B2-14CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B2-14 compression spring design exhibits exceptional tensile strength and resilience.
The B2-14 design is manufactured with a free length of 0.93", with an outer diameter of 0.36", an inner diameter of 0.258", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The B2-14CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B2-14 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B2-14 design is manufactured with a free length of 0.93", with an outer diameter of 0.36", an inner diameter of 0.258", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The B2-14CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B2-14 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
