Century Spring

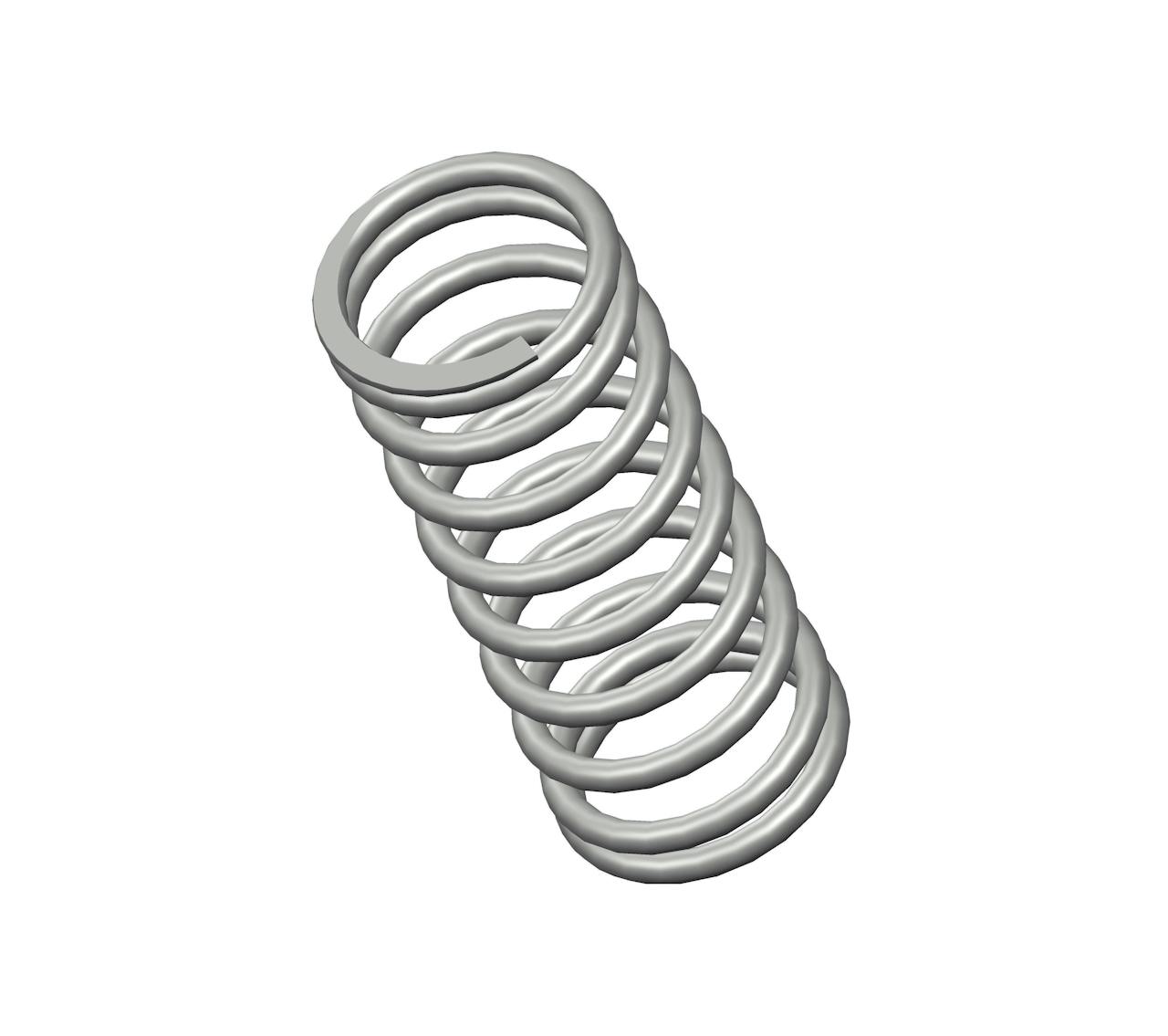

B18-198CS - 1.91" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 9.75 coils and closed ends. This spring features an O.D. of 0.75", and an I.D. of 0.59".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B18-198
Ends Closed
Finish Gold Iridite
Free Length 1.91 in
Inside Diameter 0.59 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 25 lbs/in
SKU B18-198CS
Solid Length 0.86 in
Suggested Max Deflection 0.92 in
Suggested Max Load 23 lbf
Total Coils 9.75
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B18-198
Ends Closed
Finish Gold Iridite
Free Length 48.51 mm
Inside Diameter 14.99 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 4.38 N/mm
SKU B18-198CS
Solid Length 21.84 mm
Suggested Max Deflection 23.37 mm
Suggested Max Load 102.3 N
Total Coils 9.75
Wire Diameter 2.03 mm
The B18-198CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter spring steel, the B18-198 spring design exhibits reliable strength across its 9.75 active coils, withstanding repeated compression cycles with a maximum load of 23 lbf without succumbing to fatigue.

We manufacture the B18-198 design to provide a compression spring that is 1.91" long at rest and provides a consistent rate of 25 lbs/in along its recommended maximum of 0.92" deflection. For best results, your application should fully accommodate the inner (0.59") and outer (0.75") diameters of this spring and be designed for its closed end configuration.
