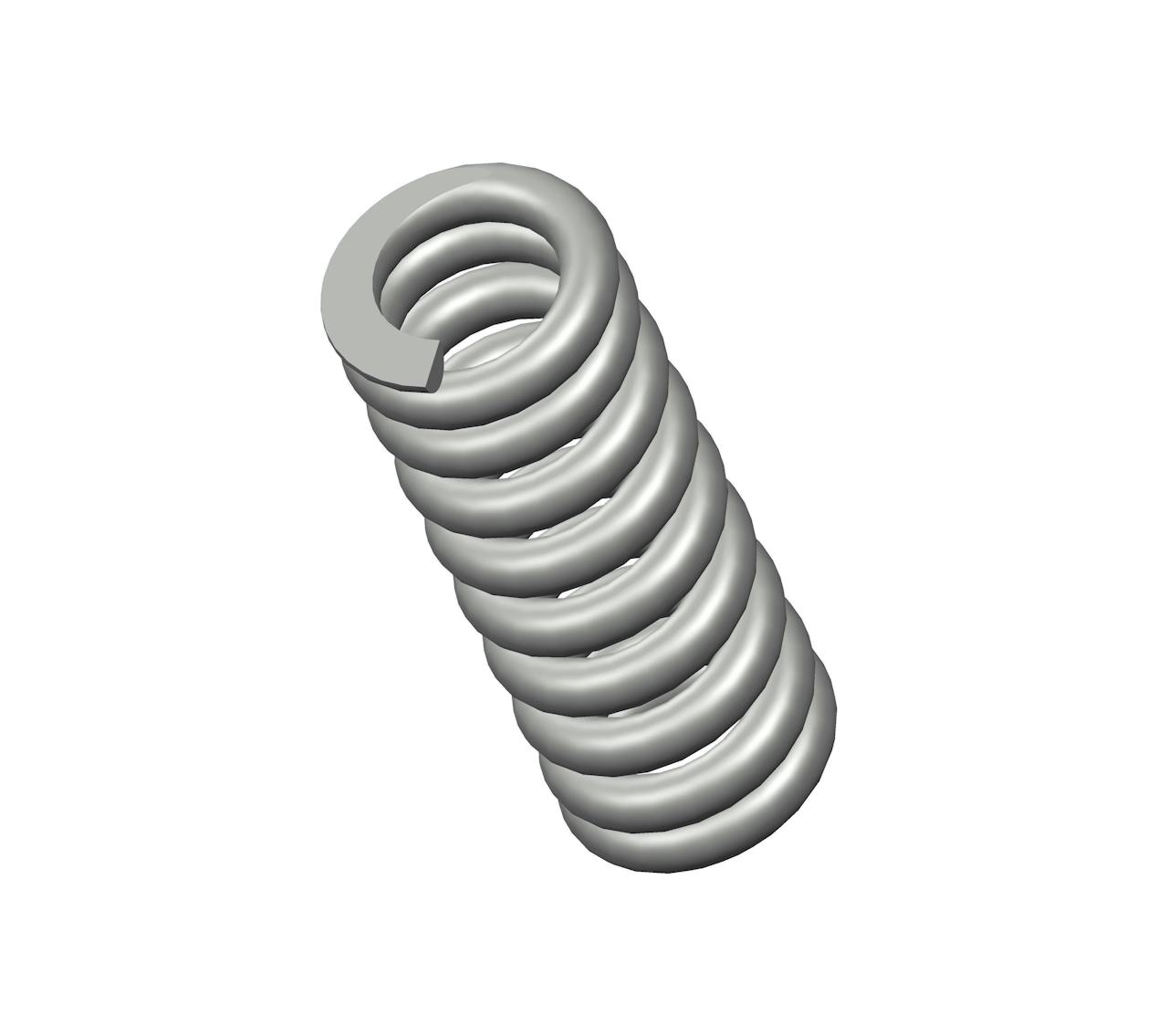

B18-192CS - 1.41" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.531", and an I.D. of 0.321".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-192 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.41 in |
| Inside Diameter | 0.321 in |
| Material | Spring Steel |
| Outside Diameter | 0.531 in |
| Part Type | Standard |
| Rate | 301 lbs/in |
| SKU | B18-192CS |
| Solid Length | 1 in |
| Suggested Max Deflection | 0.22 in |
| Suggested Max Load | 67 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-192 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 35.81 mm |
| Inside Diameter | 8.15 mm |
| Material | Spring Steel |
| Outside Diameter | 13.49 mm |
| Part Type | Standard |
| Rate | 52.71 N/mm |
| SKU | B18-192CS |
| Solid Length | 25.4 mm |
| Suggested Max Deflection | 5.59 mm |
| Suggested Max Load | 298.02 N |
| Total Coils | 9.5 |
| Wire Diameter | 2.67 mm |
The compression spring B18-192CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B18-192 compression spring design exhibits exceptional tensile strength and resilience.
The B18-192 design is manufactured with a free length of 1.41", with an outer diameter of 0.531", an inner diameter of 0.321", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 301 lbs/in.
The B18-192CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B18-192 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B18-192 design is manufactured with a free length of 1.41", with an outer diameter of 0.531", an inner diameter of 0.321", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 301 lbs/in.
The B18-192CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B18-192 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
