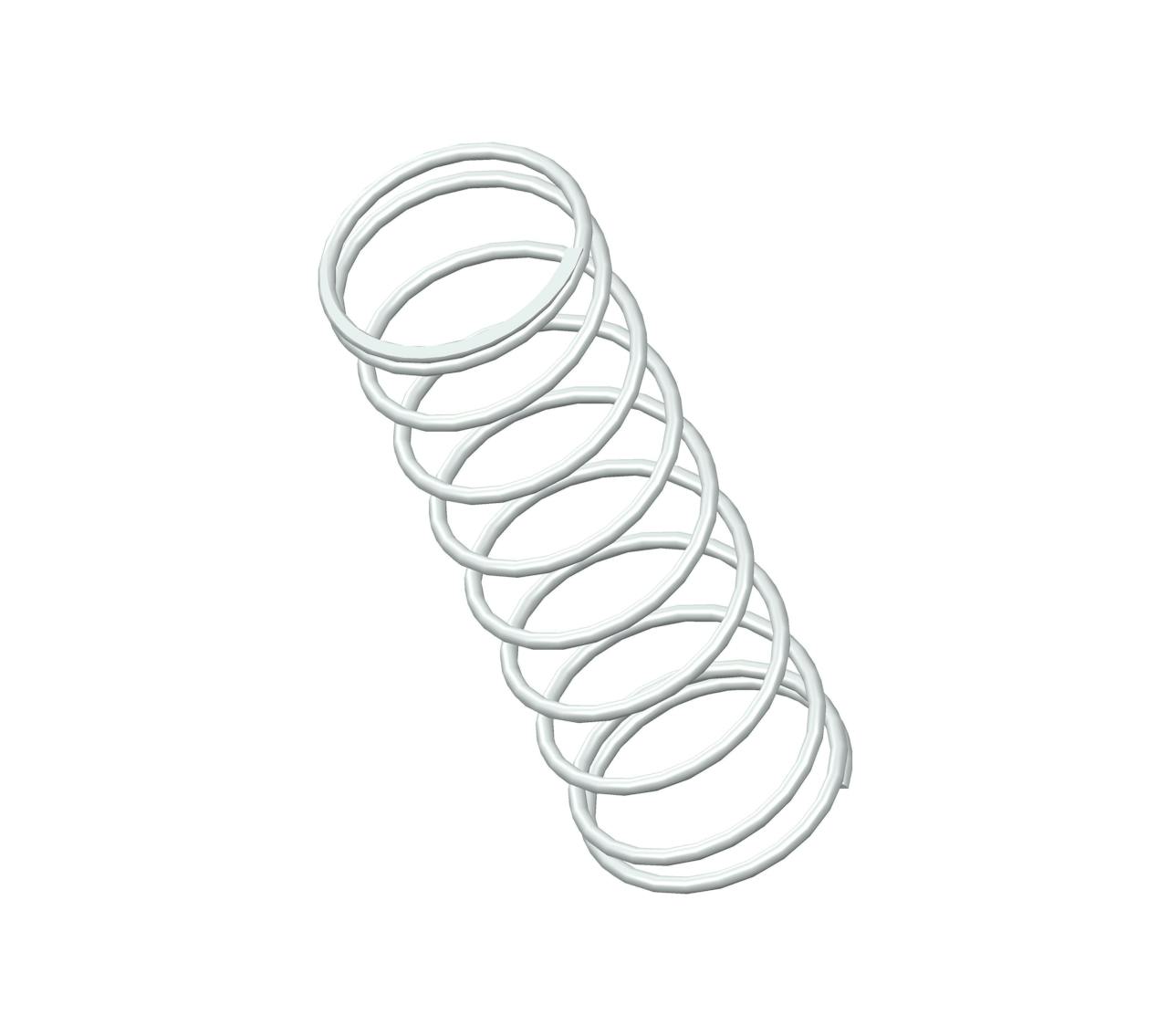

B18-179CS - 2" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.656", and an I.D. of 0.576".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-179 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2 in |
| Inside Diameter | 0.576 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.656 in |
| Part Type | Standard |
| Rate | 1.7 lbs/in |
| SKU | B18-179CS |
| Solid Length | 0.4 in |
| Suggested Max Deflection | 1.6 in |
| Suggested Max Load | 2.8 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-179 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 50.8 mm |
| Inside Diameter | 14.63 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 16.66 mm |
| Part Type | Standard |
| Rate | 0.3 N/mm |
| SKU | B18-179CS |
| Solid Length | 10.16 mm |
| Suggested Max Deflection | 40.64 mm |
| Suggested Max Load | 12.45 N |
| Total Coils | 10 |
| Wire Diameter | 1.02 mm |
The compression spring B18-179CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the B18-179 compression spring design exhibits exceptional tensile strength and resilience.
The B18-179 design is manufactured with a free length of 2", with an outer diameter of 0.656", an inner diameter of 0.576", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.7 lbs/in.
The B18-179CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B18-179 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B18-179 design is manufactured with a free length of 2", with an outer diameter of 0.656", an inner diameter of 0.576", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.7 lbs/in.
The B18-179CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B18-179 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
