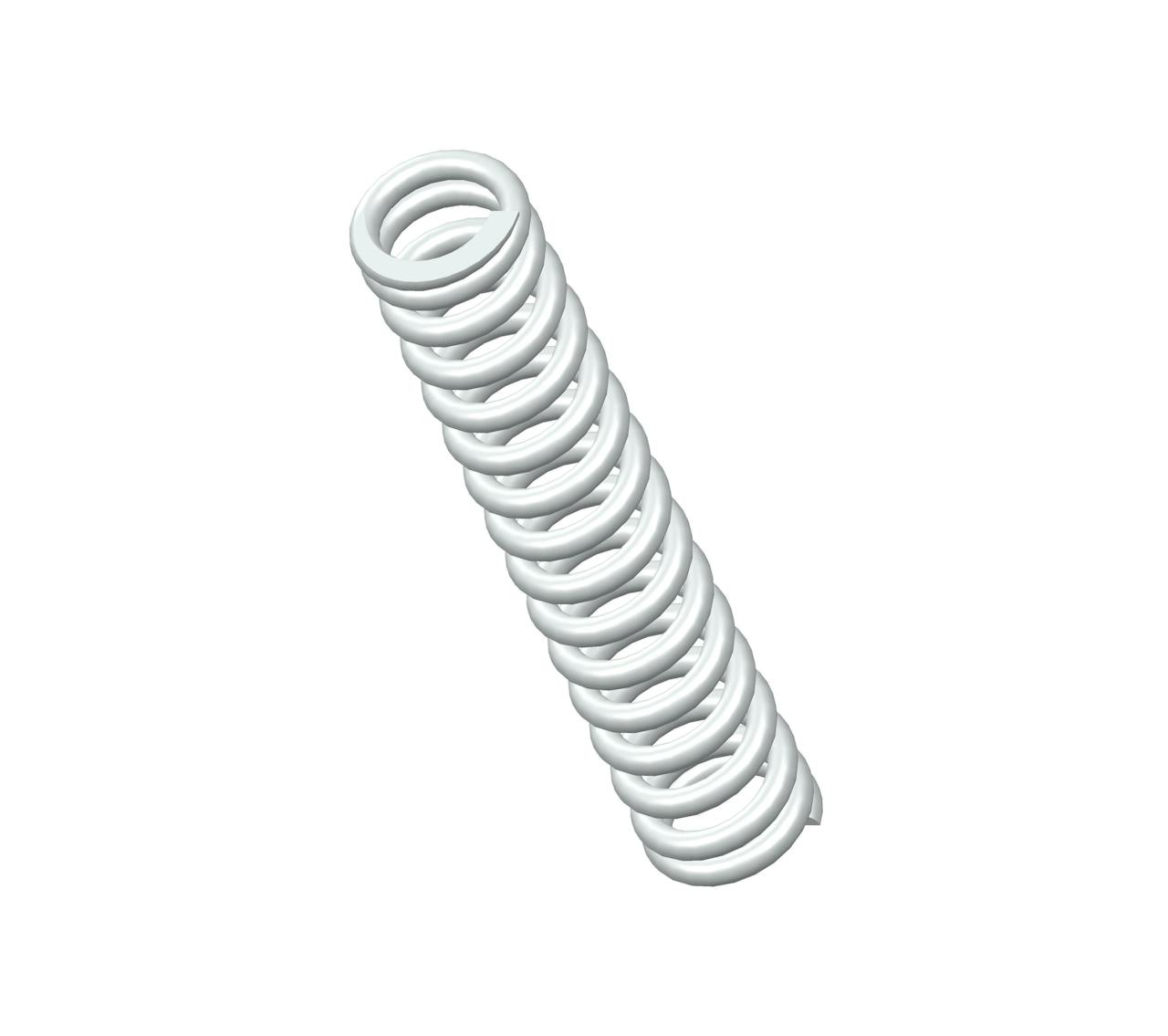

B18-172CS - 2" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 16 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.25".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-172 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2 in |
| Inside Diameter | 0.25 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | B18-172CS |
| Solid Length | 0.99 in |
| Suggested Max Deflection | 0.47 in |
| Suggested Max Load | 21 lbf |
| Total Coils | 16 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-172 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 50.8 mm |
| Inside Diameter | 6.35 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | B18-172CS |
| Solid Length | 25.15 mm |
| Suggested Max Deflection | 11.94 mm |
| Suggested Max Load | 93.41 N |
| Total Coils | 16 |
| Wire Diameter | 1.59 mm |
The compression spring B18-172CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the B18-172 compression spring design exhibits exceptional tensile strength and resilience.
The B18-172 design is manufactured with a free length of 2", with an outer diameter of 0.375", an inner diameter of 0.25", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The B18-172CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B18-172 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B18-172 design is manufactured with a free length of 2", with an outer diameter of 0.375", an inner diameter of 0.25", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The B18-172CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B18-172 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
