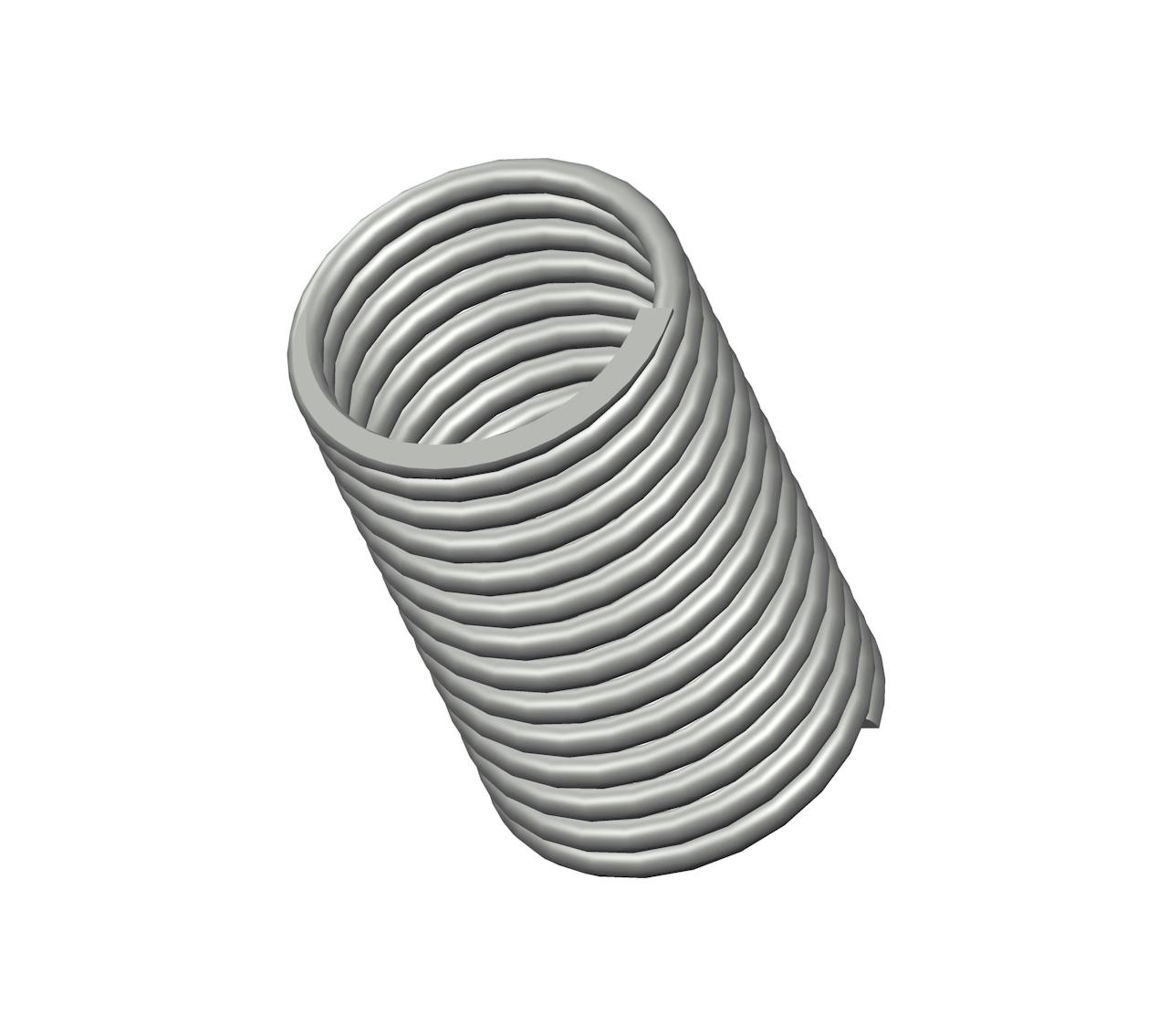

B18-142CS - 0.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 14 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.194".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-142 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.38 in |
| Inside Diameter | 0.194 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 2 lbs/in |
| SKU | B18-142CS |
| Solid Length | 0.28 in |
| Suggested Max Deflection | 0.1 in |
| Suggested Max Load | 0.19 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B18-142 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 9.65 mm |
| Inside Diameter | 4.93 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 0.35 N/mm |
| SKU | B18-142CS |
| Solid Length | 7.11 mm |
| Suggested Max Deflection | 2.54 mm |
| Suggested Max Load | 0.85 N |
| Total Coils | 14 |
| Wire Diameter | 0.51 mm |
The B18-142 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B18-142CS compression spring is designed with a free length of 1.5" total of 7.1 coils, and a rate of 430 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B18-142 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B18-142CS compression spring is designed with a free length of 1.5" total of 7.1 coils, and a rate of 430 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B18-142 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
