Century Spring

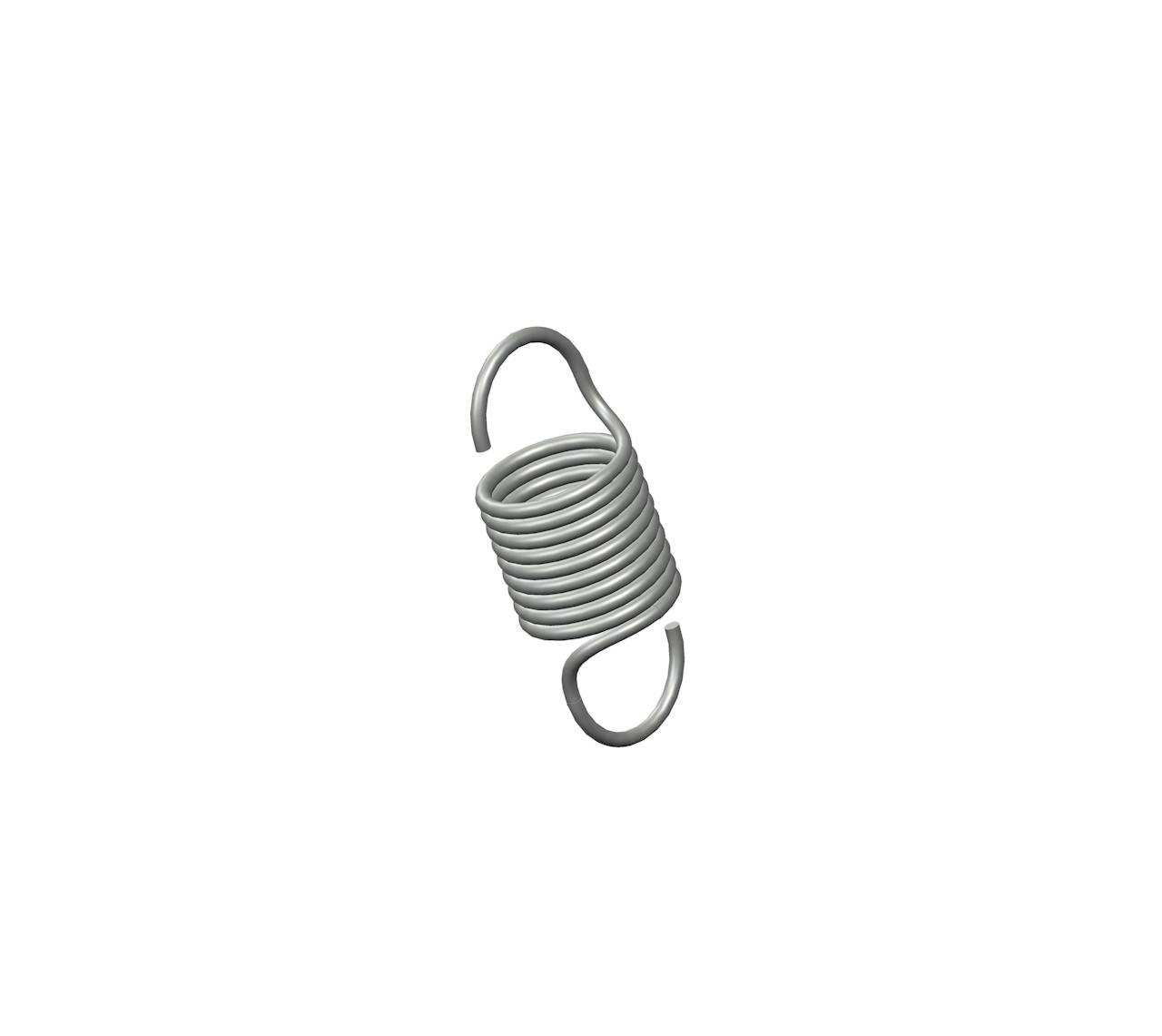

B18-137CS - 1.16 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.406 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B18-137
Ends Machine Hook
Finish Zinc
Initial Tension 0.8 lb
Length 1.16 in
Material Spring Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 4.2 lbs/in
SKU B18-137CS
Sugg Max Deflection 1.1 in
Sugg Max Load 5.5 lbf
Wind Direction Left
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B18-137
Ends Machine Hook
Finish Zinc
Initial Tension 0.36 kg
Length 29.46 mm
Material Spring Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 0.74 N/mm
SKU B18-137CS
Sugg Max Deflection 27.94 mm
Sugg Max Load 24.46 N
Wind Direction Left
Wire Diameter 1.02 mm
