B17-197CS - 4.06" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

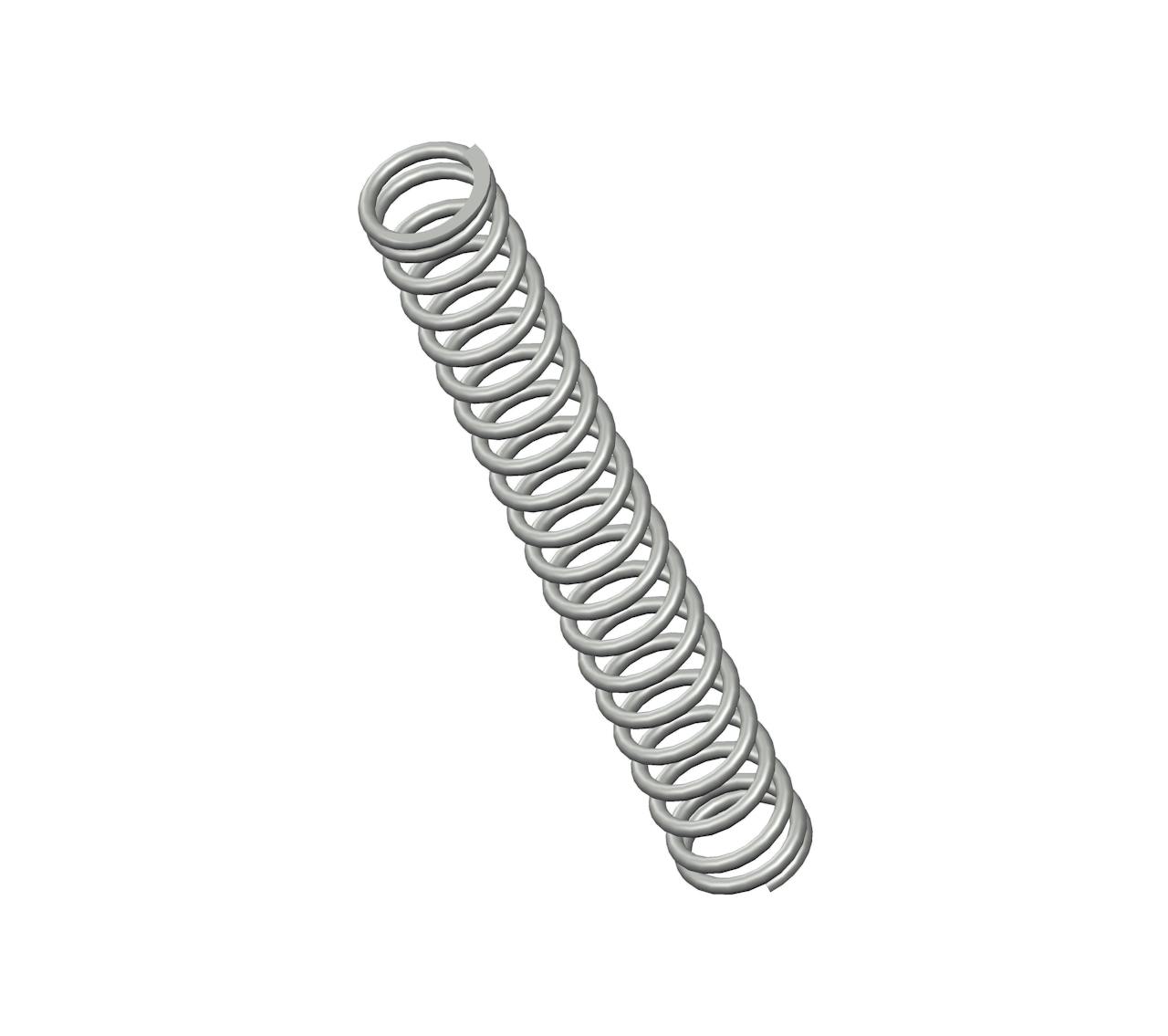

Compression spring manufactured from spring steel with 20.3 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.412".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B17-197
Ends Closed & Ground
Finish Zinc
Free Length 4.06 in
Inside Diameter 0.412 in
Material Spring Steel
Outside Diameter 0.546 in
Part Type Standard
Rate 14 lbs/in
SKU B17-197CS
Solid Length 1.36 in
Suggested Max Deflection 1.4 in
Suggested Max Load 20 lbf
Total Coils 20.3
Wire Diameter 0.067 in
The compression spring B17-197CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B17-197 compression spring design exhibits exceptional tensile strength and resilience.

The B17-197 design is manufactured with a free length of 4.06", with an outer diameter of 0.546", an inner diameter of 0.412", and a total of 20.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.

The B17-197CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B17-197 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
