Century Spring

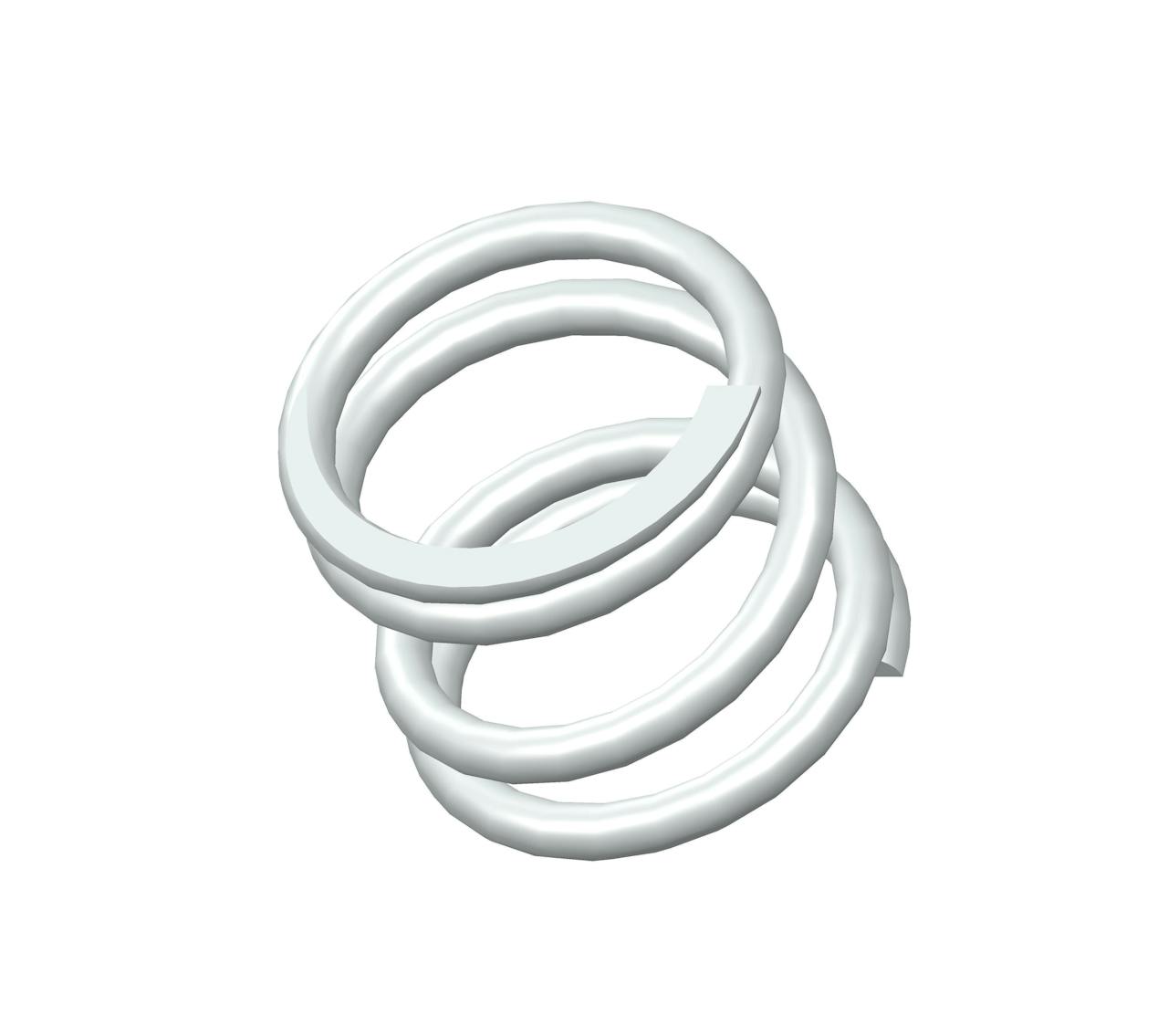

B17-193CS - 1.47" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 1.64", and an I.D. of 1.28".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B17-193
Ends Closed & Ground
Finish None
Free Length 1.47 in
Inside Diameter 1.28 in
Material 302/304 Stainless Steel
Outside Diameter 1.64 in
Part Type Standard
Rate 215 lbs/in
SKU B17-193CS
Solid Length 0.72 in
Suggested Max Deflection 0.41 in
Suggested Max Load 87 lbf
Total Coils 4
Wire Diameter 0.18 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B17-193
Ends Closed & Ground
Finish None
Free Length 37.34 mm
Inside Diameter 32.51 mm
Material 302/304 Stainless Steel
Outside Diameter 41.66 mm
Part Type Standard
Rate 37.65 N/mm
SKU B17-193CS
Solid Length 18.29 mm
Suggested Max Deflection 10.41 mm
Suggested Max Load 386.98 N
Total Coils 4
Wire Diameter 4.57 mm
The compression spring B17-193CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the B17-193 compression spring design exhibits exceptional tensile strength and resilience.

The B17-193 design is manufactured with a free length of 1.47", with an outer diameter of 1.64", an inner diameter of 1.28", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 215 lbs/in.

The B17-193CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B17-193 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
