B17-185CS - 1.09" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

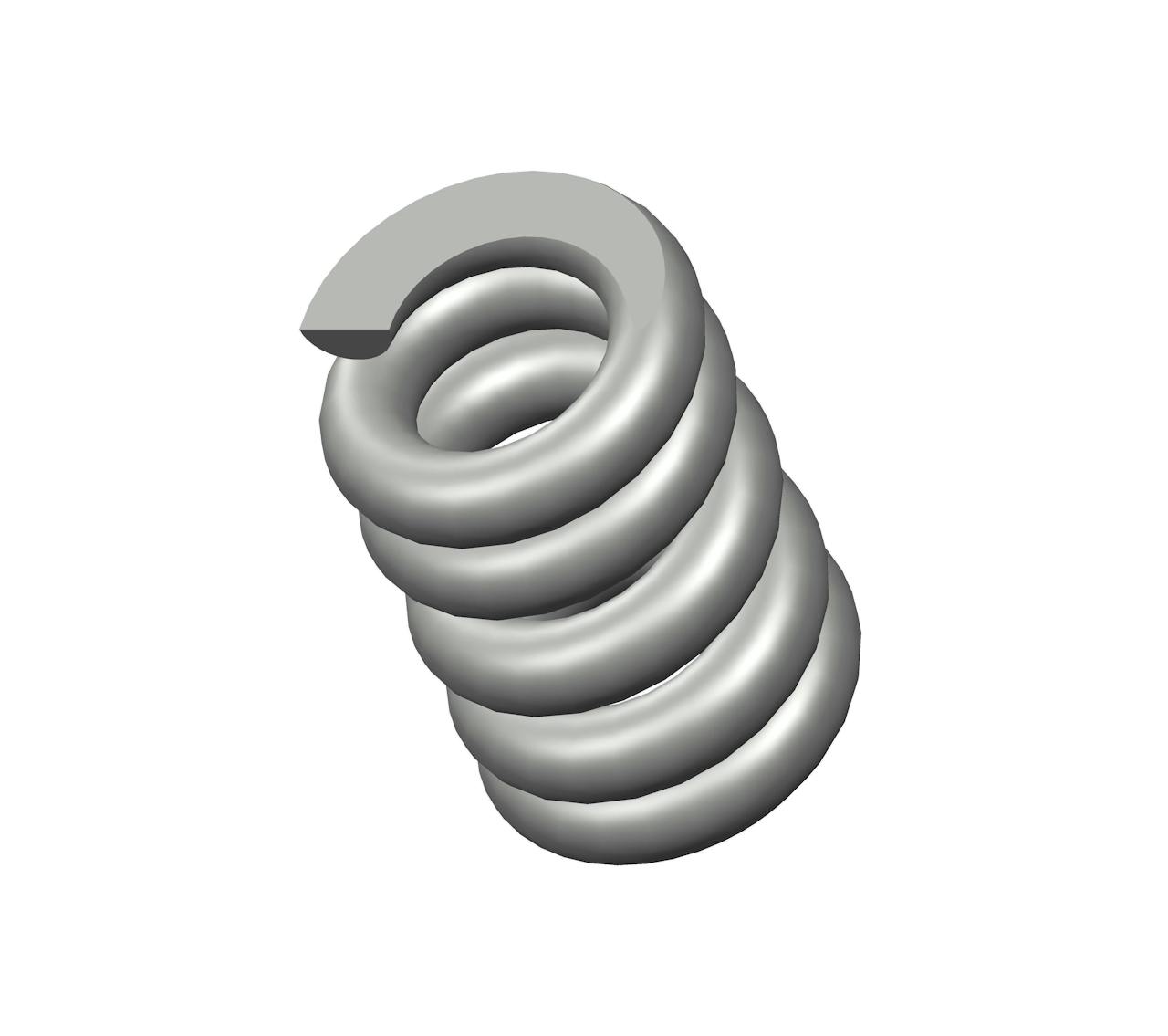

Compression spring manufactured from spring steel with 5.25 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.396".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-185 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.09 in |
| Inside Diameter | 0.396 in |
| Material | Spring Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 2364 lbs/in |
| SKU | B17-185CS |
| Solid Length | 0.92 in |
| Suggested Max Deflection | 0.08 in |
| Suggested Max Load | 193 lbf |
| Total Coils | 5.25 |
| Wire Diameter | 0.177 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-185 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 27.69 mm |
| Inside Diameter | 10.06 mm |
| Material | Spring Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 413.94 N/mm |
| SKU | B17-185CS |
| Solid Length | 23.37 mm |
| Suggested Max Deflection | 2.03 mm |
| Suggested Max Load | 858.46 N |
| Total Coils | 5.25 |
| Wire Diameter | 4.5 mm |
The compression spring B17-185CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B17-185 compression spring design exhibits exceptional tensile strength and resilience.
The B17-185 design is manufactured with a free length of 1.09", with an outer diameter of 0.75", an inner diameter of 0.396", and a total of 5.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 2364 lbs/in.
The B17-185CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B17-185 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B17-185 design is manufactured with a free length of 1.09", with an outer diameter of 0.75", an inner diameter of 0.396", and a total of 5.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 2364 lbs/in.
The B17-185CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B17-185 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
