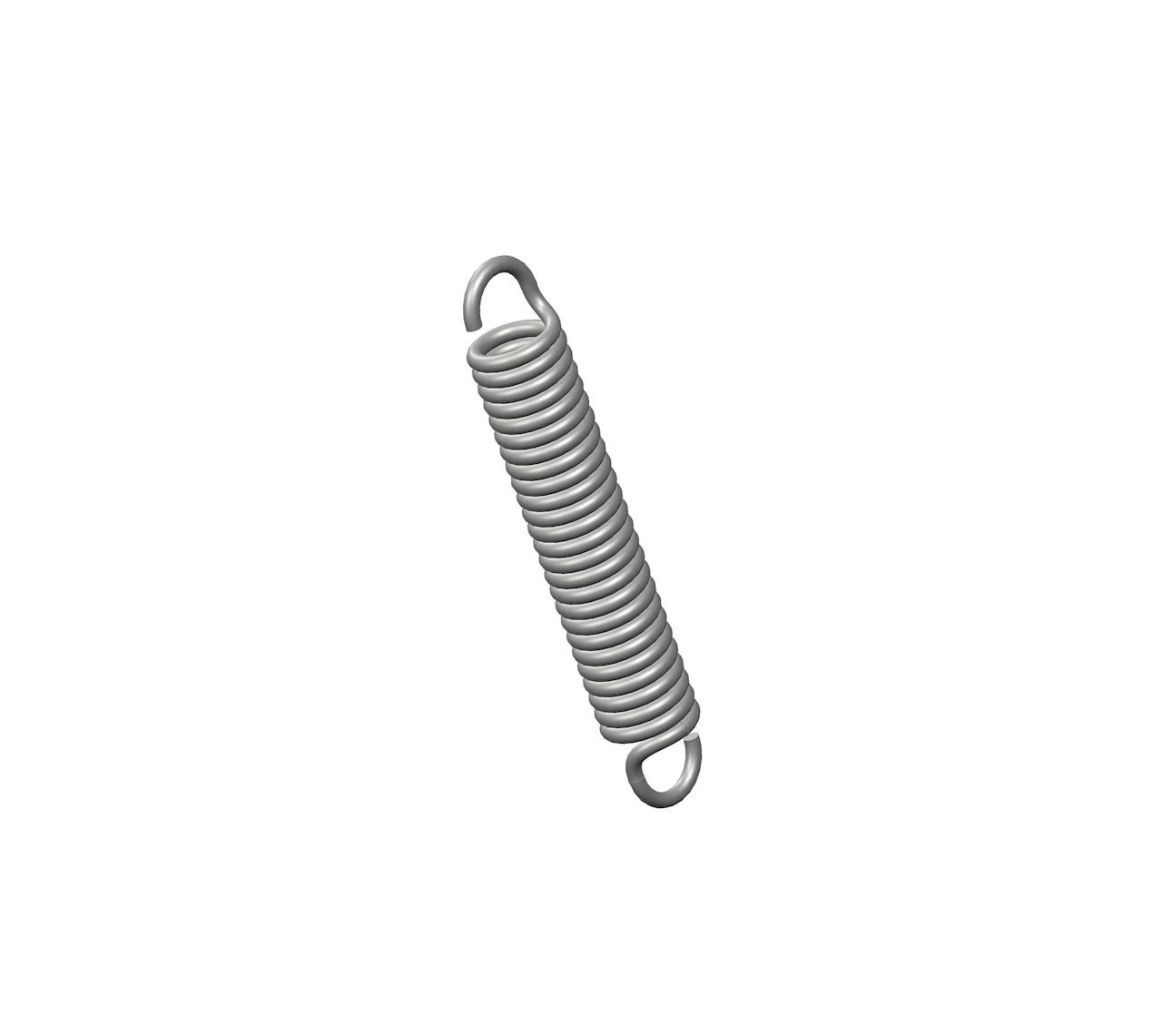

B17-168CS - 3.31 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.531 Inch and an initial tension of 15 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B17-168
Ends Machine Hook
Finish Zinc
Initial Tension 15 lb
Length 3.31 in
Material Spring Steel
Outside Diameter 0.531 in
Part Type Standard
Rate 40 lbs/in
SKU B17-168CS
Sugg Max Deflection 0.86 in
Sugg Max Load 49 lbf
Wire Diameter 0.092 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B17-168
Ends Machine Hook
Finish Zinc
Initial Tension 6.8 kg
Length 84.07 mm
Material Spring Steel
Outside Diameter 13.49 mm
Part Type Standard
Rate 7 N/mm
SKU B17-168CS
Sugg Max Deflection 21.84 mm
Sugg Max Load 217.95 N
Wire Diameter 2.34 mm
