B17-135CS - 0.41" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

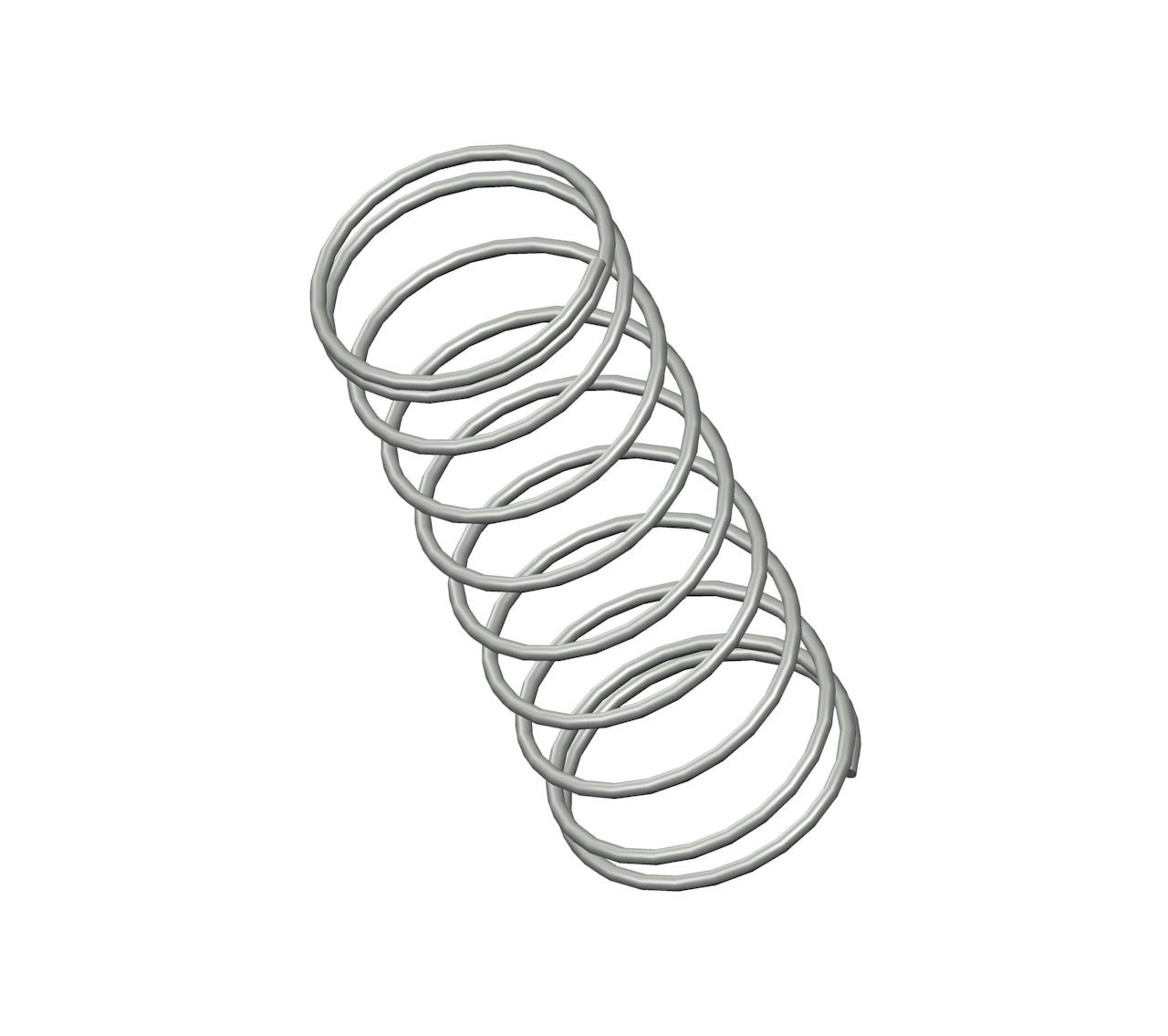

Compression spring manufactured from music wire with 10 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.14".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-135 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.41 in |
| Inside Diameter | 0.14 in |
| Material | Music Wire |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 0.23 lbs/in |
| SKU | B17-135CS |
| Solid Length | 0.09 in |
| Suggested Max Deflection | 0.32 in |
| Suggested Max Load | 0.07 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.008 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-135 |
| Ends | Closed |
| Finish | None |
| Free Length | 10.41 mm |
| Inside Diameter | 3.56 mm |
| Material | Music Wire |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 0.04 N/mm |
| SKU | B17-135CS |
| Solid Length | 2.29 mm |
| Suggested Max Deflection | 8.13 mm |
| Suggested Max Load | 0.31 N |
| Total Coils | 10 |
| Wire Diameter | 0.2 mm |
The compression spring B17-135CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B17-135 compression spring design exhibits exceptional tensile strength and resilience.
The B17-135 design is manufactured with a free length of 0.41", with an outer diameter of 0.156", an inner diameter of 0.14", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.23 lbs/in.
The B17-135CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B17-135 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B17-135 design is manufactured with a free length of 0.41", with an outer diameter of 0.156", an inner diameter of 0.14", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.23 lbs/in.
The B17-135CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B17-135 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
