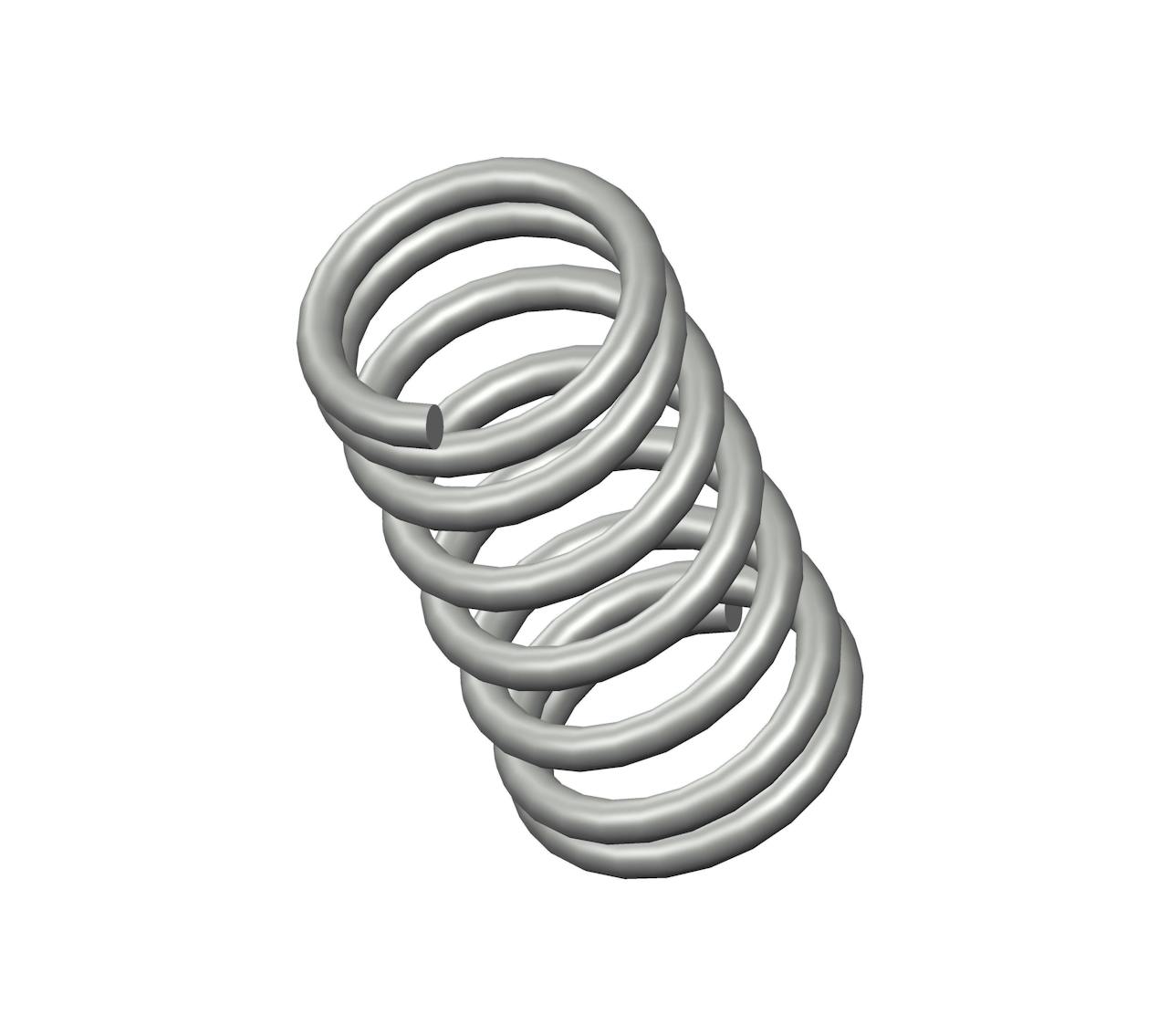

B15-61CS - 0.75" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.5 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.285".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B15-61 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.285 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 30 lbs/in |
| SKU | B15-61CS |
| Solid Length | 0.38 in |
| Suggested Max Deflection | 0.31 in |
| Suggested Max Load | 9.2 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B15-61 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 7.24 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 5.25 N/mm |
| SKU | B15-61CS |
| Solid Length | 9.65 mm |
| Suggested Max Deflection | 7.87 mm |
| Suggested Max Load | 40.92 N |
| Total Coils | 7.5 |
| Wire Diameter | 1.14 mm |
The compression spring B15-61CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B15-61 compression spring design exhibits exceptional tensile strength and resilience.
The B15-61 design is manufactured with a free length of 0.75", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 30 lbs/in.
The B15-61CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B15-61 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B15-61 design is manufactured with a free length of 0.75", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 30 lbs/in.
The B15-61CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B15-61 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
