Century Spring

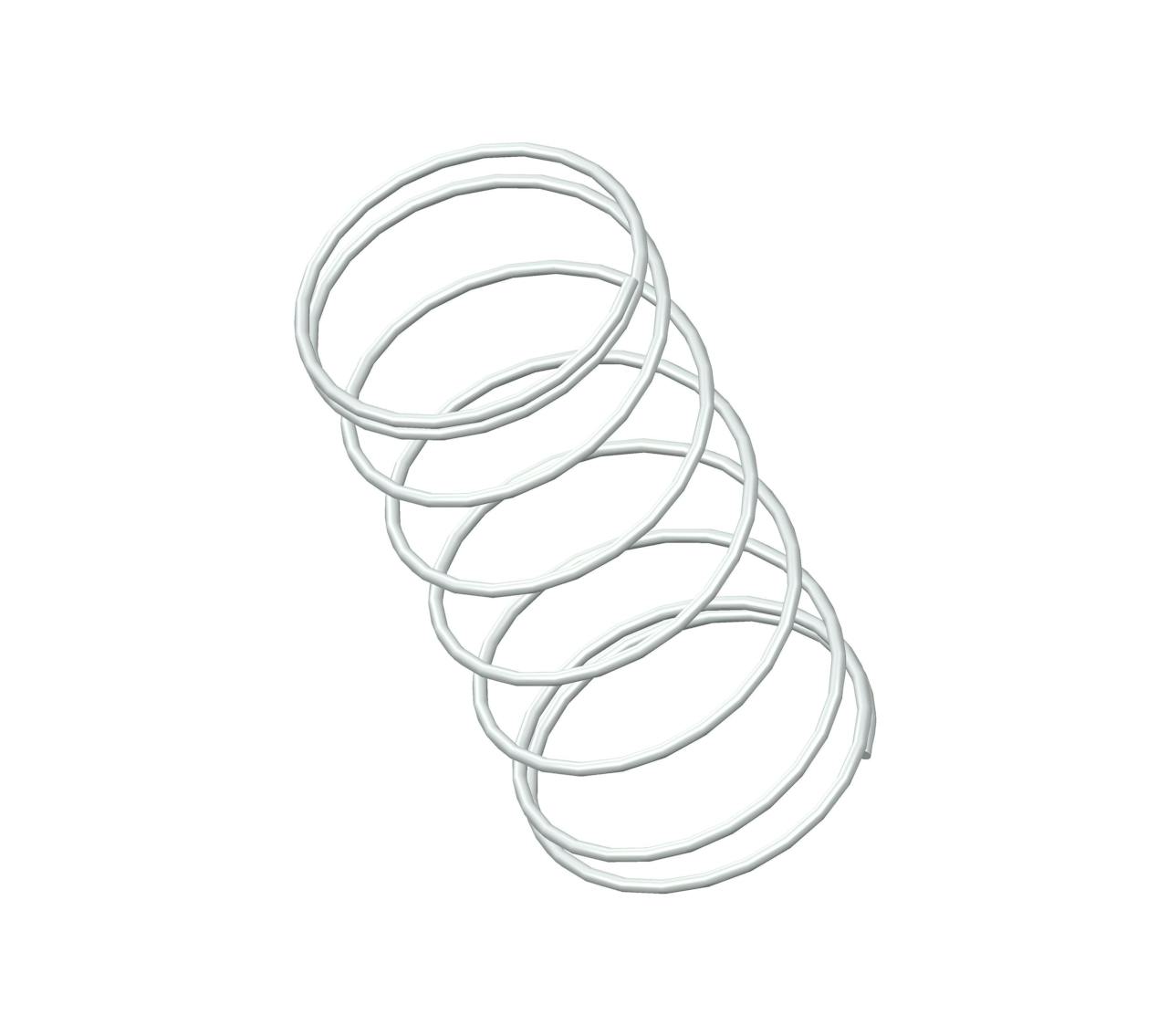

B15-56CS - 0.69" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 0.328", and an I.D. of 0.302".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B15-56
Ends Closed
Finish None
Free Length 0.69 in
Inside Diameter 0.302 in
Material 302/304 Stainless Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 0.19 lbs/in
SKU B15-56CS
Solid Length 0.12 in
Suggested Max Deflection 0.57 in
Suggested Max Load 0.11 lbf
Total Coils 8
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B15-56
Ends Closed
Finish None
Free Length 17.53 mm
Inside Diameter 7.67 mm
Material 302/304 Stainless Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 0.03 N/mm
SKU B15-56CS
Solid Length 3.05 mm
Suggested Max Deflection 14.48 mm
Suggested Max Load 0.49 N
Total Coils 8
Wire Diameter 0.33 mm
The B15-56 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B15-56CS compression spring is designed with a free length of 5.5" total of 31 coils, and a rate of 2.6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B15-56 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
