B14-55CS - 1.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

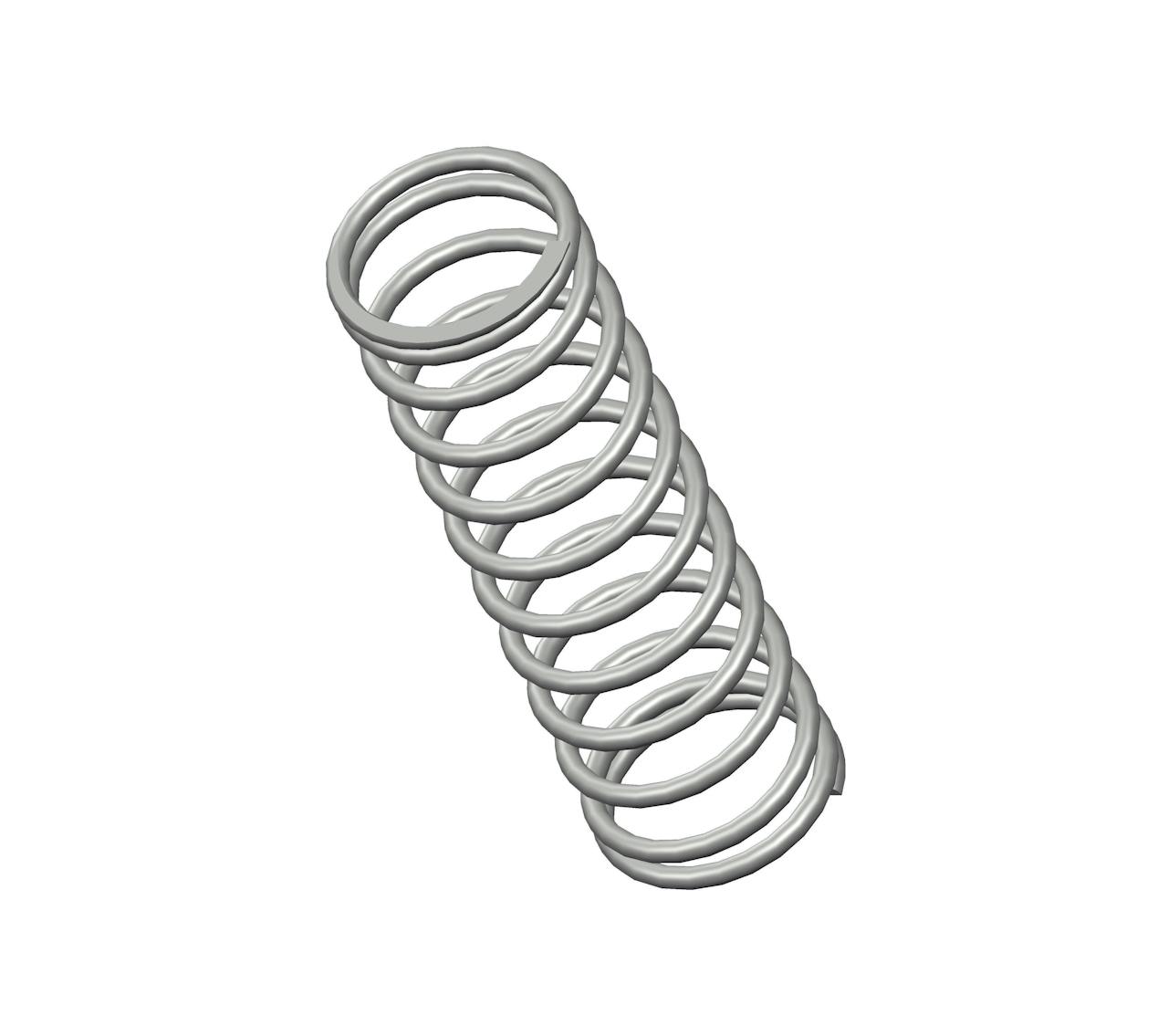

Compression spring manufactured from spring steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.41".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B14-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.69 in |
| Inside Diameter | 0.41 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | B14-55CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 7 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B14-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 42.93 mm |
| Inside Diameter | 10.41 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | B14-55CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 31.14 N |
| Total Coils | 12 |
| Wire Diameter | 1.14 mm |
The compression spring B14-55CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B14-55 compression spring design exhibits exceptional tensile strength and resilience.
The B14-55 design is manufactured with a free length of 1.69", with an outer diameter of 0.5", an inner diameter of 0.41", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The B14-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B14-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
