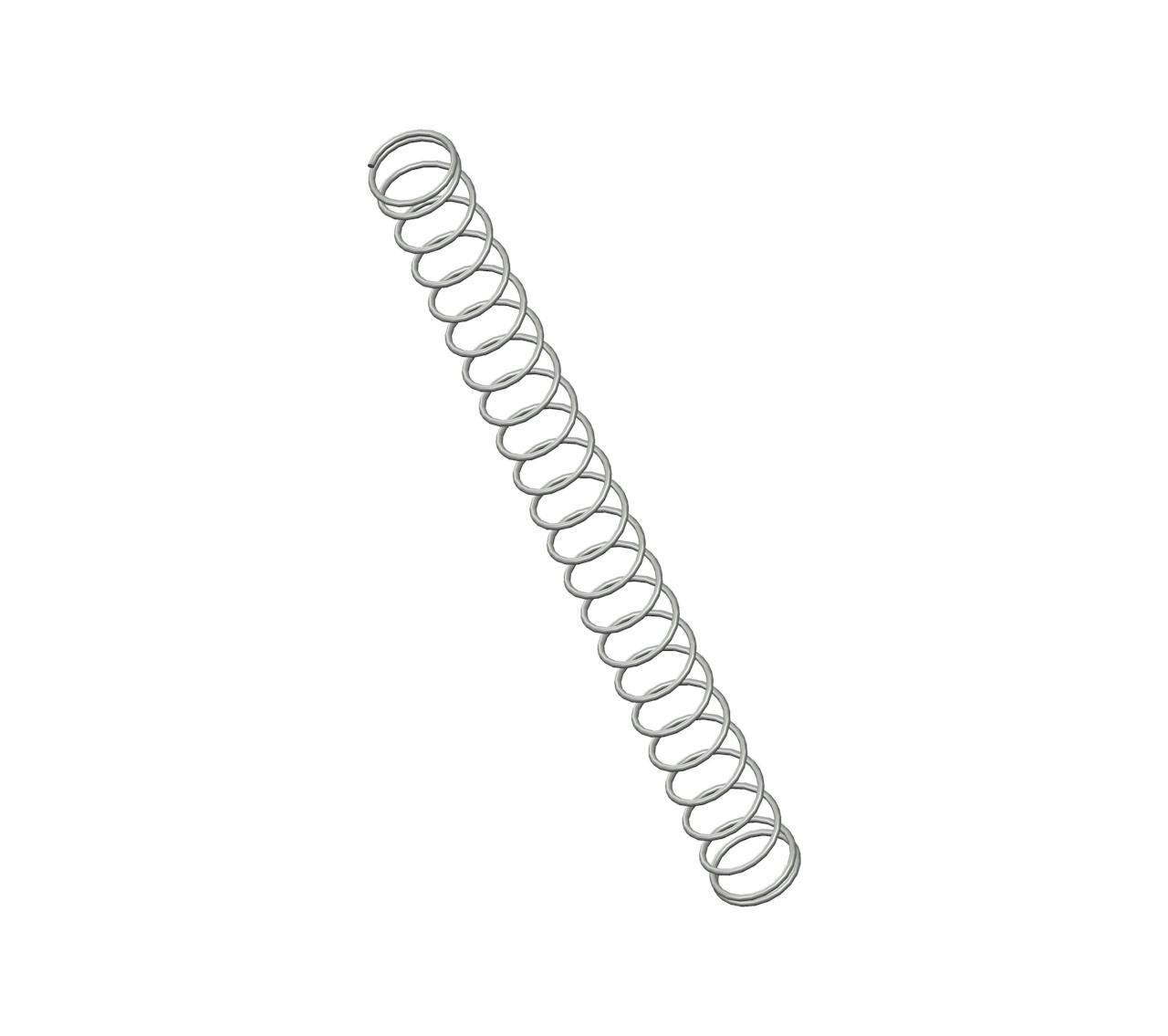

B14-42CS - 2.25" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 23 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.16".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B14-42 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 2.25 in |
| Inside Diameter | 0.16 in |
| Material | Music Wire |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 0.5 lbs/in |
| SKU | B14-42CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 1.9 in |
| Suggested Max Load | 0.96 lbf |
| Total Coils | 23 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B14-42 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 57.15 mm |
| Inside Diameter | 4.06 mm |
| Material | Music Wire |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.09 N/mm |
| SKU | B14-42CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 48.26 mm |
| Suggested Max Load | 4.27 N |
| Total Coils | 23 |
| Wire Diameter | 0.36 mm |
The compression spring B14-42CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B14-42 compression spring design exhibits exceptional tensile strength and resilience.
The B14-42 design is manufactured with a free length of 2.25", with an outer diameter of 0.188", an inner diameter of 0.16", and a total of 23 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.5 lbs/in.
The B14-42CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B14-42 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B14-42 design is manufactured with a free length of 2.25", with an outer diameter of 0.188", an inner diameter of 0.16", and a total of 23 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.5 lbs/in.
The B14-42CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B14-42 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
