Century Spring

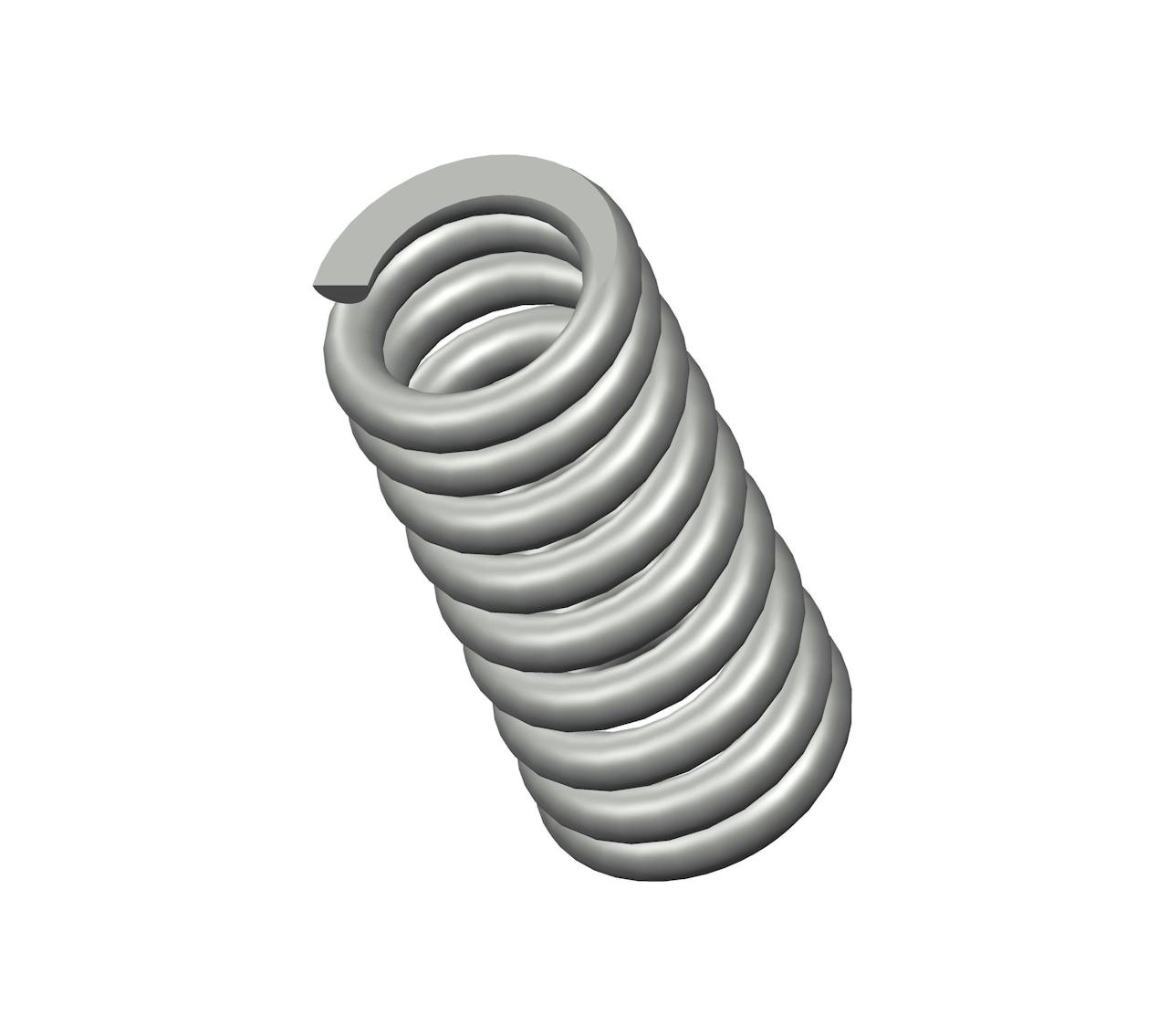

B14-35CS - 0.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.223".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B14-35
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.223 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 117 lbs/in
SKU B14-35CS
Solid Length 0.54 in
Suggested Max Deflection 0.18 in
Suggested Max Load 22 lbf
Total Coils 9
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B14-35
Ends Closed & Ground
Finish None
Free Length 19.05 mm
Inside Diameter 5.66 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 20.49 N/mm
SKU B14-35CS
Solid Length 13.72 mm
Suggested Max Deflection 4.57 mm
Suggested Max Load 97.86 N
Total Coils 9
Wire Diameter 1.52 mm
The B14-35 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B14-35CS compression spring is designed with a free length of 0.75" total of 10 coils, and a rate of 6.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B14-35 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
