Century Spring

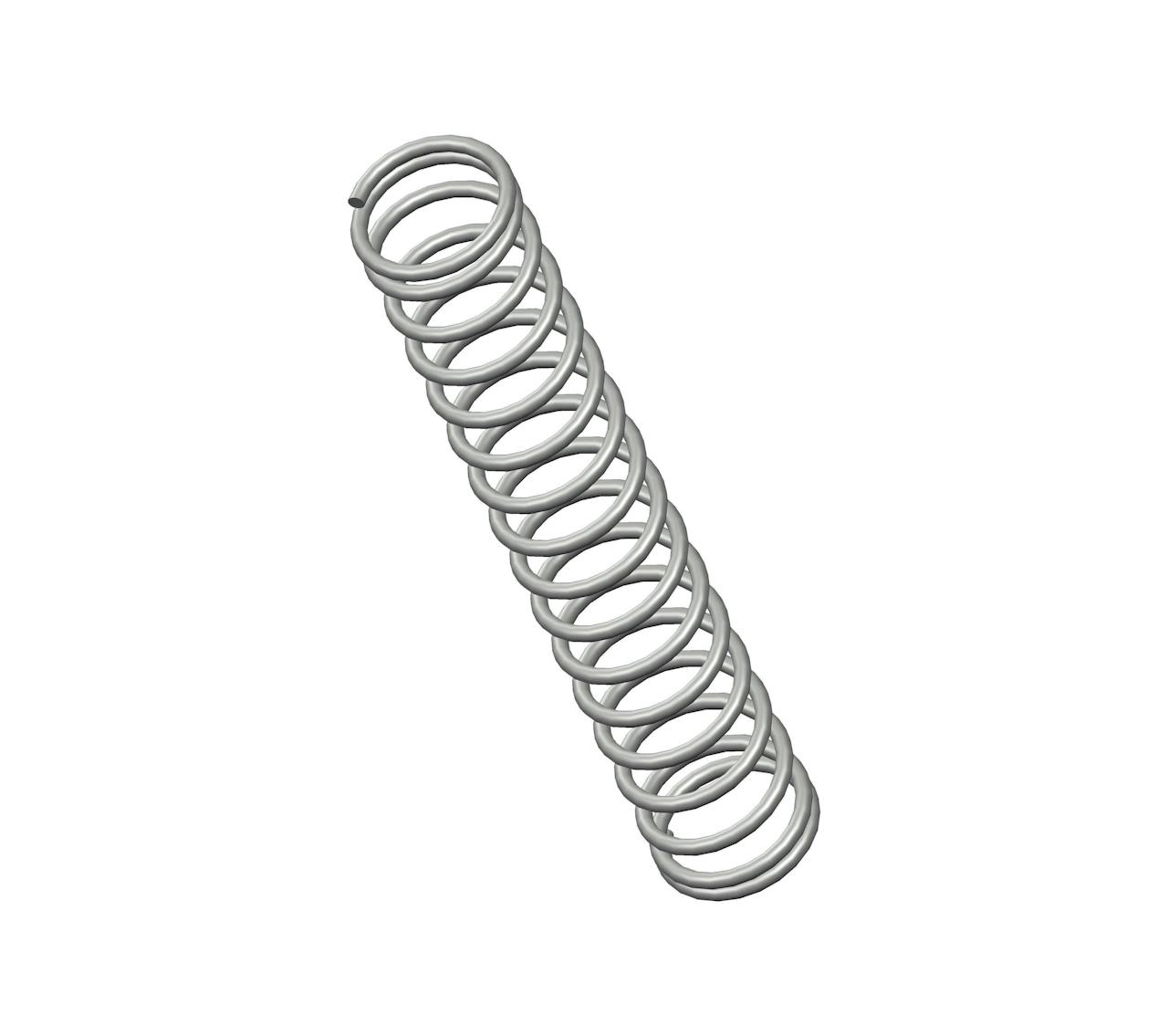

B14-27CS - 2" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 17 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.275".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B14-27
Ends Closed
Finish Zinc
Free Length 2 in
Inside Diameter 0.275 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 4.3 lbs/in
SKU B14-27CS
Solid Length 0.61 in
Suggested Max Deflection 1.1 in
Suggested Max Load 4.6 lbf
Total Coils 17
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B14-27
Ends Closed
Finish Zinc
Free Length 50.8 mm
Inside Diameter 6.99 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 0.75 N/mm
SKU B14-27CS
Solid Length 15.49 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 20.46 N
Total Coils 17
Wire Diameter 0.86 mm
The B14-27CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.034" diameter spring steel, the B14-27 spring design exhibits reliable strength across its 17 active coils, withstanding repeated compression cycles with a maximum load of 4.6 lbf without succumbing to fatigue.

We manufacture the B14-27 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 4.3 lbs/in along its recommended maximum of 1.1" deflection. For best results, your application should fully accommodate the inner (0.275") and outer (0.343") diameters of this spring and be designed for its closed end configuration.
