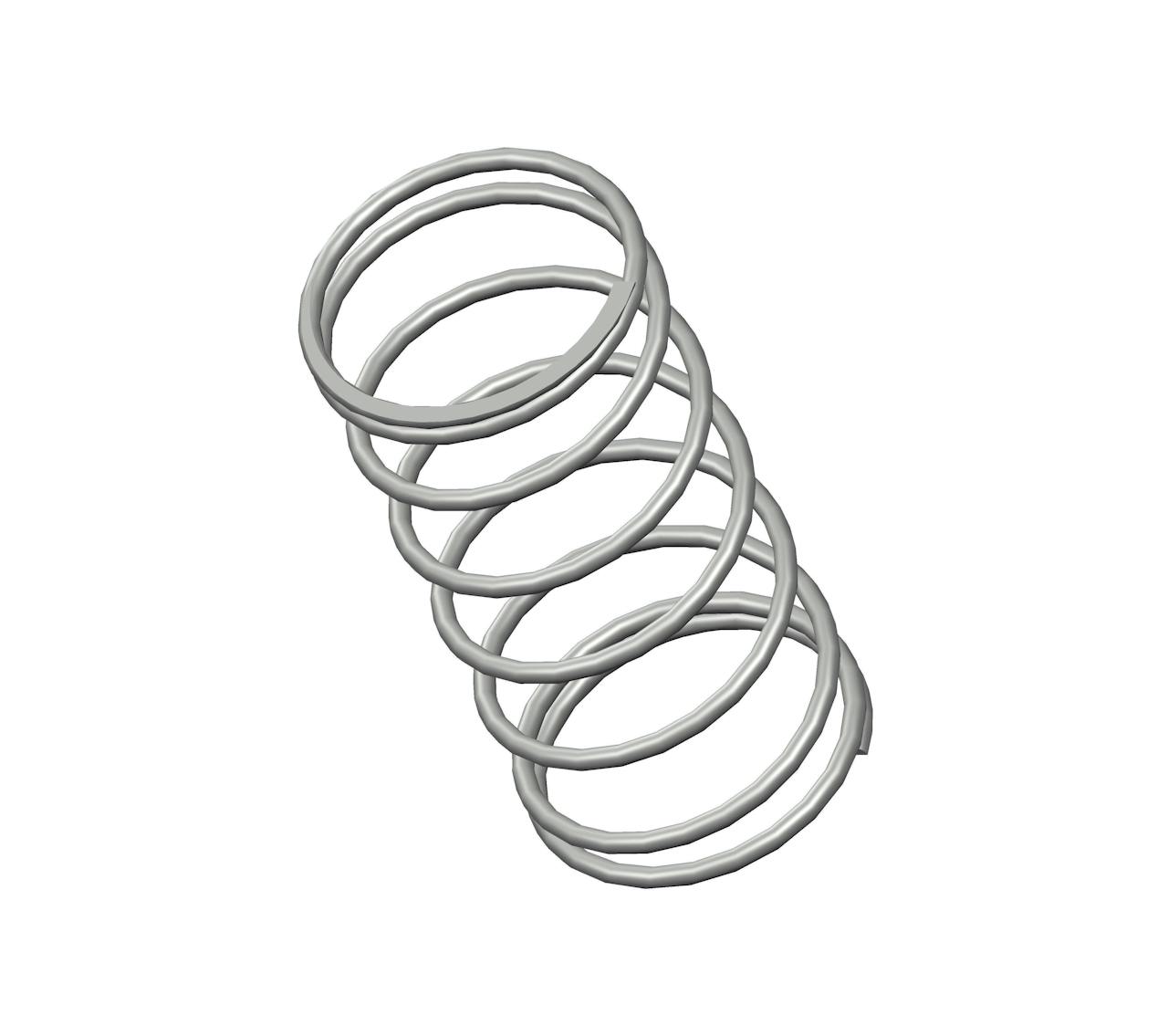

B12-52CS - 2.13" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 1.015", and an I.D. of 0.89".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B12-52 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.13 in |
| Inside Diameter | 0.89 in |
| Material | Spring Steel |
| Outside Diameter | 1.015 in |
| Part Type | Standard |
| Rate | 4.4 lbs/in |
| SKU | B12-52CS |
| Solid Length | 0.5 in |
| Suggested Max Deflection | 1.6 in |
| Suggested Max Load | 7.1 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B12-52 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 54.1 mm |
| Inside Diameter | 22.61 mm |
| Material | Spring Steel |
| Outside Diameter | 25.78 mm |
| Part Type | Standard |
| Rate | 0.77 N/mm |
| SKU | B12-52CS |
| Solid Length | 12.7 mm |
| Suggested Max Deflection | 40.64 mm |
| Suggested Max Load | 31.58 N |
| Total Coils | 8 |
| Wire Diameter | 1.59 mm |
The compression spring B12-52CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B12-52 compression spring design exhibits exceptional tensile strength and resilience.
The B12-52 design is manufactured with a free length of 2.13", with an outer diameter of 1.015", an inner diameter of 0.89", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.4 lbs/in.
The B12-52CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B12-52 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B12-52 design is manufactured with a free length of 2.13", with an outer diameter of 1.015", an inner diameter of 0.89", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.4 lbs/in.
The B12-52CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B12-52 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
