B12-33CS - 0.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

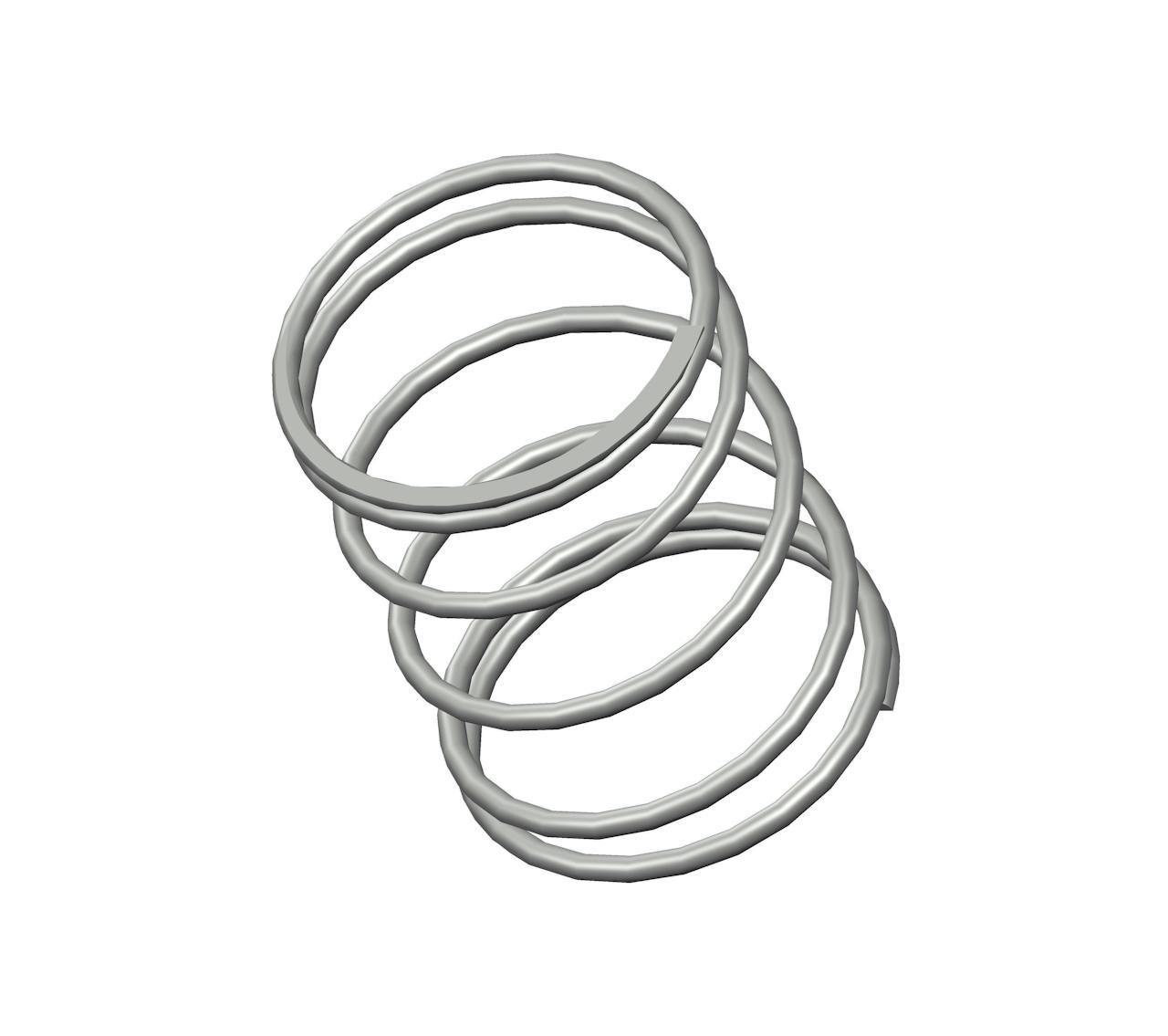

Compression spring manufactured from music wire with 6 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.331".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B12-33 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.331 in |
| Material | Music Wire |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 1.9 lbs/in |
| SKU | B12-33CS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.37 in |
| Suggested Max Load | 0.7 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B12-33 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 8.41 mm |
| Material | Music Wire |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.33 N/mm |
| SKU | B12-33CS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 9.4 mm |
| Suggested Max Load | 3.11 N |
| Total Coils | 6 |
| Wire Diameter | 0.56 mm |
The B12-33 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B12-33CS compression spring is designed with a free length of 0.75" total of 8 coils, and a rate of 1.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B12-33 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B12-33CS compression spring is designed with a free length of 0.75" total of 8 coils, and a rate of 1.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B12-33 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
