B12-32CS - 0.75" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

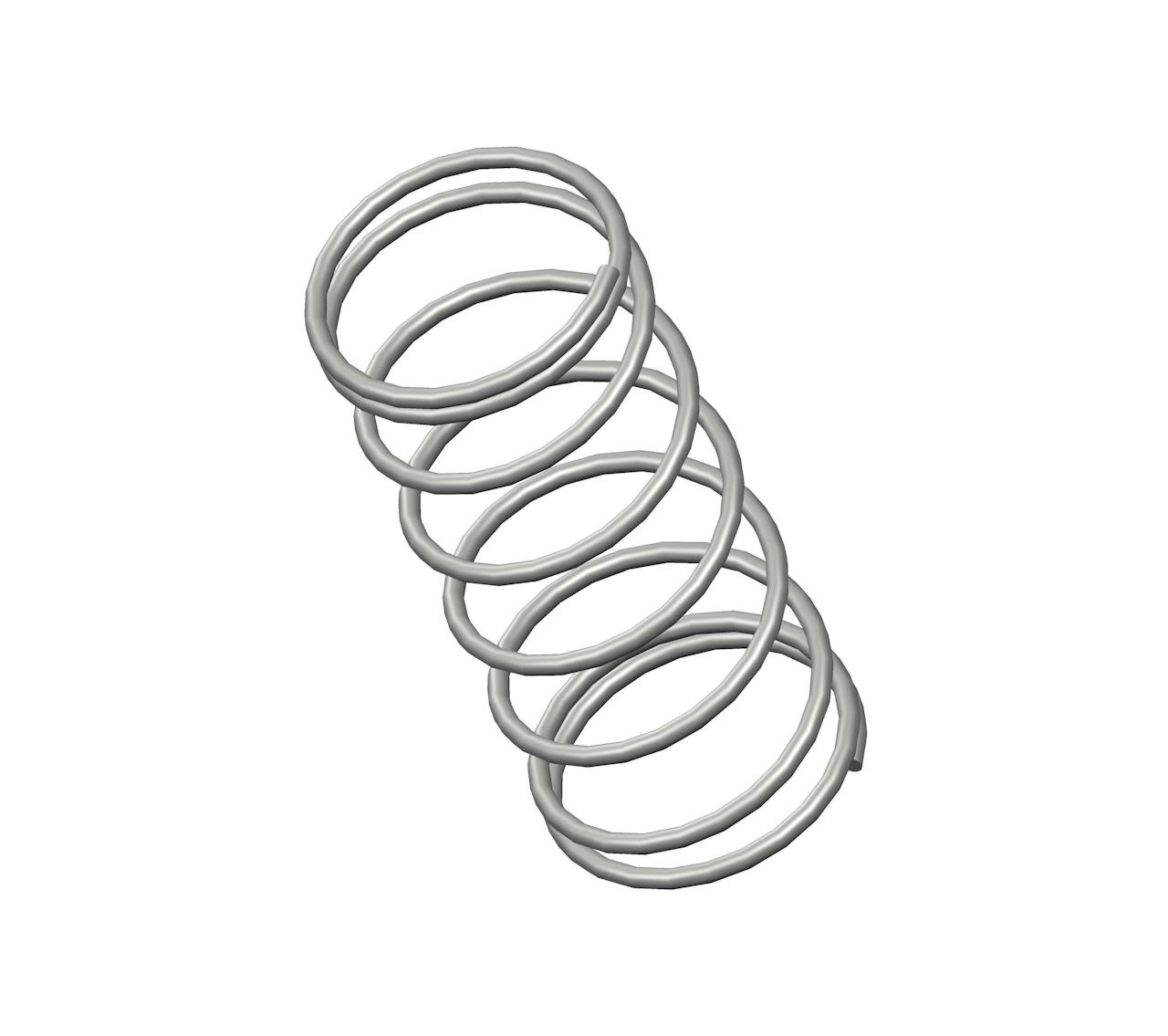

Compression spring manufactured from music wire with 8 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.272".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B12-32 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.272 in |
| Material | Music Wire |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 1.5 lbs/in |
| SKU | B12-32CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.57 in |
| Suggested Max Load | 0.88 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B12-32 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 6.91 mm |
| Material | Music Wire |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 0.26 N/mm |
| SKU | B12-32CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 14.48 mm |
| Suggested Max Load | 3.91 N |
| Total Coils | 8 |
| Wire Diameter | 0.51 mm |
The compression spring B12-32CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B12-32 compression spring design exhibits exceptional tensile strength and resilience.
The B12-32 design is manufactured with a free length of 0.75", with an outer diameter of 0.312", an inner diameter of 0.272", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.5 lbs/in.
The B12-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B12-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
