Century Spring

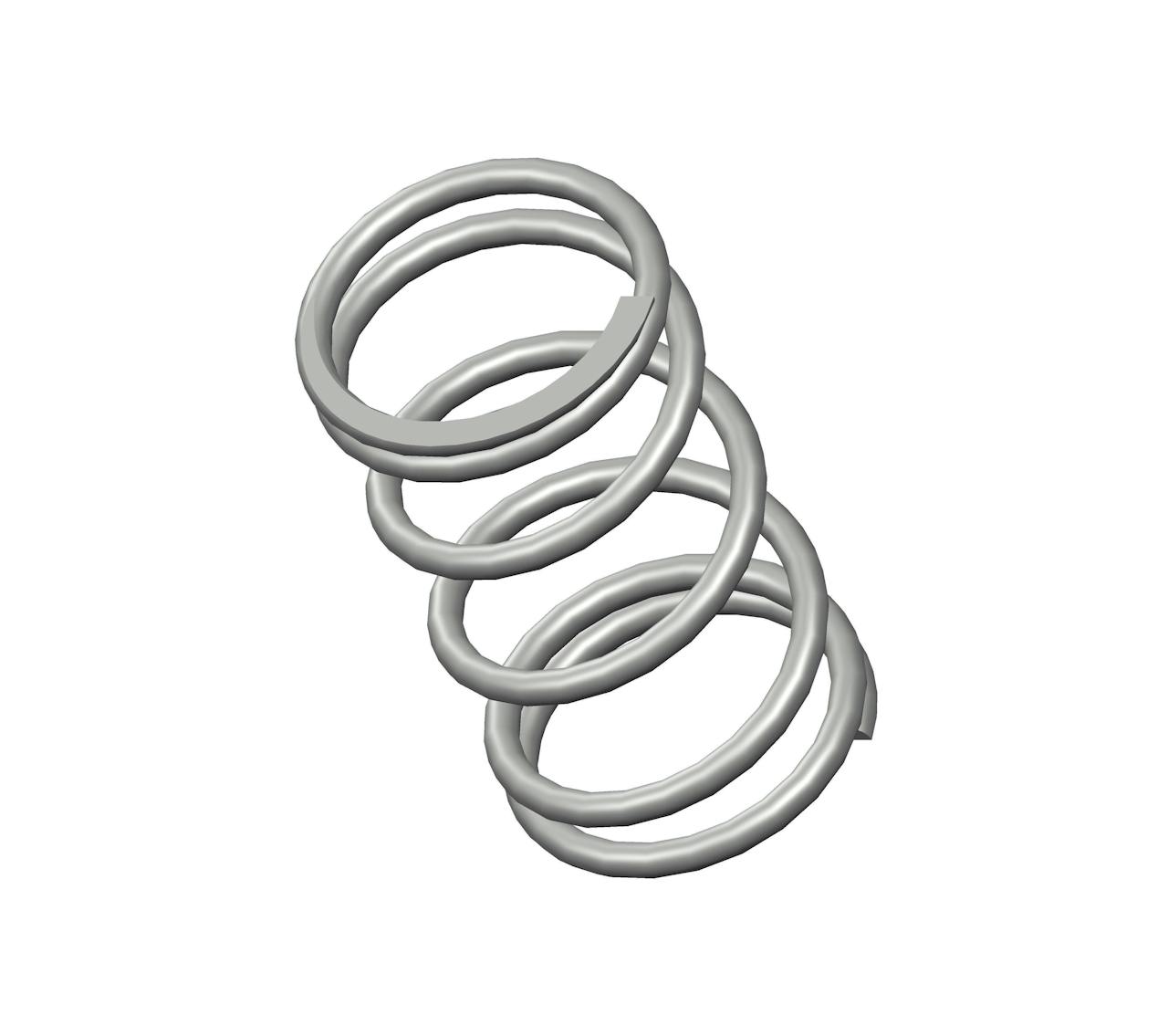

B12-26CS - 0.69" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.305".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B12-26
Ends Closed & Ground
Finish None
Free Length 0.69 in
Inside Diameter 0.305 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 14 lbs/in
SKU B12-26CS
Solid Length 0.21 in
Suggested Max Deflection 0.32 in
Suggested Max Load 4.4 lbf
Total Coils 6
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B12-26
Ends Closed & Ground
Finish None
Free Length 17.53 mm
Inside Diameter 7.75 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 2.45 N/mm
SKU B12-26CS
Solid Length 5.33 mm
Suggested Max Deflection 8.13 mm
Suggested Max Load 19.57 N
Total Coils 6
Wire Diameter 0.89 mm
The B12-26 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B12-26CS compression spring is designed with a free length of 0.88" total of 10 coils, and a rate of 315 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B12-26 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
