Century Spring

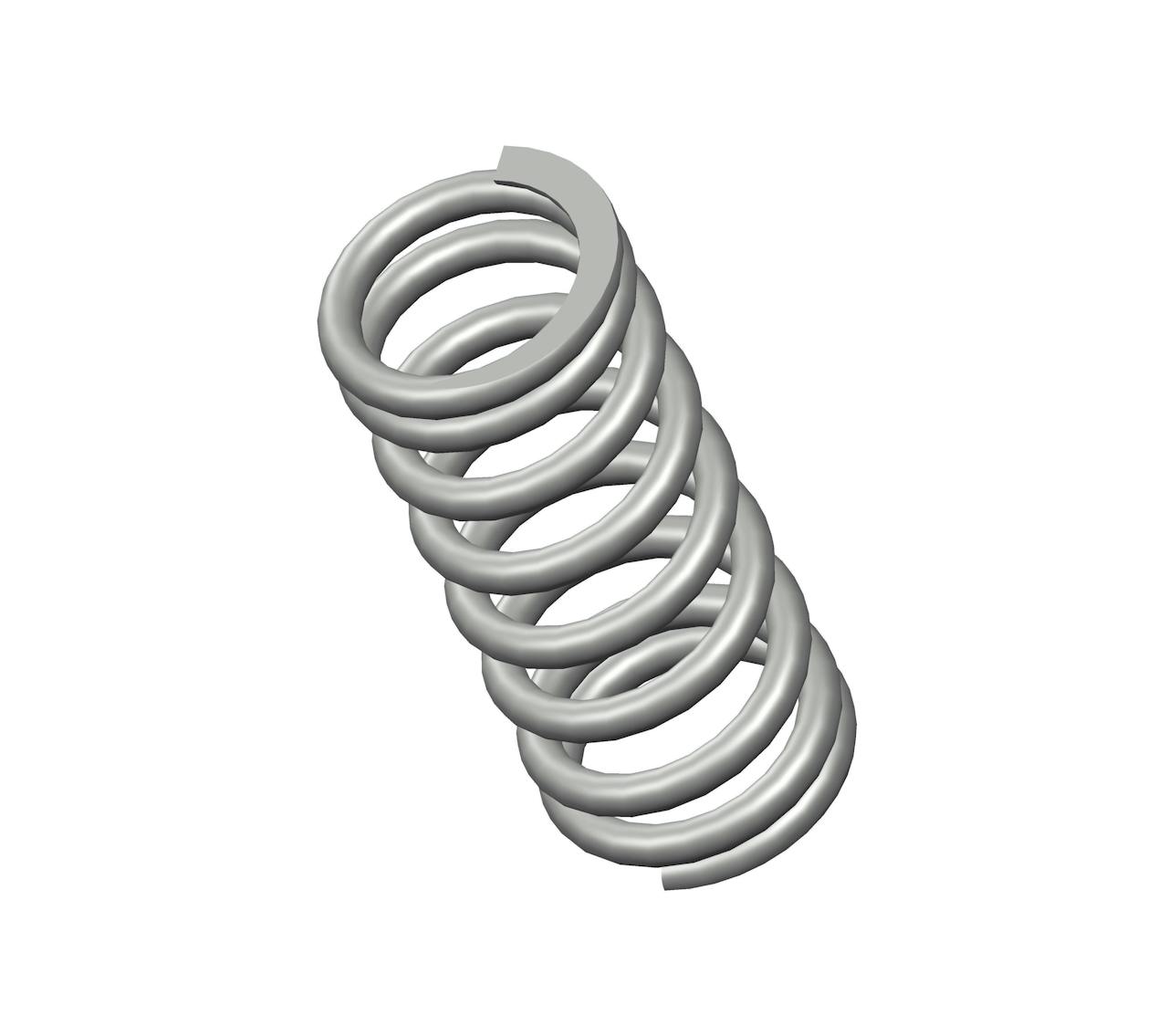

B12-1CS - 0.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8.5 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.228".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B12-1
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.228 in
Material Spring Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 35 lbs/in
SKU B12-1CS
Solid Length 0.36 in
Suggested Max Deflection 0.26 in
Suggested Max Load 8.9 lbf
Total Coils 8.5
Wire Diameter 0.042 in
The compression spring B12-1CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B12-1 compression spring design exhibits exceptional tensile strength and resilience.

The B12-1 design is manufactured with a free length of 0.75", with an outer diameter of 0.312", an inner diameter of 0.228", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 35 lbs/in.

The B12-1CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B12-1 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
