B11-53CS - 2.31" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

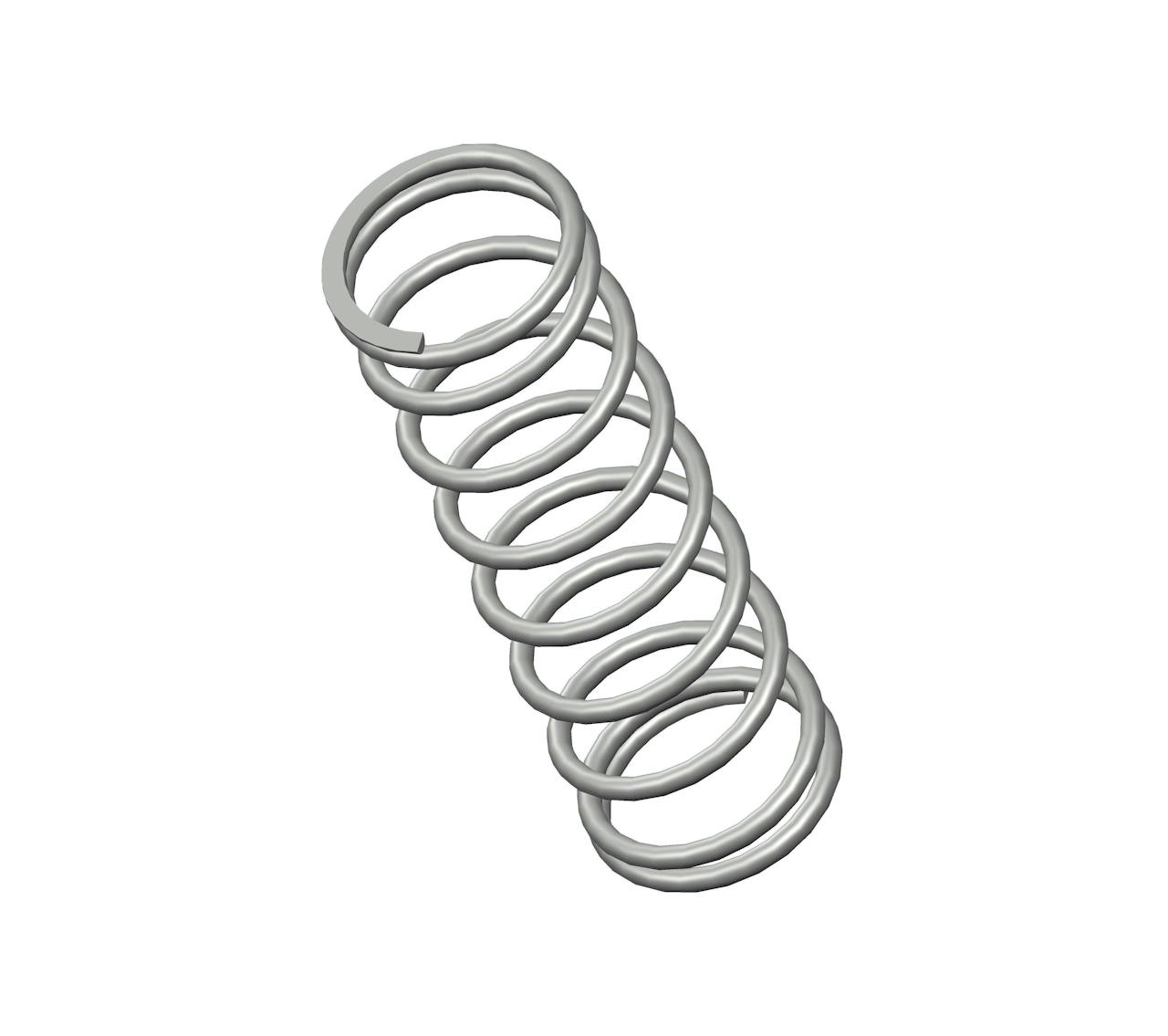

Compression spring manufactured from spring steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.718", and an I.D. of 0.588".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B11-53 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.31 in |
| Inside Diameter | 0.588 in |
| Material | Spring Steel |
| Outside Diameter | 0.718 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | B11-53CS |
| Solid Length | 0.62 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.065 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B11-53 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 58.67 mm |
| Inside Diameter | 14.94 mm |
| Material | Spring Steel |
| Outside Diameter | 18.24 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | B11-53CS |
| Solid Length | 15.75 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 9.5 |
| Wire Diameter | 1.65 mm |
The compression spring B11-53CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B11-53 compression spring design exhibits exceptional tensile strength and resilience.
The B11-53 design is manufactured with a free length of 2.31", with an outer diameter of 0.718", an inner diameter of 0.588", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The B11-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B11-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B11-53 design is manufactured with a free length of 2.31", with an outer diameter of 0.718", an inner diameter of 0.588", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The B11-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B11-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
