Century Spring

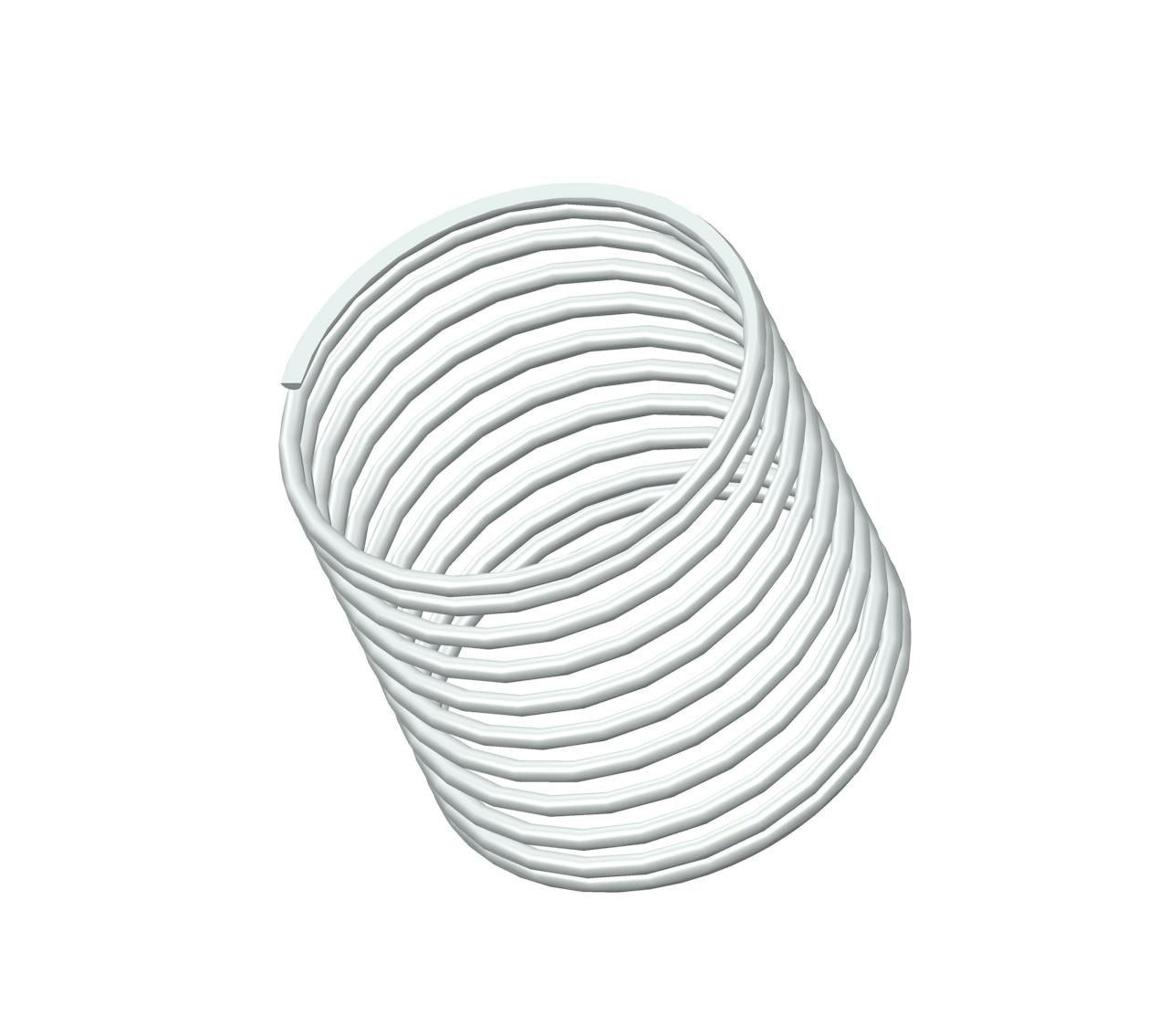

B10-65CS - 1.16" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 1.203", and an I.D. of 1.101".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B10-65
Ends Closed & Ground
Finish None
Free Length 1.16 in
Inside Diameter 1.101 in
Material 302/304 Stainless Steel
Outside Diameter 1.203 in
Part Type Standard
Rate 0.63 lbs/in
SKU B10-65CS
Solid Length 0.56 in
Suggested Max Deflection 0.6 in
Suggested Max Load 0.37 lbf
Total Coils 11
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B10-65
Ends Closed & Ground
Finish None
Free Length 29.46 mm
Inside Diameter 27.97 mm
Material 302/304 Stainless Steel
Outside Diameter 30.56 mm
Part Type Standard
Rate 0.11 N/mm
SKU B10-65CS
Solid Length 14.22 mm
Suggested Max Deflection 15.24 mm
Suggested Max Load 1.65 N
Total Coils 11
Wire Diameter 1.3 mm
The B10-65CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.051" diameter 302/304 stainless steel, the B10-65 spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 0.37 lbf without succumbing to fatigue.

We manufacture the B10-65 design to provide a compression spring that is 1.16" long at rest and provides a consistent rate of 0.63 lbs/in along its recommended maximum of 0.6" deflection. For best results, your application should fully accommodate the inner (1.101") and outer (1.203") diameters of this spring and be designed for its closed & ground end configuration.
