B10-63CS - 2" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

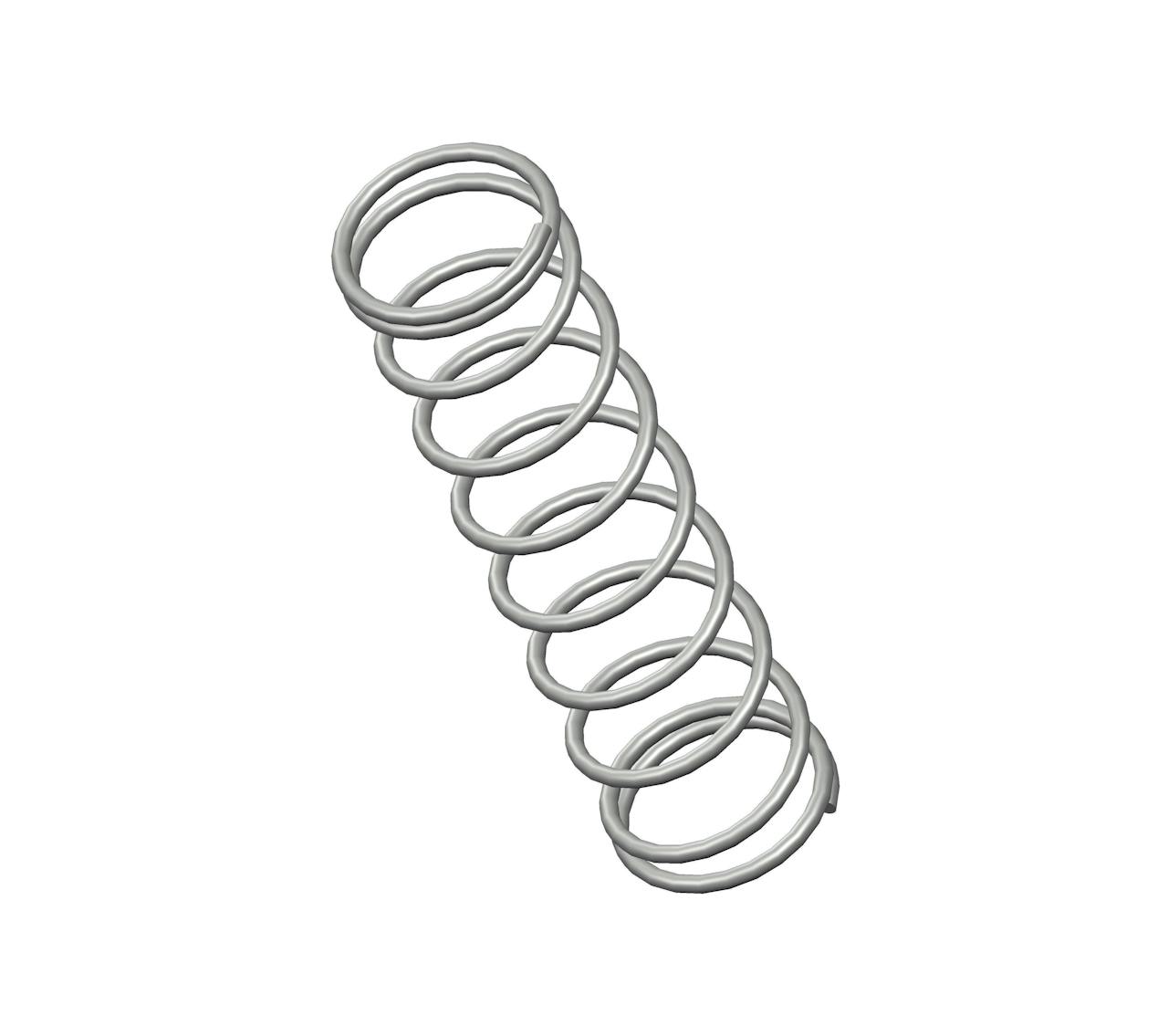

Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.42".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-63 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 2 in |
| Inside Diameter | 0.42 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 4.7 lbs/in |
| SKU | B10-63CS |
| Solid Length | 0.44 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 5 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-63 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 50.8 mm |
| Inside Diameter | 10.67 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 0.82 N/mm |
| SKU | B10-63CS |
| Solid Length | 11.18 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 22.24 N |
| Total Coils | 10 |
| Wire Diameter | 1.02 mm |
The compression spring B10-63CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B10-63 compression spring design exhibits exceptional tensile strength and resilience.
The B10-63 design is manufactured with a free length of 2", with an outer diameter of 0.5", an inner diameter of 0.42", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.7 lbs/in.
The B10-63CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B10-63 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B10-63 design is manufactured with a free length of 2", with an outer diameter of 0.5", an inner diameter of 0.42", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.7 lbs/in.
The B10-63CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B10-63 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
