Century Spring

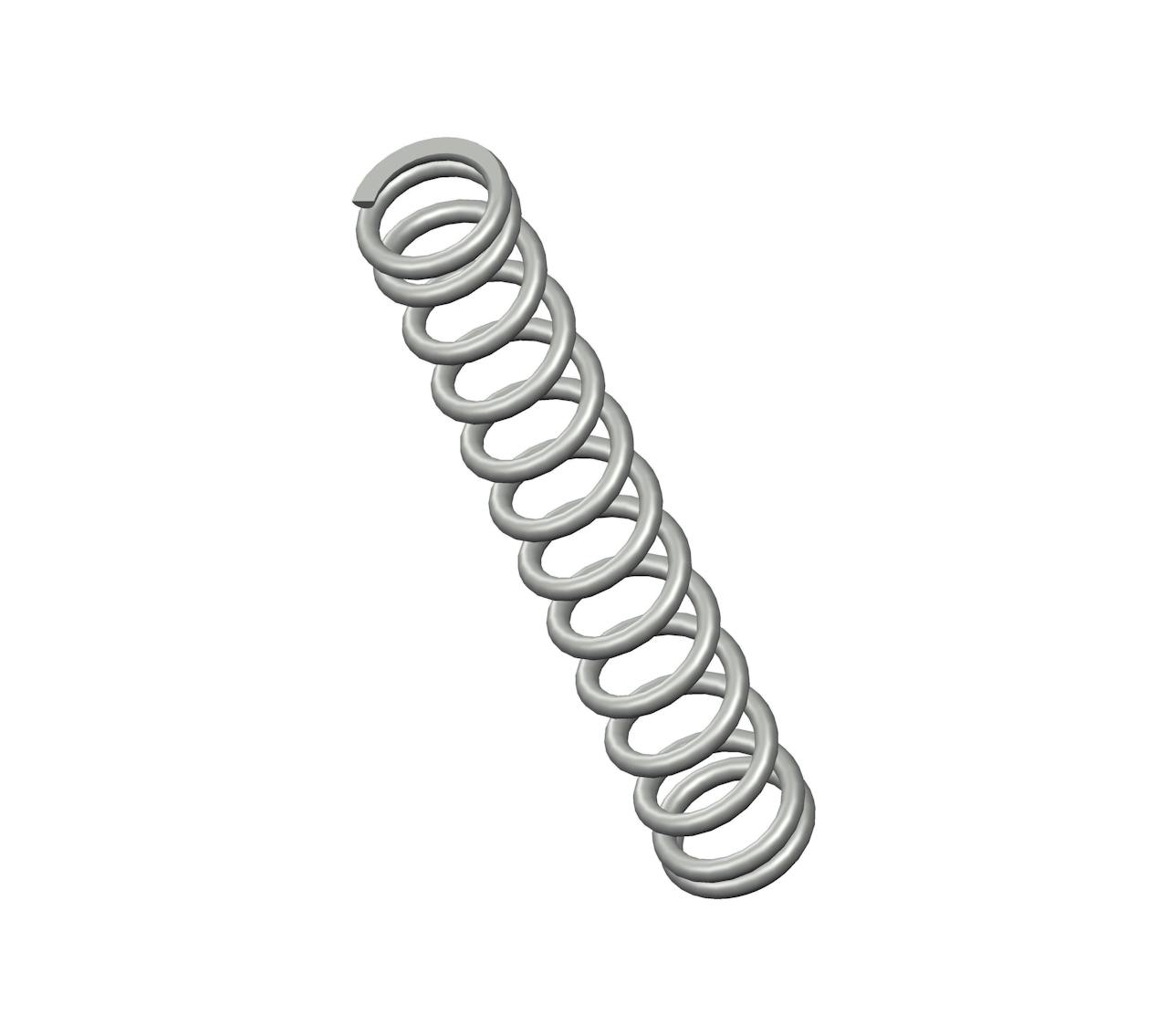

B10-62CS - 2" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.234".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B10-62
Ends Closed & Ground
Finish Zinc
Free Length 2 in
Inside Diameter 0.234 in
Material Spring Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 29 lbs/in
SKU B10-62CS
Solid Length 0.61 in
Suggested Max Deflection 0.41 in
Suggested Max Load 12 lbf
Total Coils 13
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B10-62
Ends Closed & Ground
Finish Zinc
Free Length 50.8 mm
Inside Diameter 5.94 mm
Material Spring Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 5.08 N/mm
SKU B10-62CS
Solid Length 15.49 mm
Suggested Max Deflection 10.41 mm
Suggested Max Load 53.38 N
Total Coils 13
Wire Diameter 1.19 mm
The B10-62CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter spring steel, the B10-62 spring design exhibits reliable strength across its 13 active coils, withstanding repeated compression cycles with a maximum load of 12 lbf without succumbing to fatigue.

We manufacture the B10-62 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 29 lbs/in along its recommended maximum of 0.41" deflection. For best results, your application should fully accommodate the inner (0.234") and outer (0.328") diameters of this spring and be designed for its closed & ground end configuration.
