Century Spring

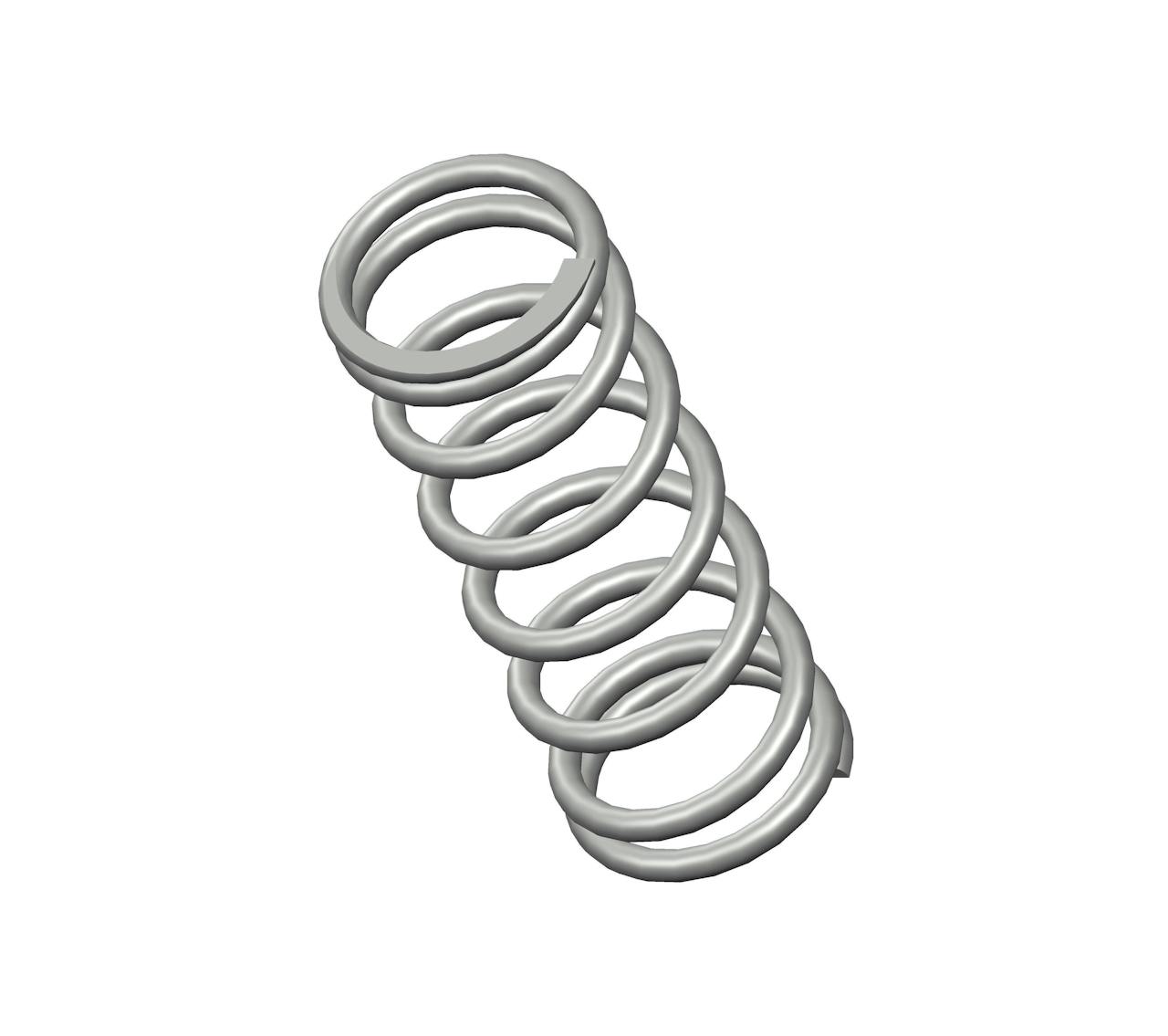

B10-61CS - 1.35" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.376".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B10-61
Ends Closed & Ground
Finish Zinc
Free Length 1.35 in
Inside Diameter 0.376 in
Material Spring Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 26 lbs/in
SKU B10-61CS
Solid Length 0.43 in
Suggested Max Deflection 0.45 in
Suggested Max Load 12 lbf
Total Coils 8
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B10-61
Ends Closed & Ground
Finish Zinc
Free Length 34.29 mm
Inside Diameter 9.55 mm
Material Spring Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 4.55 N/mm
SKU B10-61CS
Solid Length 10.92 mm
Suggested Max Deflection 11.43 mm
Suggested Max Load 53.38 N
Total Coils 8
Wire Diameter 1.37 mm
The B10-61 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B10-61CS compression spring is designed with a free length of 2.25" total of 12.3 coils, and a rate of 9.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B10-61 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
