B10-3CS - 0.94" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

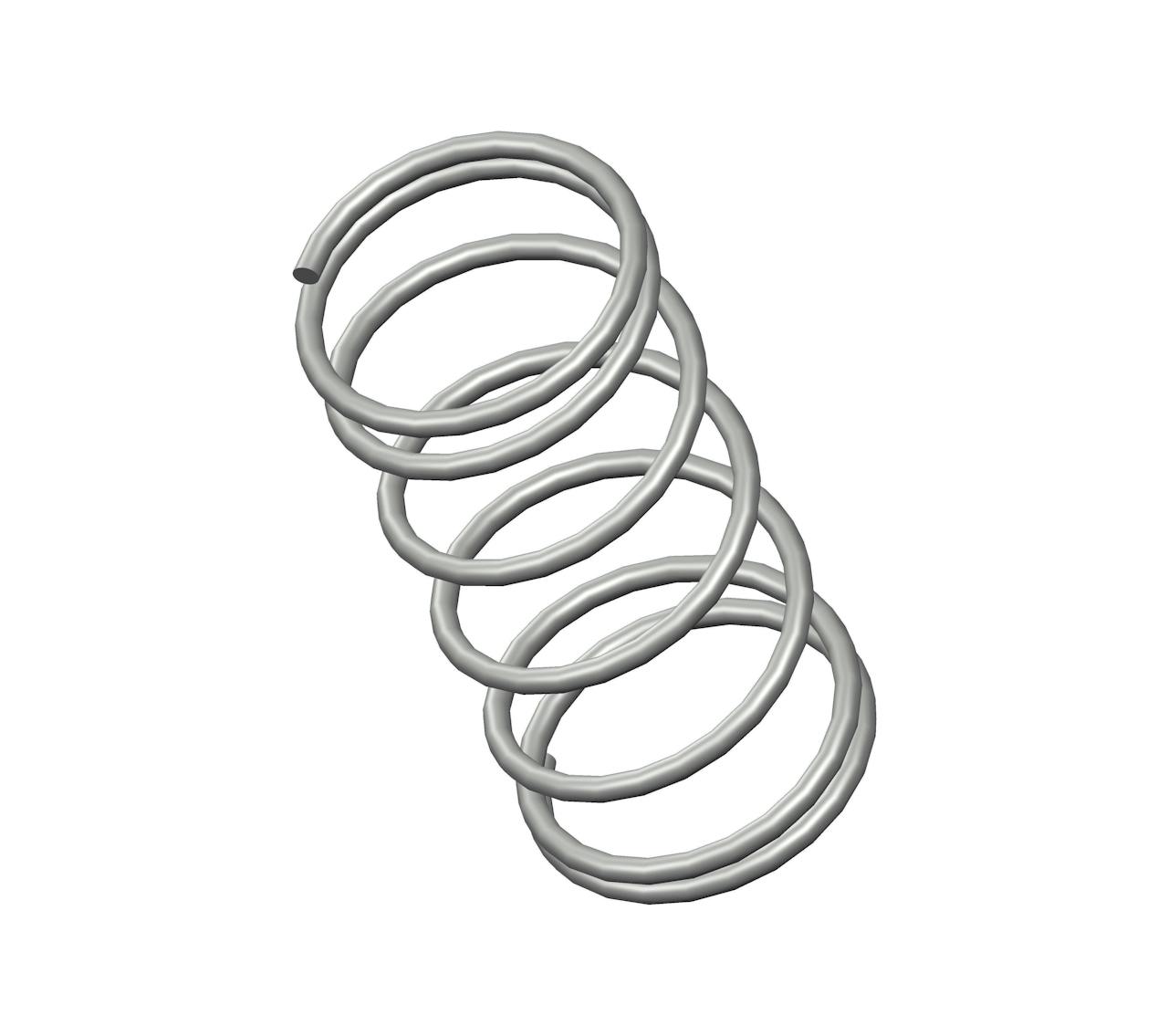

Compression spring manufactured from spring steel with 7 coils and closed ends. This spring features an O.D. of 0.437", and an I.D. of 0.373".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-3 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.94 in |
| Inside Diameter | 0.373 in |
| Material | Spring Steel |
| Outside Diameter | 0.437 in |
| Part Type | Standard |
| Rate | 4.5 lbs/in |
| SKU | B10-3CS |
| Solid Length | 0.26 in |
| Suggested Max Deflection | 0.67 in |
| Suggested Max Load | 3.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-3 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 23.88 mm |
| Inside Diameter | 9.47 mm |
| Material | Spring Steel |
| Outside Diameter | 11.1 mm |
| Part Type | Standard |
| Rate | 0.79 N/mm |
| SKU | B10-3CS |
| Solid Length | 6.6 mm |
| Suggested Max Deflection | 17.02 mm |
| Suggested Max Load | 13.79 N |
| Total Coils | 7 |
| Wire Diameter | 0.81 mm |
The compression spring B10-3CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B10-3 compression spring design exhibits exceptional tensile strength and resilience.
The B10-3 design is manufactured with a free length of 0.94", with an outer diameter of 0.437", an inner diameter of 0.373", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.5 lbs/in.
The B10-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B10-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B10-3 design is manufactured with a free length of 0.94", with an outer diameter of 0.437", an inner diameter of 0.373", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.5 lbs/in.
The B10-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B10-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
