B10-1CS - 0.91" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

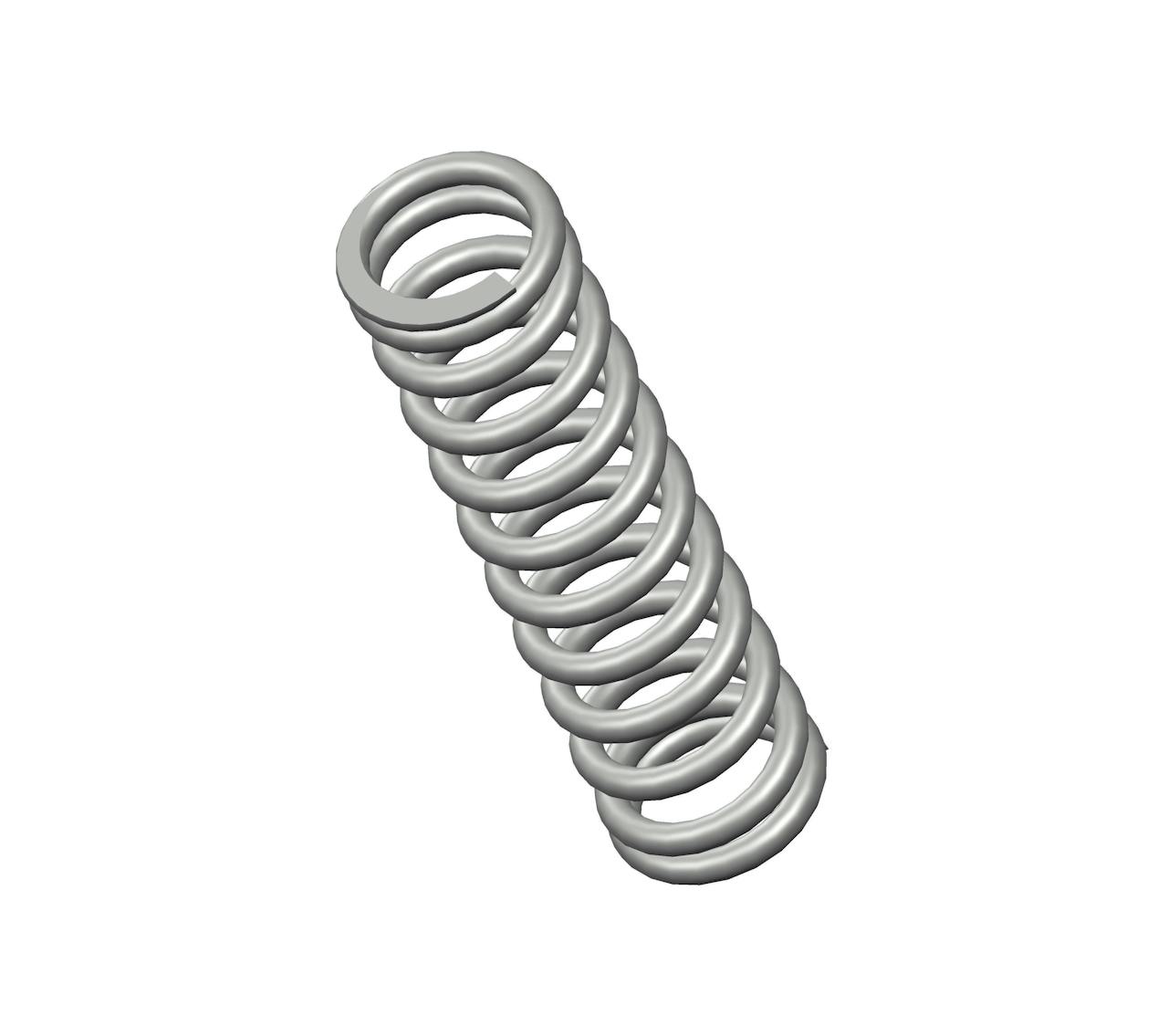

Compression spring manufactured from spring steel with 11.8 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.166".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-1 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.91 in |
| Inside Diameter | 0.166 in |
| Material | Spring Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 25 lbs/in |
| SKU | B10-1CS |
| Solid Length | 0.4 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 6.6 lbf |
| Total Coils | 11.8 |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-1 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 23.11 mm |
| Inside Diameter | 4.22 mm |
| Material | Spring Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 4.38 N/mm |
| SKU | B10-1CS |
| Solid Length | 10.16 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 29.36 N |
| Total Coils | 11.8 |
| Wire Diameter | 0.86 mm |
The B10-1 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B10-1CS compression spring is designed with a free length of 1.31" total of 6.75 coils, and a rate of 15 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B10-1 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B10-1CS compression spring is designed with a free length of 1.31" total of 6.75 coils, and a rate of 15 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B10-1 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
