Century Spring

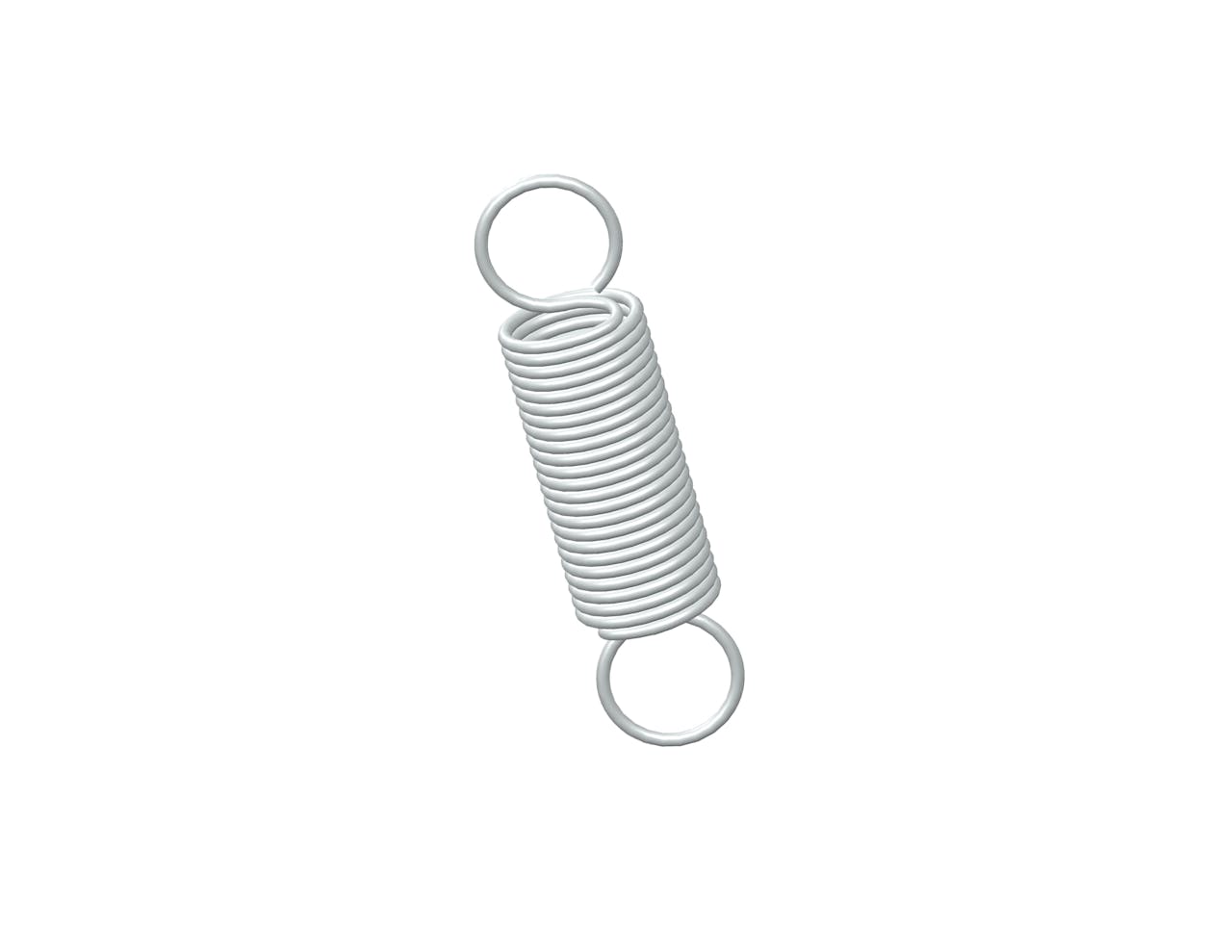

B1-61CS - 2.03 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B1-61
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 2.03 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 2.5 lbs/in
SKU B1-61CS
Sugg Max Deflection 2.2 in
Sugg Max Load 6.4 lbf
Wind Direction Left
Wire Diameter 0.046 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B1-61
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 51.56 mm
Material 302/304 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.44 N/mm
SKU B1-61CS
Sugg Max Deflection 55.88 mm
Sugg Max Load 28.47 N
Wind Direction Left
Wire Diameter 1.17 mm
