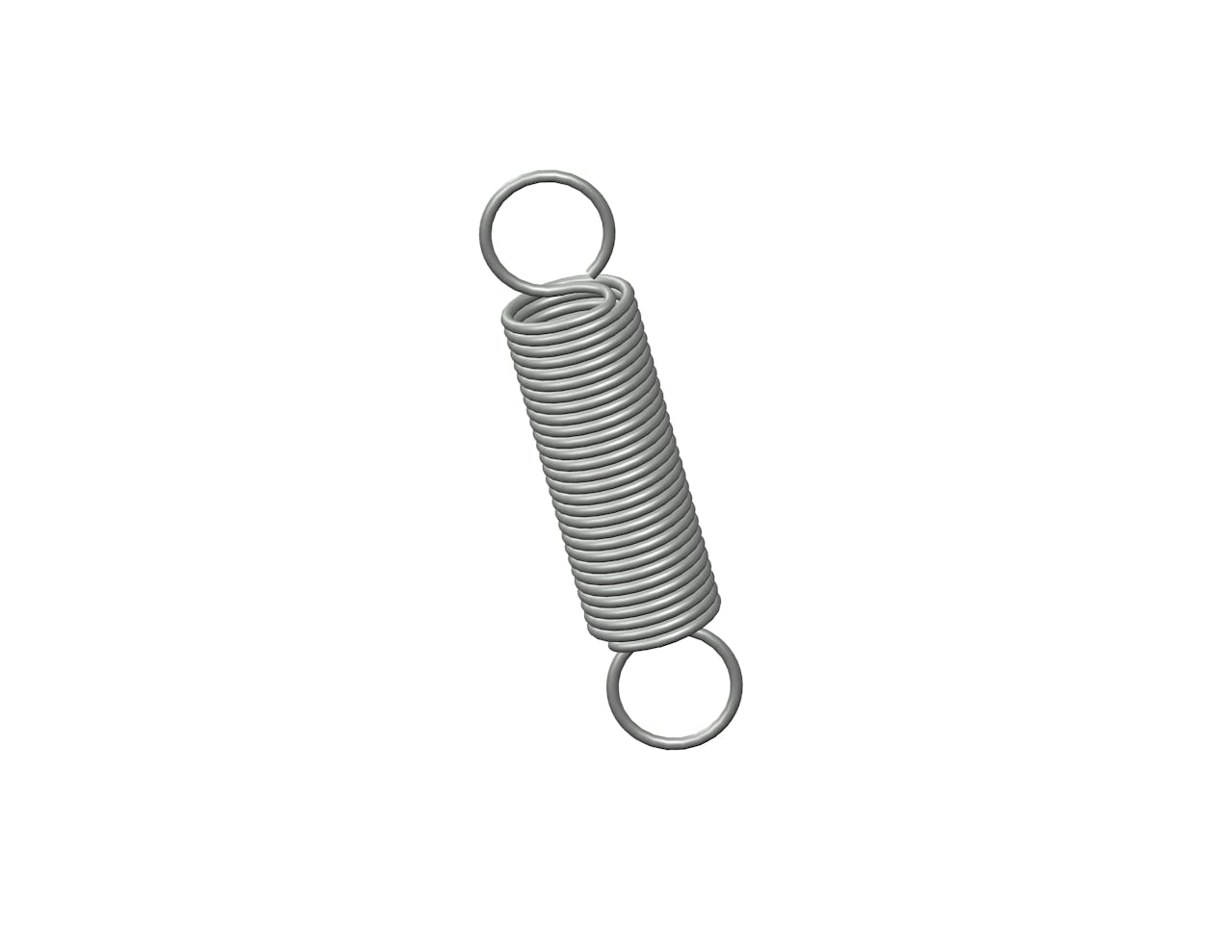

B1-59CS - 2.25 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 0.9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B1-59
Ends Full Loop
Finish None
Initial Tension 0.9 lb
Length 2.25 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 2.2 lbs/in
SKU B1-59CS
Sugg Max Deflection 2.7 in
Sugg Max Load 6.8 lbf
Wire Diameter 0.046 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B1-59
Ends Full Loop
Finish None
Initial Tension 0.41 kg
Length 57.15 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.39 N/mm
SKU B1-59CS
Sugg Max Deflection 68.58 mm
Sugg Max Load 30.25 N
Wire Diameter 1.17 mm
