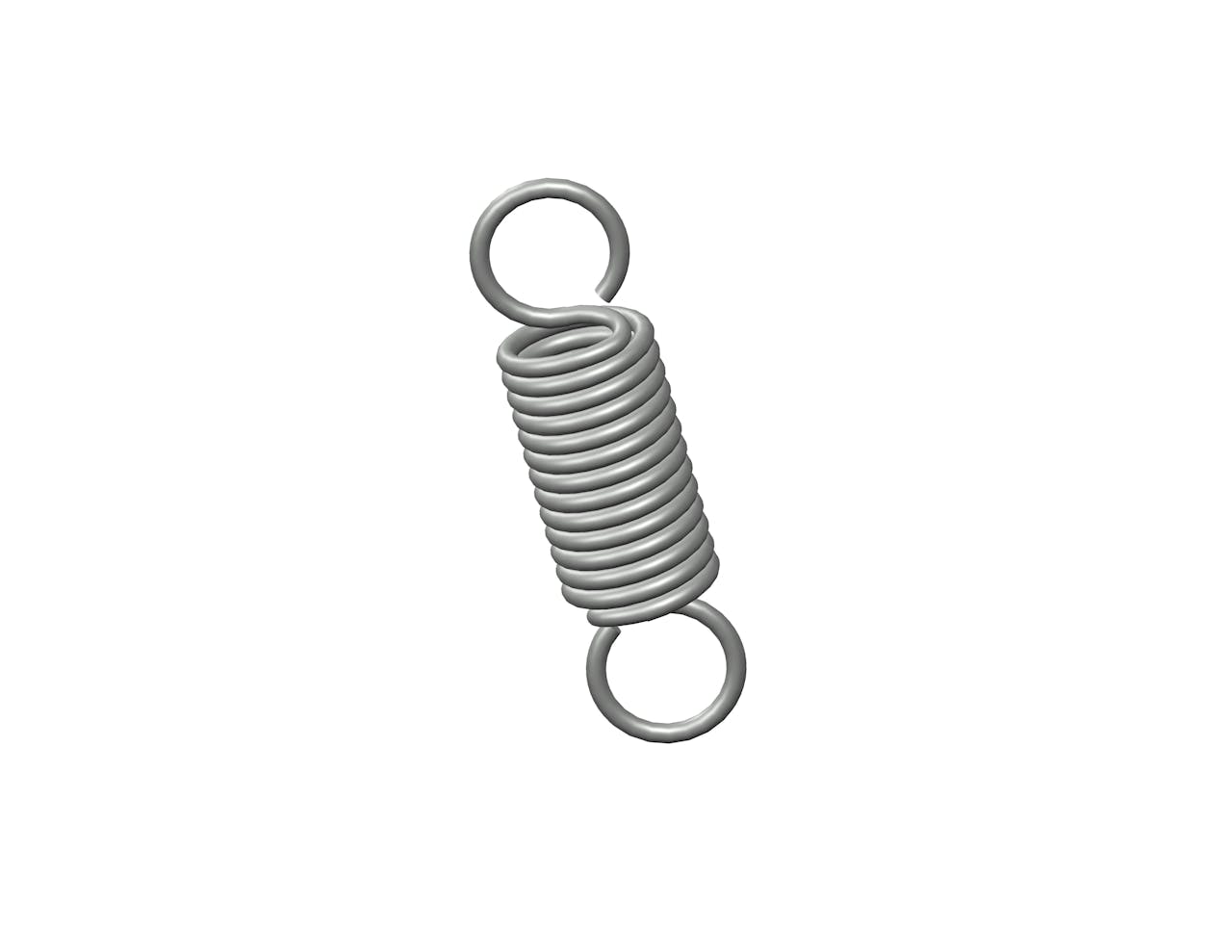

B1-42CS - 1.81 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 3.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B1-42
Ends Full Loop
Finish None
Initial Tension 3.6 lb
Length 1.81 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 16 lbs/in
SKU B1-42CS
Sugg Max Deflection 0.87 in
Sugg Max Load 17 lbf
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B1-42
Ends Full Loop
Finish None
Initial Tension 1.63 kg
Length 45.97 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 2.8 N/mm
SKU B1-42CS
Sugg Max Deflection 22.1 mm
Sugg Max Load 75.62 N
Wire Diameter 1.59 mm
