B1-41CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

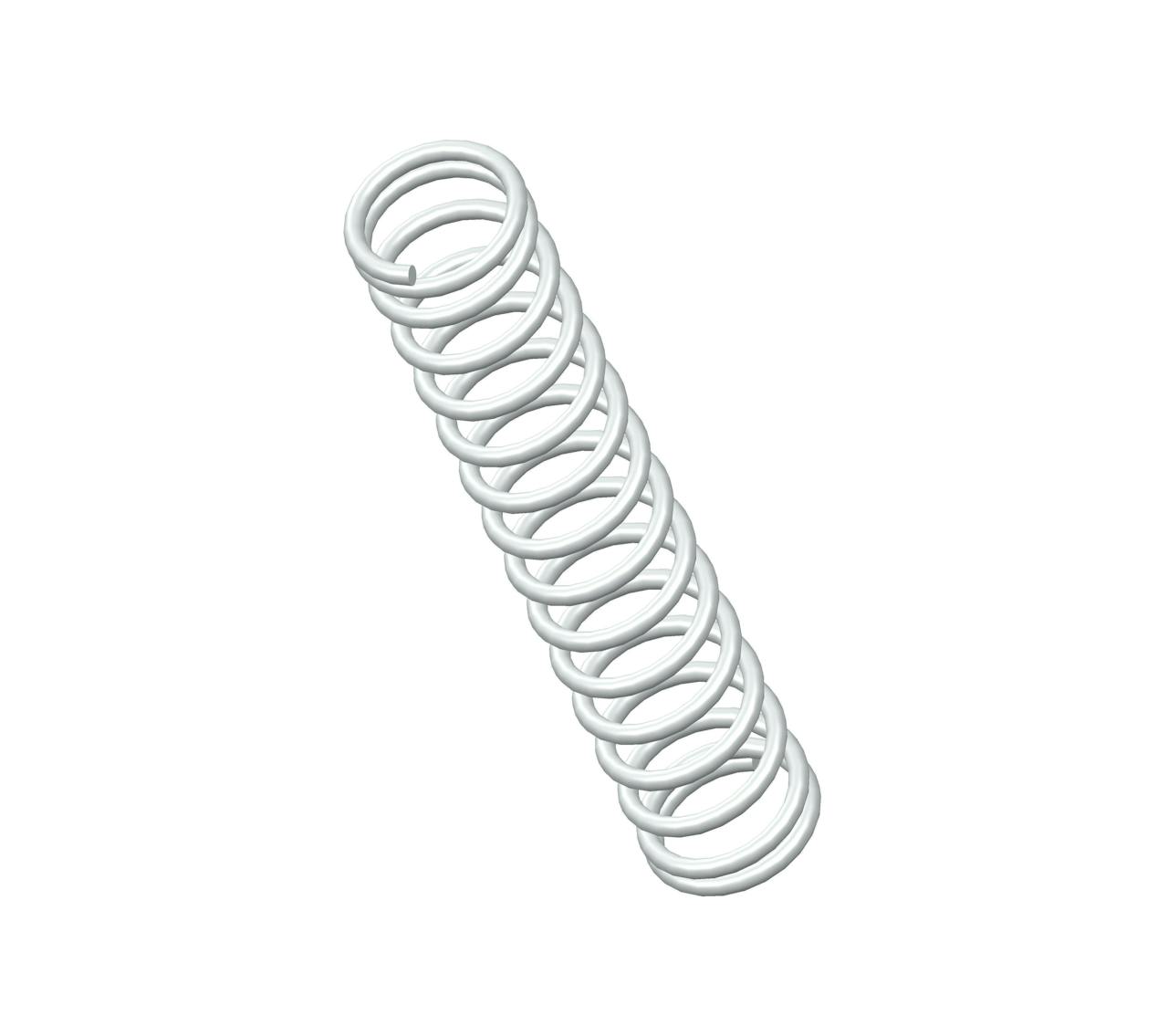

Compression spring manufactured from 302/304 stainless steel with 15.5 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.182".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-41 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.182 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 4.8 lbs/in |
| SKU | B1-41CS |
| Solid Length | 0.43 in |
| Suggested Max Deflection | 0.58 in |
| Suggested Max Load | 2.8 lbf |
| Total Coils | 15.5 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-41 |
| Ends | Closed |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 4.62 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 0.84 N/mm |
| SKU | B1-41CS |
| Solid Length | 10.92 mm |
| Suggested Max Deflection | 14.73 mm |
| Suggested Max Load | 12.45 N |
| Total Coils | 15.5 |
| Wire Diameter | 0.66 mm |
The compression spring B1-41CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the B1-41 compression spring design exhibits exceptional tensile strength and resilience.
The B1-41 design is manufactured with a free length of 1.25", with an outer diameter of 0.234", an inner diameter of 0.182", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.8 lbs/in.
The B1-41CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B1-41 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B1-41 design is manufactured with a free length of 1.25", with an outer diameter of 0.234", an inner diameter of 0.182", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.8 lbs/in.
The B1-41CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B1-41 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
