B1-32CS - 0.59" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

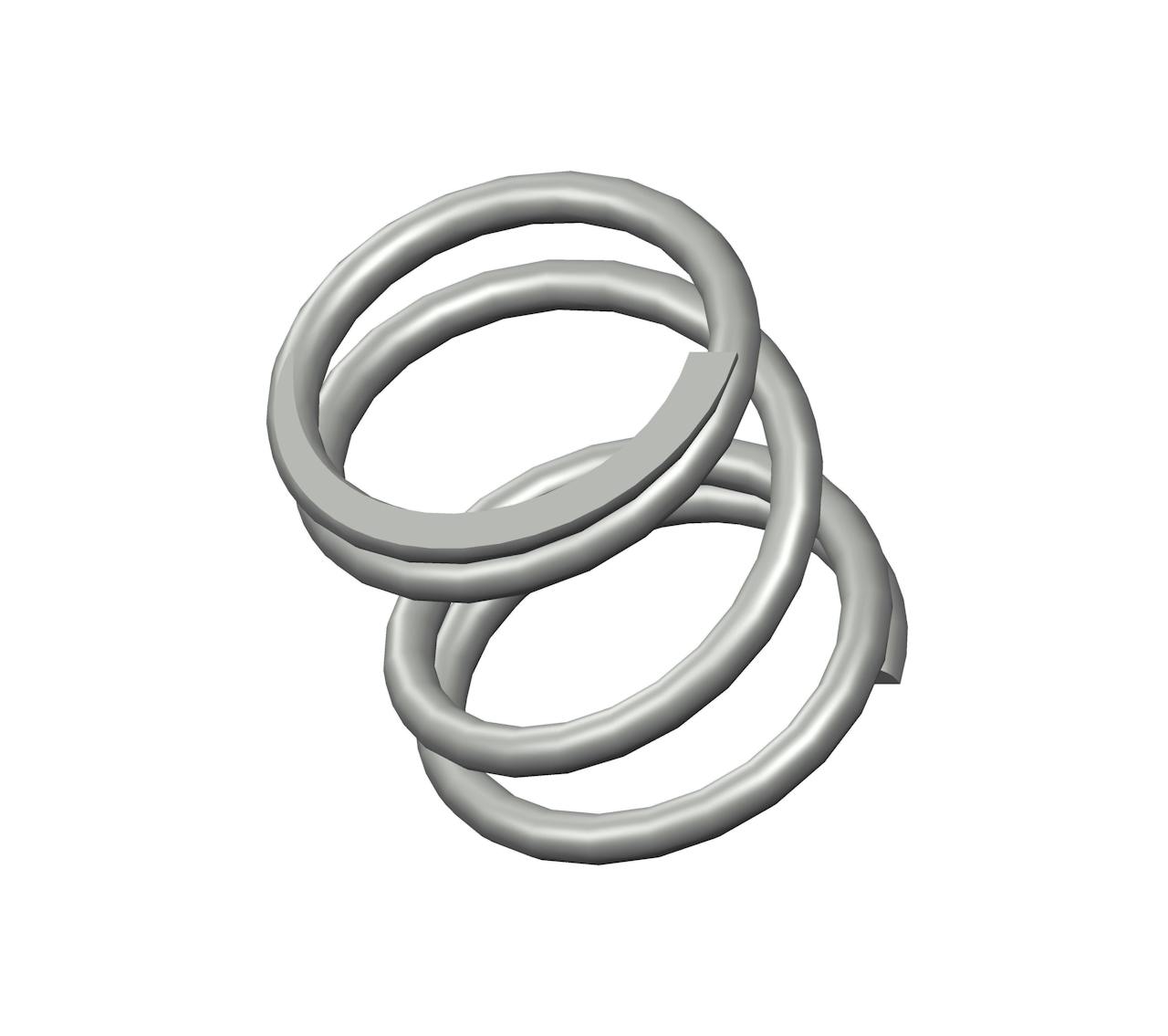

Compression spring manufactured from spring steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.562", and an I.D. of 0.448".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-32 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.59 in |
| Inside Diameter | 0.448 in |
| Material | Spring Steel |
| Outside Diameter | 0.562 in |
| Part Type | Standard |
| Rate | 59 lbs/in |
| SKU | B1-32CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.2 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.057 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-32 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 14.99 mm |
| Inside Diameter | 11.38 mm |
| Material | Spring Steel |
| Outside Diameter | 14.27 mm |
| Part Type | Standard |
| Rate | 10.33 N/mm |
| SKU | B1-32CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 5.08 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 4 |
| Wire Diameter | 1.45 mm |
The compression spring B1-32CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B1-32 compression spring design exhibits exceptional tensile strength and resilience.
The B1-32 design is manufactured with a free length of 0.59", with an outer diameter of 0.562", an inner diameter of 0.448", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 59 lbs/in.
The B1-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B1-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B1-32 design is manufactured with a free length of 0.59", with an outer diameter of 0.562", an inner diameter of 0.448", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 59 lbs/in.
The B1-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B1-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
