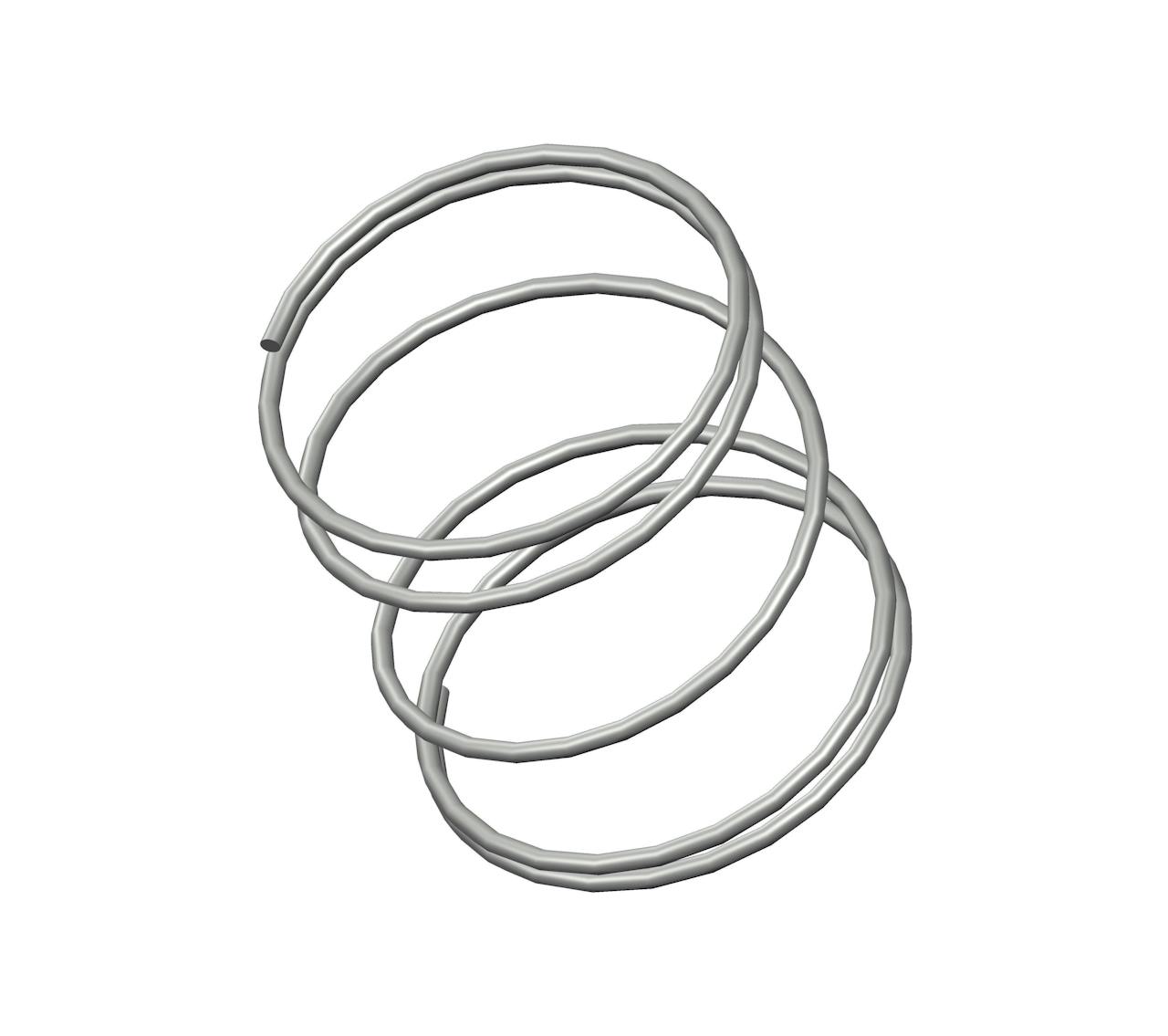

B-71CS - 0.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 5 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.315".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-71 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.38 in |
| Inside Diameter | 0.315 in |
| Material | Music Wire |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 0.52 lbs/in |
| SKU | B-71CS |
| Solid Length | 0.08 in |
| Suggested Max Deflection | 0.29 in |
| Suggested Max Load | 0.15 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-71 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 9.65 mm |
| Inside Diameter | 8 mm |
| Material | Music Wire |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 0.09 N/mm |
| SKU | B-71CS |
| Solid Length | 2.03 mm |
| Suggested Max Deflection | 7.37 mm |
| Suggested Max Load | 0.67 N |
| Total Coils | 5 |
| Wire Diameter | 0.36 mm |
The compression spring B-71CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B-71 compression spring design exhibits exceptional tensile strength and resilience.
The B-71 design is manufactured with a free length of 0.38", with an outer diameter of 0.343", an inner diameter of 0.315", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.52 lbs/in.
The B-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B-71 design is manufactured with a free length of 0.38", with an outer diameter of 0.343", an inner diameter of 0.315", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.52 lbs/in.
The B-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
