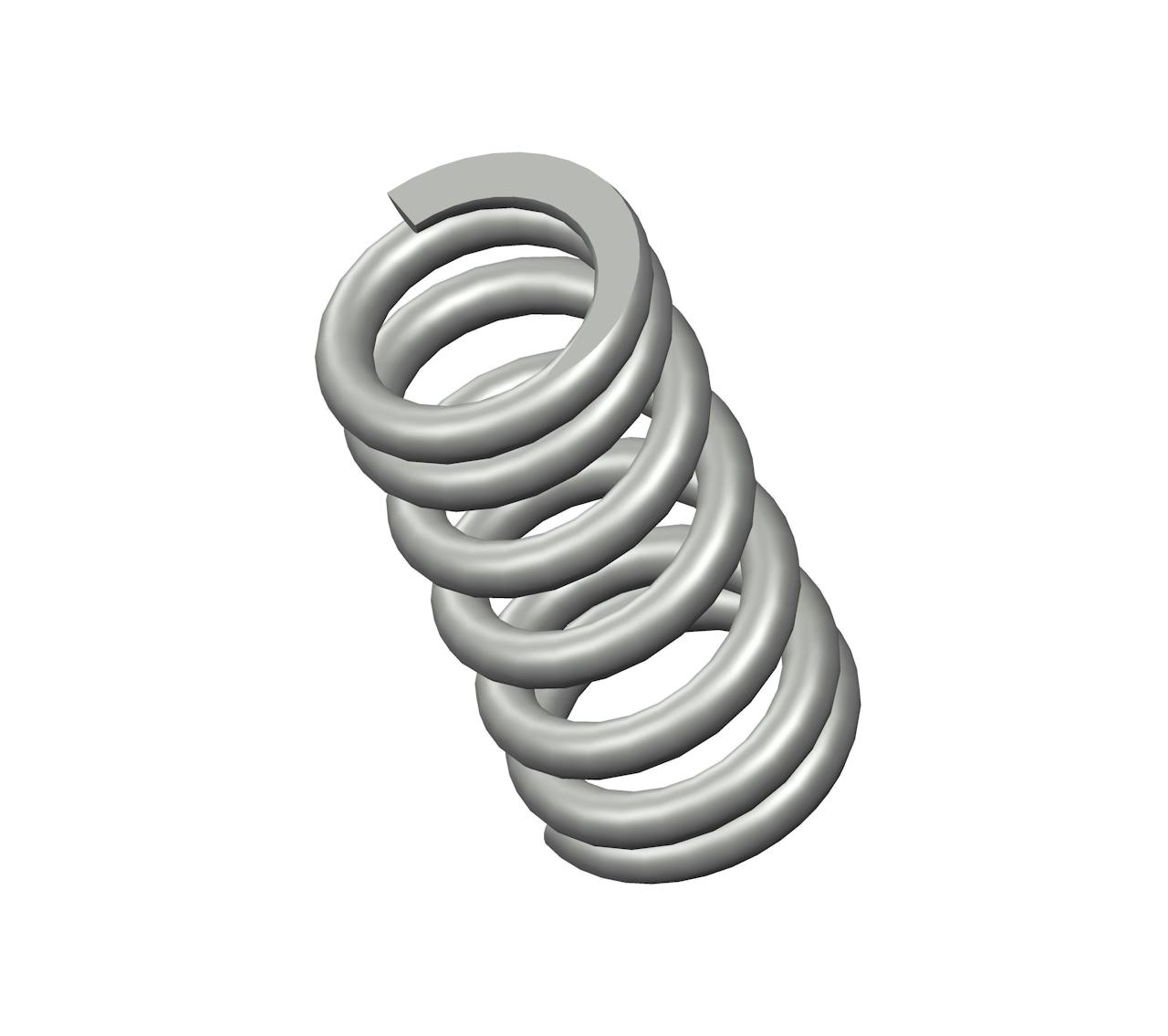

B-53CS - 0.53" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 6.75 coils and closed & ground ends. This spring features an O.D. of 0.266", and an I.D. of 0.18".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-53 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.53 in |
| Inside Diameter | 0.18 in |
| Material | Spring Steel |
| Outside Diameter | 0.266 in |
| Part Type | Standard |
| Rate | 95 lbs/in |
| SKU | B-53CS |
| Solid Length | 0.29 in |
| Suggested Max Deflection | 0.12 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 6.75 |
| Wire Diameter | 0.043 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-53 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 13.46 mm |
| Inside Diameter | 4.57 mm |
| Material | Spring Steel |
| Outside Diameter | 6.76 mm |
| Part Type | Standard |
| Rate | 16.63 N/mm |
| SKU | B-53CS |
| Solid Length | 7.37 mm |
| Suggested Max Deflection | 3.05 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 6.75 |
| Wire Diameter | 1.09 mm |
The compression spring B-53CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B-53 compression spring design exhibits exceptional tensile strength and resilience.
The B-53 design is manufactured with a free length of 0.53", with an outer diameter of 0.266", an inner diameter of 0.18", and a total of 6.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 95 lbs/in.
The B-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B-53 design is manufactured with a free length of 0.53", with an outer diameter of 0.266", an inner diameter of 0.18", and a total of 6.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 95 lbs/in.
The B-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
