B-12CS - 0.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

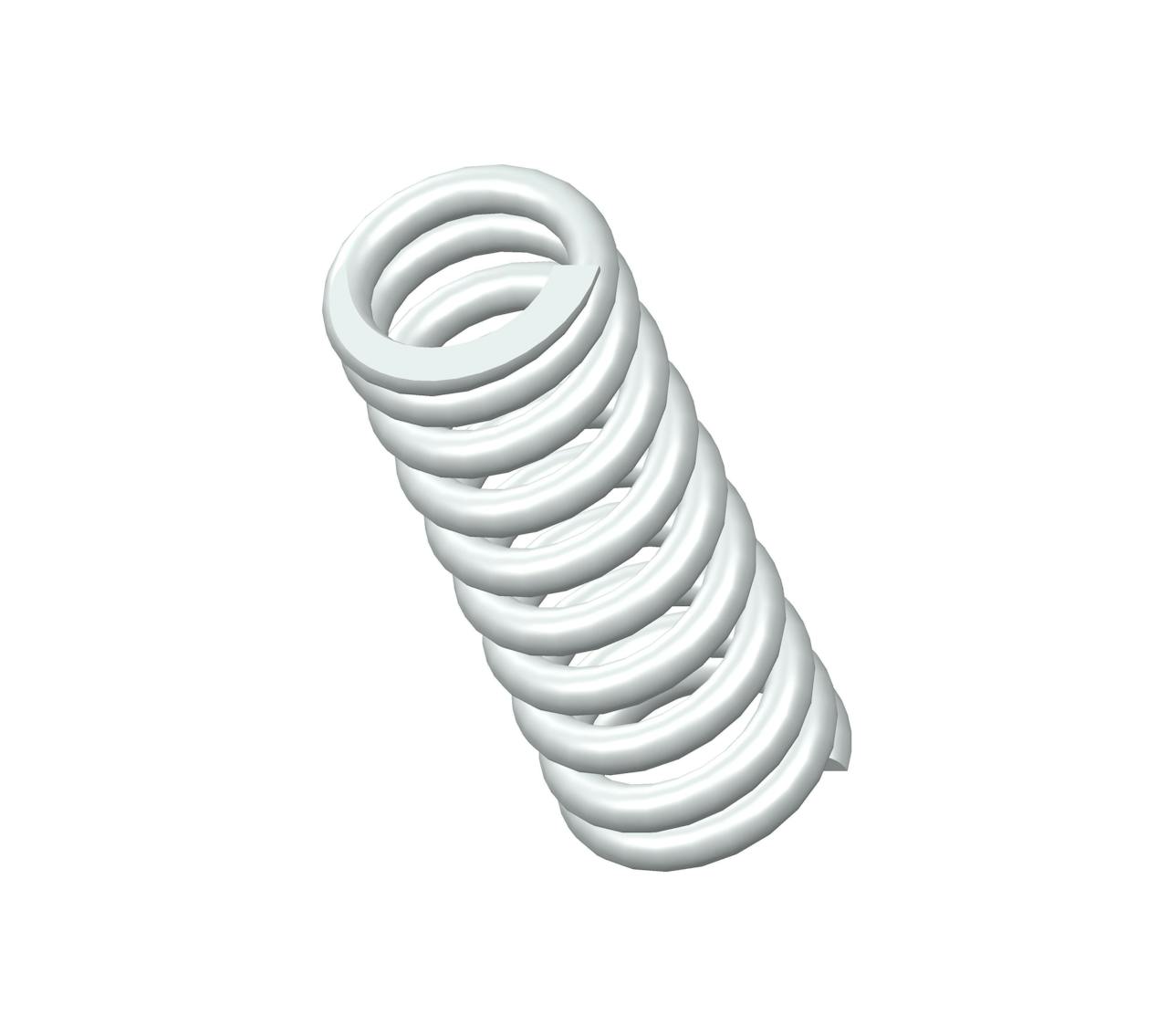

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.158".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-12 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.158 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 43 lbs/in |
| SKU | B-12CS |
| Solid Length | 0.38 in |
| Suggested Max Deflection | 0.19 in |
| Suggested Max Load | 8.1 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-12 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 4.01 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 7.53 N/mm |
| SKU | B-12CS |
| Solid Length | 9.65 mm |
| Suggested Max Deflection | 4.83 mm |
| Suggested Max Load | 36.03 N |
| Total Coils | 10 |
| Wire Diameter | 0.97 mm |
The B-12 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B-12CS compression spring is designed with a free length of 1.28" total of 17 coils, and a rate of 29 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B-12 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B-12CS compression spring is designed with a free length of 1.28" total of 17 coils, and a rate of 29 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B-12 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
