Maryland Precision Spring

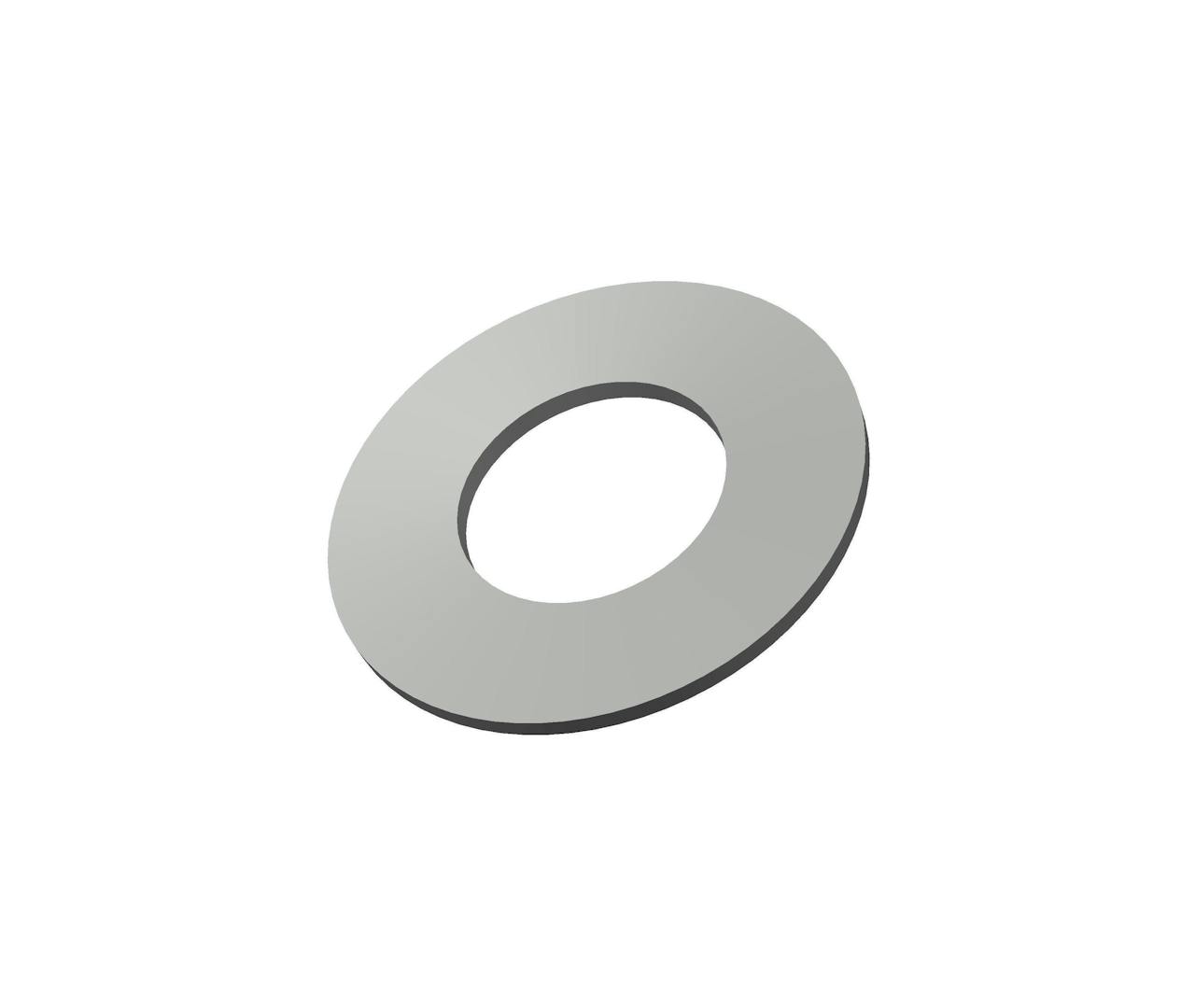

AM-633125 - 1.22 Inch ID 2.48 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 1.22 Inch and an outside diameter of 2.48 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 700 lb
Deflection at 100% Height 0.0695 in
Deflection at 50% Height 0.0348 in
Deflection at 75% Height 0.0521 in
Display Name AM-633125
Finish None
Inside Diameter 1.22 in
Load at 100% Height 2108 lb
Load at 50% Height 1252 lb
Load at 75% Height 1705 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 2.48 in
Outside Height 0.1673 in
SKU AM-633125
T 0.0984 in
h/t 0.707 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 317.46 kg
Deflection at 100% Height 1.77 mm
Deflection at 50% Height 0.88 mm
Deflection at 75% Height 1.32 mm
Display Name AM-633125
Finish None
Inside Diameter 30.99 mm
Load at 100% Height 956.01 kg
Load at 50% Height 567.8 kg
Load at 75% Height 773.24 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 62.99 mm
Outside Height 4.25 mm
SKU AM-633125
T 2.5 mm
h/t 17.96 mm
