Maryland Precision Spring

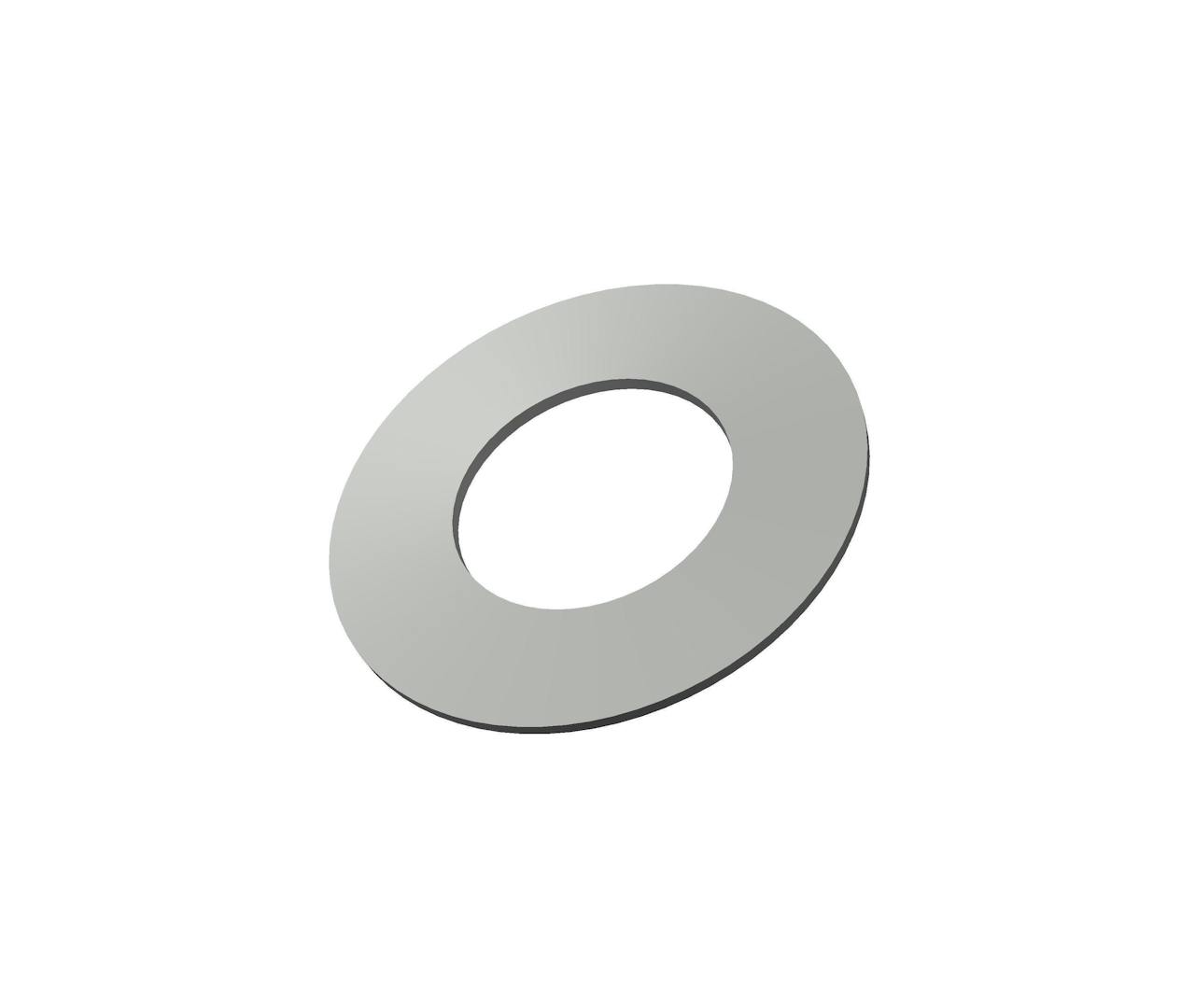

AM-361809 - 0.72 Inch ID 1.4 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.72 Inch and an outside diameter of 1.4 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 107 lb
Deflection at 100% Height 0.0456 in
Deflection at 50% Height 0.0228 in
Deflection at 75% Height 0.0342 in
Display Name AM-361809
Finish None
Inside Diameter 0.72 in
Load at 100% Height 206 lb
Load at 50% Height 167 lb
Load at 75% Height 194 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 1.4 in
Outside Height 0.0807 in
SKU AM-361809
T 0.0354 in
h/t 1.289 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 48.53 kg
Deflection at 100% Height 1.16 mm
Deflection at 50% Height 0.58 mm
Deflection at 75% Height 0.87 mm
Display Name AM-361809
Finish None
Inside Diameter 18.29 mm
Load at 100% Height 93.42 kg
Load at 50% Height 75.74 kg
Load at 75% Height 87.98 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 35.56 mm
Outside Height 2.05 mm
SKU AM-361809
T 0.9 mm
h/t 32.74 mm
