Maryland Precision Spring

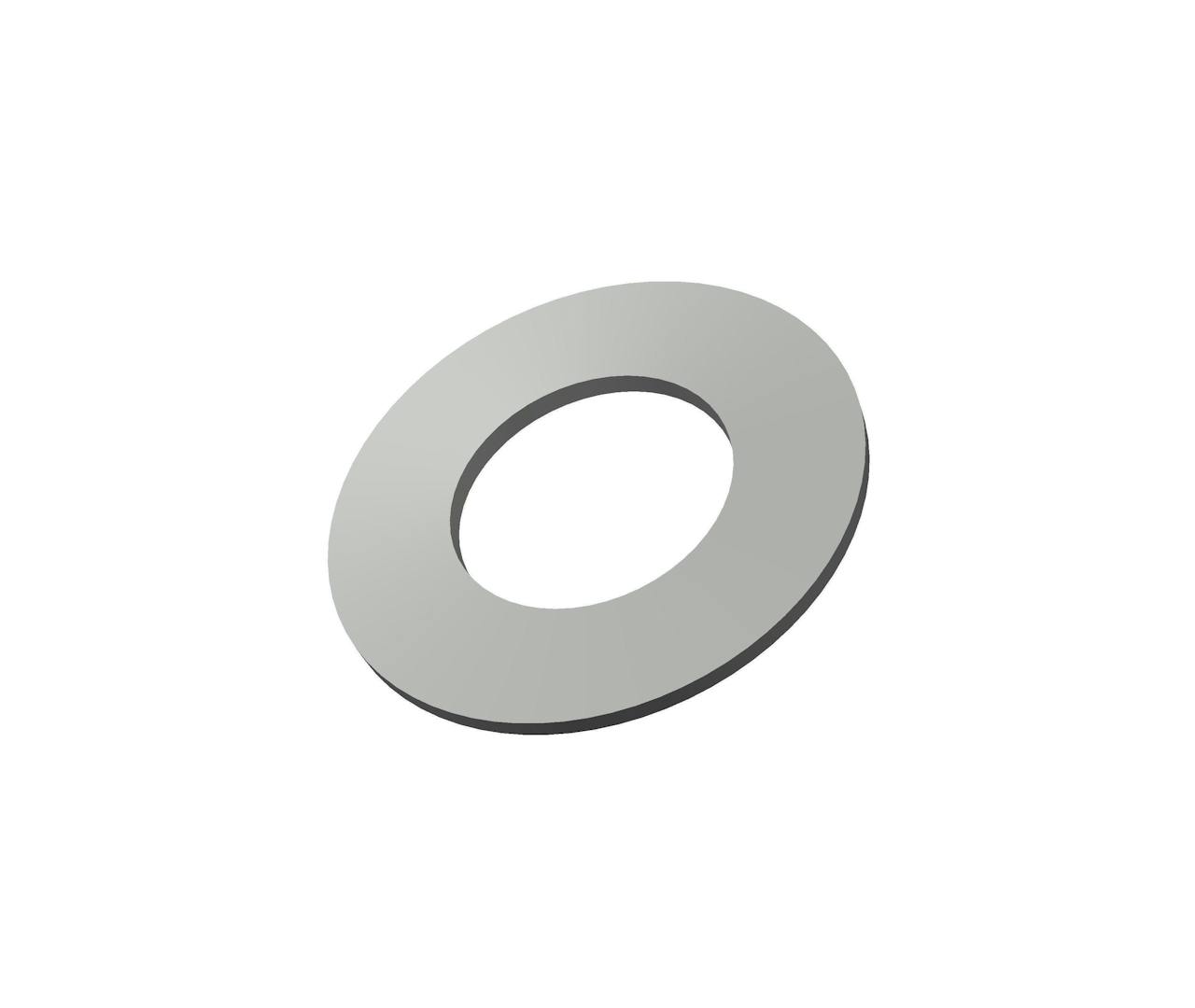

AM-321613 - 0.642 Inch ID 1.24 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.642 Inch and an outside diameter of 1.24 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 188 lb
Deflection at 100% Height 0.0358 in
Deflection at 50% Height 0.0179 in
Deflection at 75% Height 0.0268 in
Display Name AM-321613
Finish None
Inside Diameter 0.642 in
Load at 100% Height 559 lb
Load at 50% Height 335 lb
Load at 75% Height 454 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 1.24 in
Outside Height 0.0846 in
SKU AM-321613
T 0.0492 in
h/t 0.727 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 85.26 kg
Deflection at 100% Height 0.91 mm
Deflection at 50% Height 0.45 mm
Deflection at 75% Height 0.68 mm
Display Name AM-321613
Finish None
Inside Diameter 16.31 mm
Load at 100% Height 253.51 kg
Load at 50% Height 151.93 kg
Load at 75% Height 205.9 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 31.5 mm
Outside Height 2.15 mm
SKU AM-321613
T 1.25 mm
h/t 18.47 mm
