Maryland Precision Spring

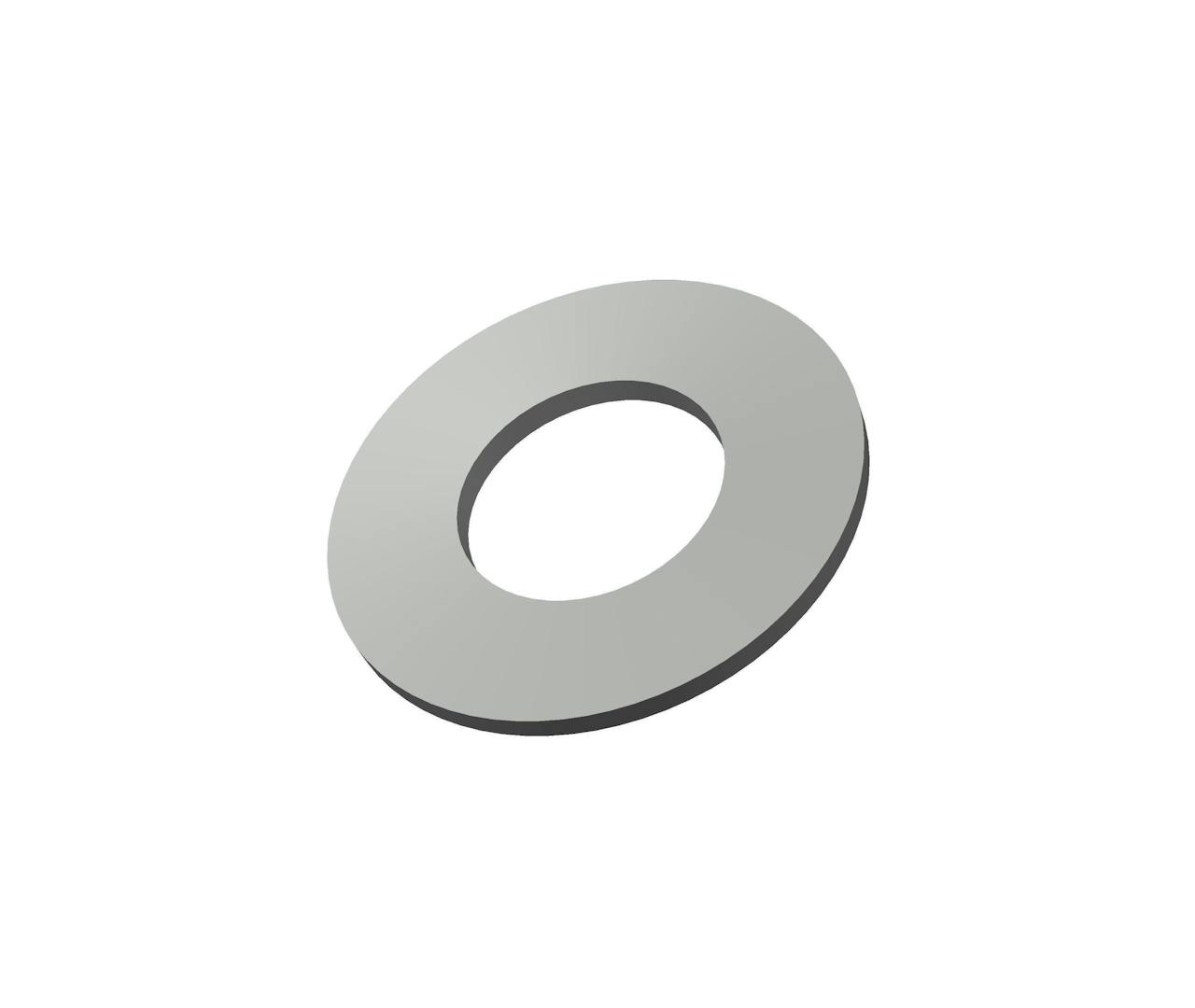

AM-251213 - 0.48 Inch ID 0.984 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.48 Inch and an outside diameter of 0.984 Inch.

Unit System
Specs (in standard)

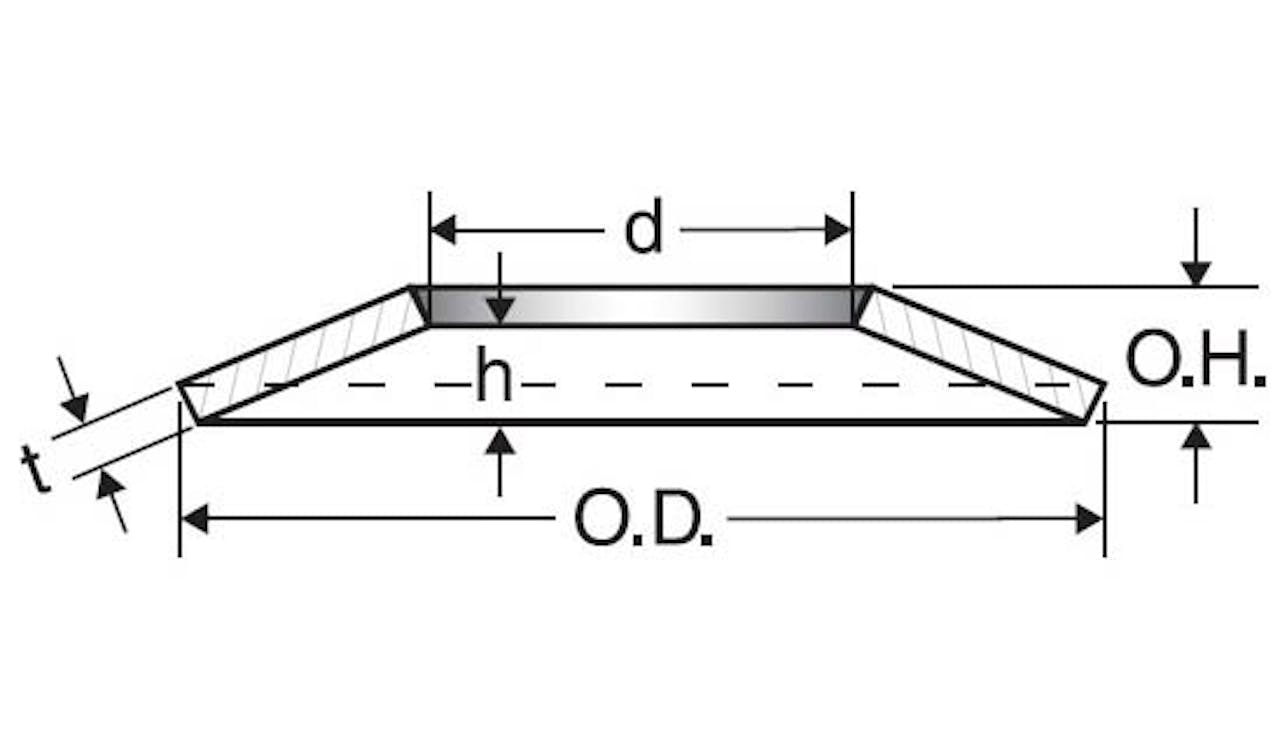

Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 204 lb
Deflection at 100% Height 0.0279 in
Deflection at 50% Height 0.014 in
Deflection at 75% Height 0.0209 in
Display Name AM-251213
Finish None
Inside Diameter 0.48 in
Load at 100% Height 675 lb
Load at 50% Height 378 lb
Load at 75% Height 532 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 0.984 in
Outside Height 0.0768 in
SKU AM-251213
T 0.0492 in
h/t 0.568 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 92.52 kg
Deflection at 100% Height 0.71 mm
Deflection at 50% Height 0.36 mm
Deflection at 75% Height 0.53 mm
Display Name AM-251213
Finish None
Inside Diameter 12.19 mm
Load at 100% Height 306.12 kg
Load at 50% Height 171.43 kg
Load at 75% Height 241.27 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 24.99 mm
Outside Height 1.95 mm
SKU AM-251213
T 1.25 mm
h/t 14.43 mm
