Maryland Precision Spring

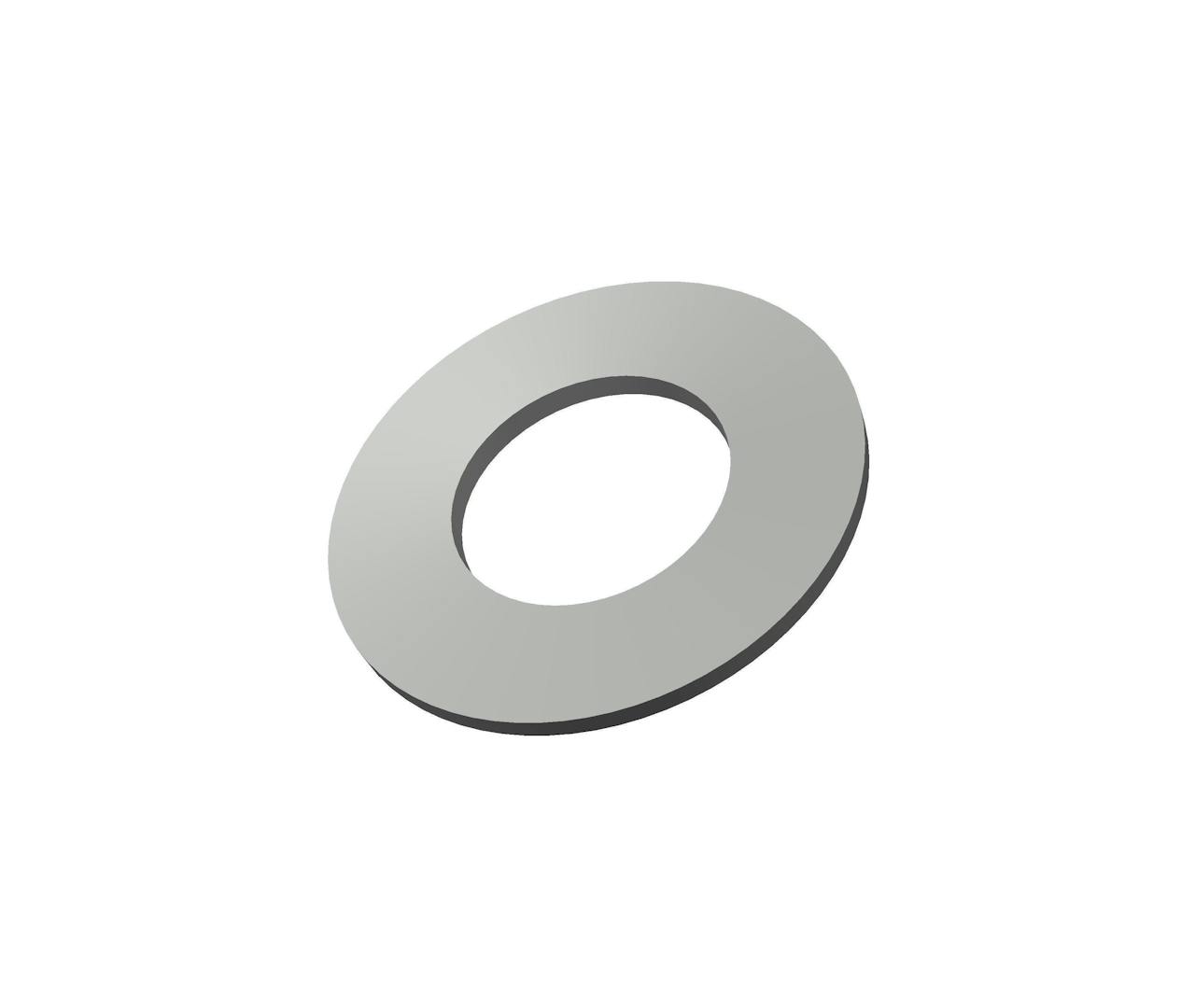

AM-25012712 - 5 Inch ID 9.84 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 5 Inch and an outside diameter of 9.84 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 20008 lb
Deflection at 100% Height 0.3212 in
Deflection at 50% Height 0.1606 in
Deflection at 75% Height 0.2409 in
Display Name AM-25012712
Finish None
Inside Diameter 5 in
Load at 100% Height 59503 lb
Load at 50% Height 35617 lb
Load at 75% Height 48293 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 9.84 in
Outside Height 0.7598 in
SKU AM-25012712
T 0.443 in
h/t 0.725 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 9073.92 kg
Deflection at 100% Height 8.16 mm
Deflection at 50% Height 4.08 mm
Deflection at 75% Height 6.12 mm
Display Name AM-25012712
Finish None
Inside Diameter 127 mm
Load at 100% Height 26985.49 kg
Load at 50% Height 16152.83 kg
Load at 75% Height 21901.59 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 249.94 mm
Outside Height 19.3 mm
SKU AM-25012712
T 11.25 mm
h/t 18.42 mm
